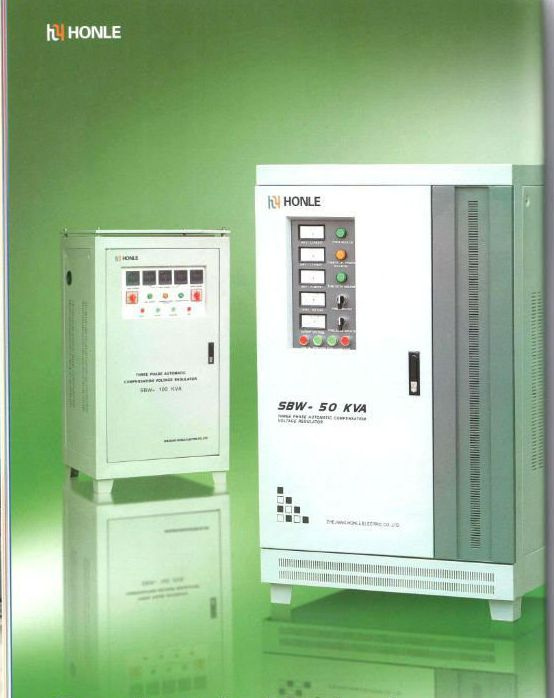

Dbw/SBW Automatic 15kVA Automatic Voltage Stabilizer

Dbw/SBW Automatic 15kVA Automatic Voltage Stabilizer
Price: US $ 845.3-2014.2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: DBW/SBW
Delivery Detail: 10~15days After Received Deposit
Model Number: 10-2000kVA
Front Panel: ODM/OEM
Input Voltage Range: Customer Made
Current Type: AC
Phase: Three Phase
Usage: DBW
Frequency: 50Hz/60Hz
Brand: Honle

Product Description

Specifications:

DBW/SBW automatic voltage stabilizer
1:rate capacity :10-2000KVA
2:Input: 380+/-30%
3:output: phase voltage: 220V/380v

Application :

post office, store,elevator, hospital,school, publishing house,
factories of large and middle-scale industrial and mining corp


Technical Index



Input voltageThree-phase four-line system phase voltage:220±20%
line voltage:380±20%,or phase voltage:220±30%
line voltage:380±30%(can be selected.Please specify when ordering)
Single-phase:220±20% or 220±30%(can be selected.Please specify when ordering.)
Output voltagePhase voltage:220V Single-phase:220V Line voltage:380V
Output voltage accuracy2-5%(can be adjusted)Frequency:50HZ/60HZ
Efficiency≥98%(Power grade is over 50KVA)
Ambient temperature-10~+40°C
Insulation resistance≥2MΩ
Electric intensityThe voltage for electrical strength and power frequency sinusoidal is 2000V without breakdown and flash over when lasts 1minute
Overload CapacityIt can last 1 minute at the rated current of two times
Wave form DistortionNo additional waveform distortion
Protective functionit offers the protections against over voltage,over current,phase shortage and phase-sequence(The single-phase offers no protection against the phase shortage and phase-sequence)and mechanical failure
Response speed≤1.5s(in the condition that the external voltage changes is 10%)



Specitications and model





Specification and ModelOutput current(A)    Over Dimensions (cm)      weight   (kg)      Package size(CM)
     DBW-10KVA            45         50*65*135      270    60*80*160
     DBW-20KVA            91         50*65*135      283    60*80*160
     DBW-30KVA           136         50*70*140      310    60*85*165
     DBW-50KVA           227         62*80*140      360    70*85*165
     DBW-70KVA           318         62*85*160      420    76*100*180
     DBW-80KVA          364         68*92*162      480    85*115*190
     DBW-100KVA          455         68*92*162      490    85*115*190
     SBW-30KVA          45         57*70*125      300    69*85*151
     SBW-50KVA          76         57*70*125      315    69*85*151
     SBW-80KVA         121         62*80*144      460    75*95*161
     SBW-100KVA         152         62*80*144      480    75*95*161
     SBW-120KVA         182         62*80*144      482    75*95*161
     SBW-150KVA         227         68*92*162      650    83*107*183
     SBW-200KVA         303         68*92*162      680    83*107*183
     SBW-300KVA         455         90*110*185     1040    110*138*220
     SBW-350KVA         530         90*110*185     1080    110*138*220
     SBW-400KVA         606         90*110*185     1106    110*138*220
     SBW-450KVA         681         90*110*185     1113    110*138*220
     SBW-50KVA         758   90*110*185/2 cabinet     1500

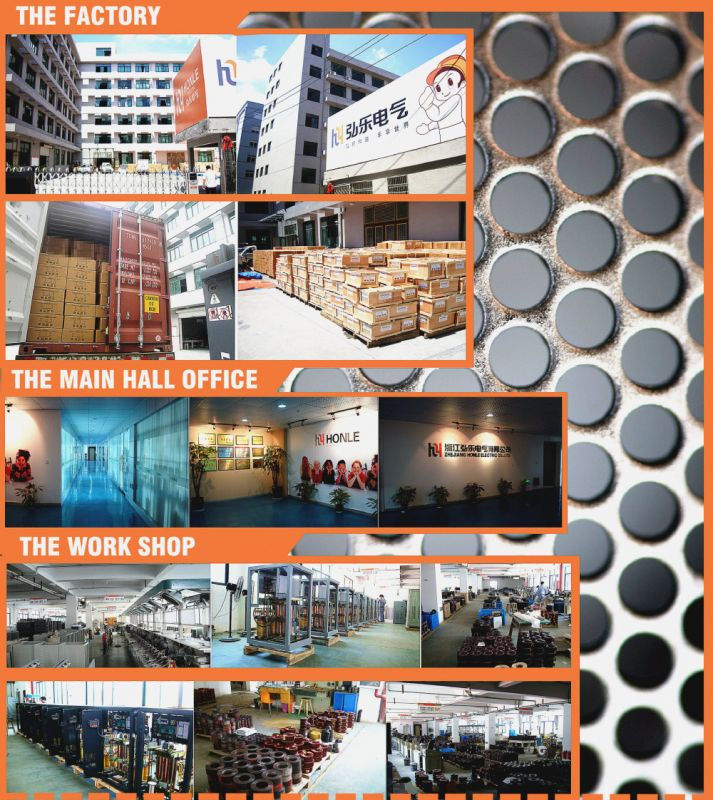

Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.

Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.

The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
