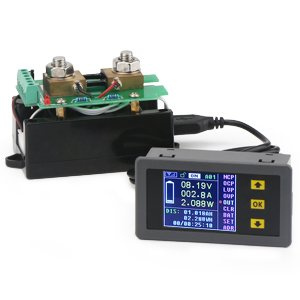

DC 0-120V 0-100A Digital Multimeter Charge-Discharge Battery Tester

Name: DC 0-120V 0-100A Digital Multimeter Charge-Discharge Battery Tester
Brand: all-electronics-online.com
SKU: 731558562
Availability: InStock
Rating: 4.6 (99 reviews)

Price:	US $ 13.5-14/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Battery Pack Series:	2-4s
Max Continuous Discharge Current:	10A
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

MULTIMETER: this multifunctional meter can measure DC voltage, current, power, charging and discharging capacity, watt hour, time, and other physical quantities.
MEASURING RANGE: digital multimeter can measure voltage range DC 0-120V, current range 0-100A, power range 0-200KW, capacity range 0-2000KAh, watt range 0-400KWh, time range 0-999 days.
MEMORY FUNCTION: battery tester can automatically save the parameters when the display power off; if the monitor module also needs to power off, press OK button can save the parameters.
SAFE PROTECTION: parameters can be set overcurrent protection, overvoltage protection, undervoltage protection, limit protection, works with equipped relay. (Note: we already update the instruction, please kindly download from Product information-Technical Specification.)
BIDIRECTIONAL DETECTION: it's bidirectional, can detect and display current of charging and discharging. Note: it can not detect current of two directions at the same time.

Product Description

Linksun has been working on multi-functional meter for many years. We select the best quailty material for every unit and focus on every manufacturing step.

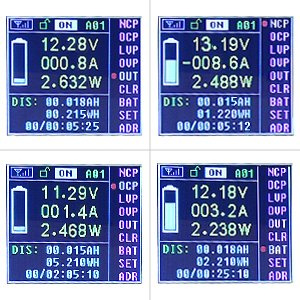

Designed with color LCD display, digital multimeter will show you a clear and accurate reading of real-time voltage, current, power, capacity, watt/hour, electric energy and time.

Measuring Voltage Range: DC0-120V
Measuring Current Range: 0-100A
Measuring Power Range: 0-200KW
Measuring Capacity Range: 0-2000KAh
Measuring Watt/hour Range: 0-400KWh
Measuring Time Range: 0-999 days

User-friendly Construction

Large and clear LCD display, with 3 keys, easy to do any adjustment.

Detecting charging&discharging moving status, dual-directional detection.
Power off memory function & Clear parameter function.
High efficiency & accuracy and allow users to set capacity.

Simple Operation
Just connect a power to this testing module and add appliance to the output side. Insert USB to testing module then you can run this meter. It will help you detect the working situation of your appliance.Press UP&DOWN and OK key to adjust different mode.

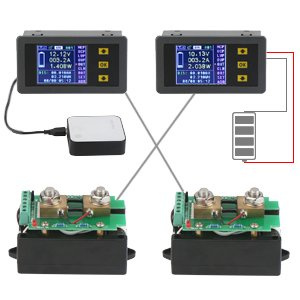

Work like a wireless meter

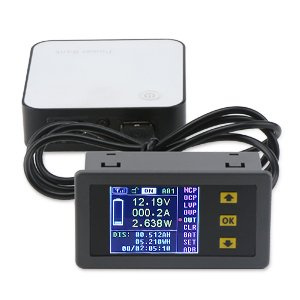

This meter can be powered by mobile power bank through USB. In that case, this meter will not have to place closer to the test module.

Two meter can work together when you set appropriate channel. In this way, you can better detect and control your working appliance.

Product information

Size:120V 100A

Technical Details

Part Number	200193
Item Weight	8 ounces
Package Dimensions	5.6 x 4.6 x 3.6 inches
Size	120V 100A
Batteries Included?	No
Batteries Required?	No

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
