Changzhou Manorshi Electronics Co., Ltd. >> DC 12mm Buzzer Tmb12A05 5V Integrated Circuits for Electronic Toys

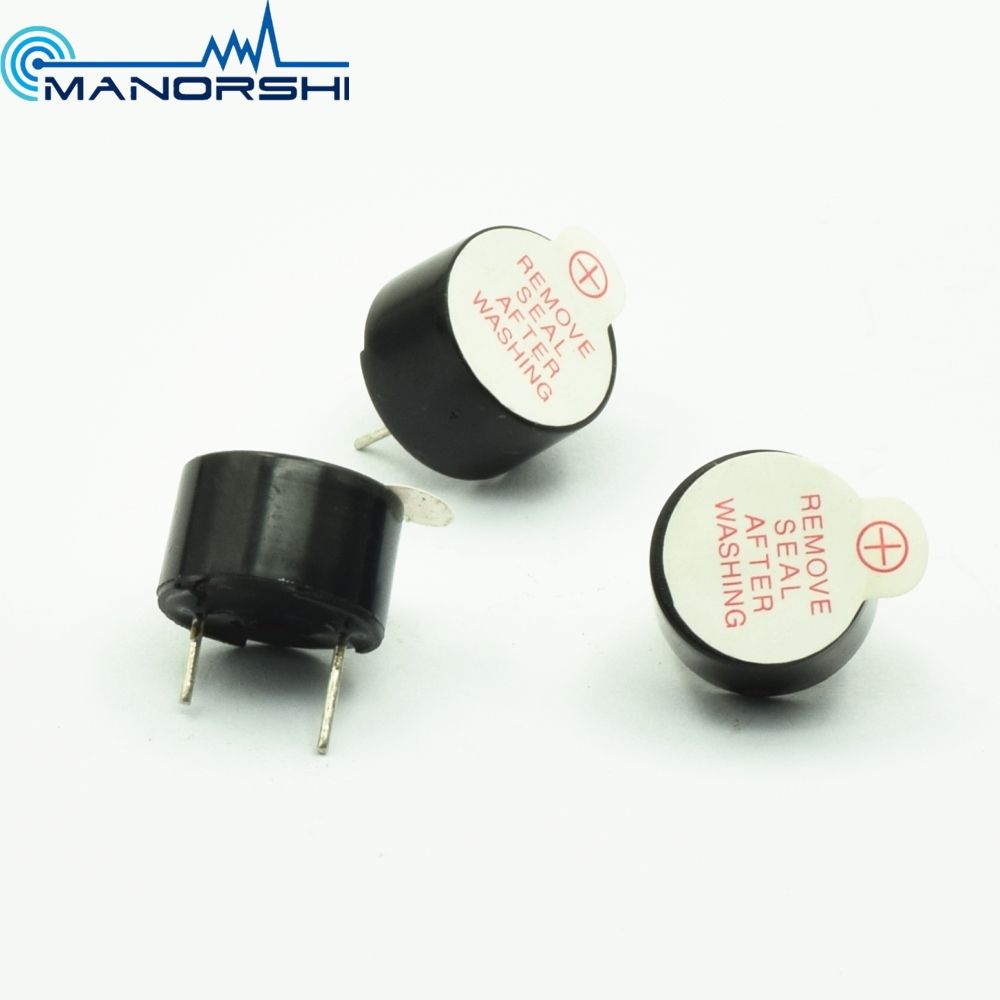

DC 12mm Buzzer Tmb12A05 5V Integrated Circuits for Electronic Toys

DC 12mm Buzzer Tmb12A05 5V Integrated Circuits for Electronic Toys
Price: US $ 0.1-0.8/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: MSES12A
Voltage: 1.5~12V
Spl: 80dB/82dB/85dB
Dimension: 12mm
Frequency: 2300Hz
Weight: 2g
Color: Black
Price: Competitive
RoHS: Yes
Application: Broad
Category: Buzzer
Transmission Mode: Air-conduction
Transducer Principle: Magnetic Earphone
Style: Mini
Cone: Plastic Frame
Certification: RoHS
Brand: Manorshi

Product Description

dc 12mm buzzer tmb12a05 5v integrated circuits for electronic toys

Specification

TYPE (UNIT)MSES12A23P01MSES12A23P03MSES12A23P05MSES12A23P12
Min. Sound Output at 10cm (dB)80828585
Rated Voltage VDC1.53512
Operating Voltage VDC1.3~22~53~78~15
Resonant Frequency (Hz)2300+/-4002300+/-4002300+/-3002300+/-300
Max. Current Consumption (mA)25303030
Operating Temperature-20 ~ +70-20 ~ +70-20??+70-20 ~ +70
Storage Temperature-30 ~ +80-30 ~ +80-30 ~ +80-30 ~ +80
Weight (g)2222

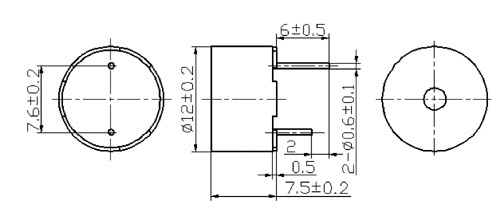

Dimension




Application



Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.

Trade show & Certification



FAQ
1.What's your MOQ?
MOQ depends of different series of products, pls contact with us.
2.Do you support OEM and ODM services?
Yes, we can customize products according to the drawing.
3.How about freight fee?
We cooperate with different express companies, enjoy the lowest discount.
4.Do you support after sales service?
The professional after-sales service team will solve all problems for you.

Contact us

   Tel:86-519-89185720
    Mobile :8615961152360
   Website:www.buzzer-supplier.com




Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
