| Prod Model: |
CE030 |
| Dimension: |
64.2mm*34.8mm*18.5mm. |
| Timing Range(Settable): |
0.1s to 999 Minutes |
| Signal Source: |
10~16V |
| Output Capacity: |
Can Control The Load Within DC 30V 3A or AC 220V 3 |
| Static Current: |
20mA |
| Working Current: |
50mA |
| Working Temperature: |
-40-85°c |
Product Description

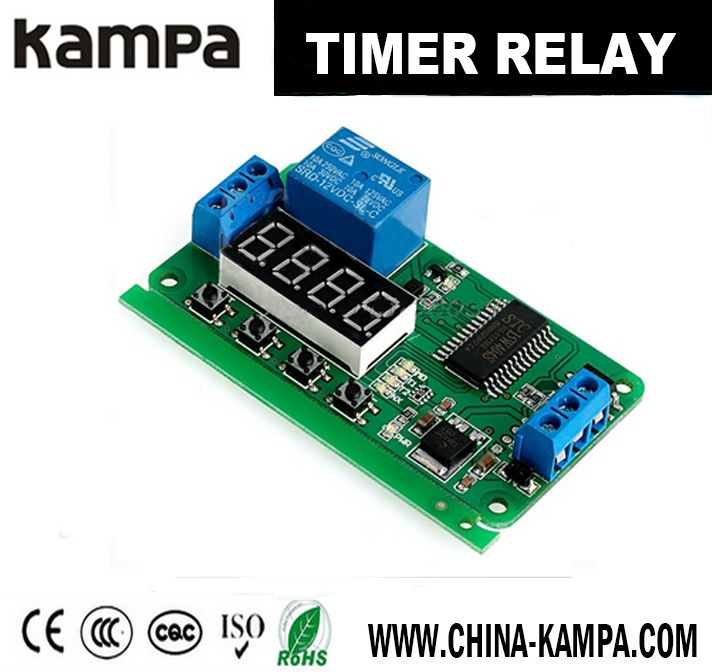

CE030 multifunction relay control module,designed specifically for a variety of users with different needs.the use of micro-controller as the primary control unit,preset 18 kinds of functions,and it based on users needs,customize or add other specific functions.
*Genuine high double-sided PCB board,cloth board to consider a comprehensive,stable performance,it can be widely used in variety of power control type applicance.
Typica; application:Home lighting systerm/Remote control switch/Remove locking/Smart home/Homw automation/DC12V LED lighting/Flurescent lemp.
- 12V DC Motor/Fluorescent lamp/Automotive electronics/PLC/Industrial automation and control
- New upgrade to version 3.0 (Single-chip solution), the module functions by eight kinds before, increased to 18 kinds, to meet the needs of more applications;

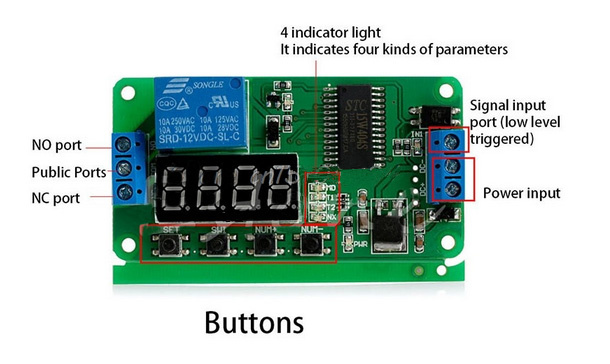

- Low level triggered, opto-isolated inputs
- increase supply anti-reverse feature, power will not damage the module wrong;
- Uses top-quality high-voltage power supply modules, discrete power supply before replacing the system more stable and reliable;
- Increased 0.1 seconds timing, timing accuracy from the previous 0.1 seconds, upgrade to 0.01 seconds;
- Increase in automatic power saving feature, users can independently set.
- DC:5V/12V
- Size:(L*W) 7.60*4.50cm/2.99"*1.77"(Approx.)
- Quantity:1Pc
- Tips: Function 1-8 on power-up self-start function 9-18 require low pulse signal (low duration is shorter than 20ms, hereinafter the same) trigger the start.
- Function 1:
Timing Pick: After power, time delay relay pull T1, T1 between 0.1 seconds -270 hours adjustable, CH1 interface to a low level pulse signal, repeat the above functions; - Function 2:
Timing off: when the power relay, time delay relay disconnected T1, T1 between 0.1 seconds -270 hours adjustable, CH1 interface to a low level pulse signal, repeat the above functions; - Function 3:
Timing pull off again: After power relay to not pull, the delay time T1 reaches the relay is energized; pull the relay off after T2 arrival time, delay time T1 and T2 in 0.1 seconds -270 hours between adjustable, CH1 interface to a
low pulse signal, repeat the above functions; - Function 4:
Timing and then pull off: After power, immediately pull the relay, the relay off delay time T1 after arrival; T2 arrive after disconnecting time relay, -270 hour in 0.1 seconds delay time between T1 and T2 adjustable to CH1 interface a low pulse signal, repeat the above functions; - Function 5:
Infinite loop timing mode 1: After power relay to not pull, after the delay time T1 reaches the relay is energized; pull the relay off after time T2 arrives, and then repeat the above condition, the delay time T1 and T2 at 0.1 adjustable between second -270 hours, giving a low level pulse signal CH1 interface, you can restart the above functions; - Function 6:
Infinite loop timing mode 2: After power, immediately pull the relay delay time T1 reaches the relay off; arrive after disconnecting time T2 relay, and then repeat the above condition, the delay time T1 and T2 in 0.1 seconds adjustable between -270 hours, giving a low level pulse signal CH1 interface, you can restart the above functions; - Function 7:
Finite loop timing mode 1: 5 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times to CH1 interface a low pulse signal, the above functions can be re-started; - Function 8:
Finite loop timing mode 2: 6, on the basis of the function, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times to CH1 interface a low pulse signal, the above functions can be re-started; - Function 9:
Latching relay modes: CH1 interface to relay a low level pulse signal, relay, give a low pulse signal relay disconnected. - Function 10:
Trigger relay modes: CH1 interface to a low signal relay, relay, low disappear, relay disconnected. - Function 11:
Pull the trigger timing: After power relay does not act, a low-level interface to CH1 pulse signal, the delay time relay pull T1, T1 between 0.1 seconds -270 hours adjustable, repeating a low level interface to CH1 pulse signal, repeat the above function; - Function 12:
Trigger timing off: After power relay does not act, a low-level interface to CH1 pulse signal relay, the relay off delay time T1, T1 between 0.1 seconds -270 hours adjustable, repeat to CH1 interface a low pulse signal, repeat the above functions; - Function 13:
Pull the trigger timing then disconnect: After power relay does not act, CH1 interface to a low level pulse signal, the delay time T1 reaches the relay is energized; pull the relay off after T2 arrival time, delay time T1 and T2 between 0.1 seconds -270 hours adjustable, repeat CH1 interface to a low level pulse signal, repeat the above functions; - Function 14:
Disconnect and then pull the trigger timing: After power relay does not act, a low-level interface to CH1 pulse signal, immediately pull the relay, the relay off delay time T1 after arrival; T2 arrive after disconnecting time relay, delay time between T1 and T2 in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a low level pulse signal, repeat the above functions; - Function 15:
Infinite loop timing mode 1: After power relay does not operate to a low level pulse signal CH1 interface, the delay time T1 reaches the relay is energized; pull off the relay arrival time T2, and then repeat the above condition, the extension when the time between T1 and T2 in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a low level pulse signal, the above functions can be re-started; - Function 16:
Infinite loop timing mode 2: After power relay does not act, a low-level interface to CH1 pulse signal, immediately pull the relay, the relay off delay time T1 after arrival; break time T2 after reaching relay, then repeat the above condition, the delay time between T1 and T2 in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a low level pulse signal, the above functions can be re-started; - Function 17:
Finite loop timing mode 1: 15 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeating to CH1 interface a low pulse signal, the above functions can be re-started; - Function 18:
Finite loop timing mode 2: 16 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeating to CH1 interface a low pulse signal, the above functions can be re-started;
- Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
- And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you
