| Prod Model: |
Power Star Series |
| Capacity: |
8kw/10kw/12kw |
| Cooling: |
Automatically Controlled Cooling Fan |
| AC Regulation: |
Thd <3% |
| Fuse: |
Built in |
| Output Frequency: |
50/60Hz |
| Power Source: |
Solar Power |
| Application: |
Air Conditioner |
Product Description

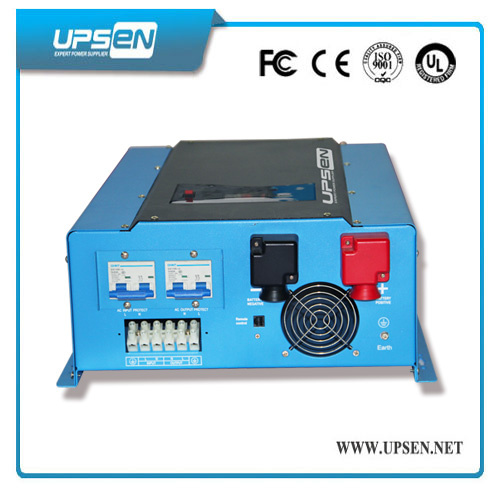

DC 12V to AC 220V power pure sine wave inverter
Model:Pure Sine Wave Inverter Charger Power Star Series PS8Kw-12Kw (1ph in/1ph out)
Applications:
UPSEN Power Star Inverter ,can be used with different domestic appliance like TV,fan,air conditioner,cooker,mirco-wave oven,etc.
Key Features:
1:LCD status display available
2:3-step intelligent battery charging
3:RS232 communication port optional
4:Superior performance from CPU control technology
5:Generator compatibly and external battery connection achievable
6:Solar Energy,City power,DC to AC can transfer automatically
7:High surge capacity for products that require more power to start
8:input AC voltage range selectable,for different kinds of loads
9:An intelligent solar charge controller and battery management system
10:Delay before transfer, extra protections for loads under generator mode
Technical Specification
| Power Star Series |
| Model No. | PS8K | PS10K | PS12K |
| Nominal Power | 8KW | 10KW | 12KW |
| AC Input |
| Phase & Waveform | Single Phase & Pure Sine Wave |
| Voltage | 220/230/240VAC |
| Acceptable Voltage | 154-273VAC |
| Line Low Transfer | 154V |
| Line Low Return | 164V |
| Line high Transfer | 273V |
| Line high Return | 263V |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Line Low Transfer | 40Hz |
| Line high Transfer | 80Hz |
| AC Output |
| Phase & Waveform | Single Phase & Pure Sine Wave(bypass mode sync to input) |
| Voltage | 220/230/240VAC (Same as Input on bypass mode) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Crest Power | 3 times of rating power |
| Short Circuit Protection | Yes,shutdown |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 48V |
| Minimum Start Voltage | 40V |
| Low Battery Alarm | 44V |
| Low Battery Transfer | 40V |
| High Voltage Alarm | 64V |
| Max Charging Current | 75A | 85A | 100A |
| Over Charge Voltage | 62.8V |
| Transfer Efficiency |
| Line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 75 Watts |
| Indicators |
| 4-LED Display | Charge, Line, Inverter, Fault |
| LCD Display | Input/Output Voltage, Frequency, Battery Voltage, Load, Tempreture, Charge Current,Fault |
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
|
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS232/RJ11(Optional) |
| Enviromental |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 56 | 64 | 68 |
| Dimension L*W*H(mm) | 549*450*201mm | 584*450*201mm |
| *Specification is subject to change without prior notice. |
