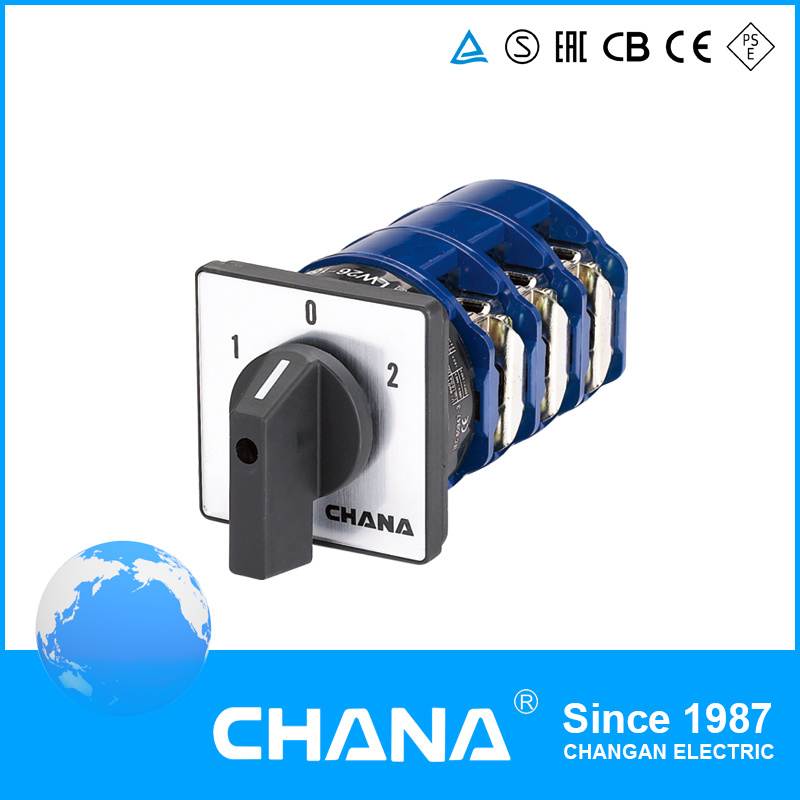

DC 240V 125A Motor Rotary Switch AC 50Hz Changeover Switch

Prod Model:	LW26-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	3 Phase
Current:	125A
Approval:	Ce
Type Of Handle:	10 Kinds
Rotary Number:	Single Button
Usage:	Electrical Appliance
Standard:	Standard
Structure:	Self-Locking
Operation:	Open Type
Certification:	CE
Condition:	New

Product Description

LW26-125 Rotary Switch

1. Specification

The LW26 series rotary switch mainly applies to 440V and below, AC 50Hz or 240V and below DC circuits. For breaking and closing, change-over of circuits under unfrequently manual operation. And the typical application are: Control switch of 3 phase motors, control switch of switch gear, control switch of instruments, and change-over switch of machinery and welding machine.
The series comply with the IEC60947-3, IEC60947-5-1
The LW26 series have 8 current ratings: 10A, 20A, 25A, 32A, 63A, 125A, 160A and 315A
The LW26 series rotary switch were designed for multiple functions, wide variety of applications
The LW26-10, LW26-25, and LW26-32F have finger protection terminals
Both of them are applicable in circuits when an physical control is required
We can equip protective box for 20A, 25A, 32A and 63A

2. Working Conditions

Ambient temperature do not exceed 40 degree, and the average temperature, measured over a period
Of 24 hours, do not exceed 35 degree.
Ambient temperature should not be below - 25 degree
Should Not be installed over 2000m above sea level
The humidity should not exceed 50% when the ambient temperature is 40 degree and higher
Humidty is allowed for lower temperature

3. Installation Conditions

A clean environments is required
Please follow our manual

4. Mechanical Life

Mechanical life without load: 0.1x10000000 times, operation frequency is 120times/ hour
Mechanical life with load: 0.03 x 10000000 times, operation frequency is 120 times/ hour

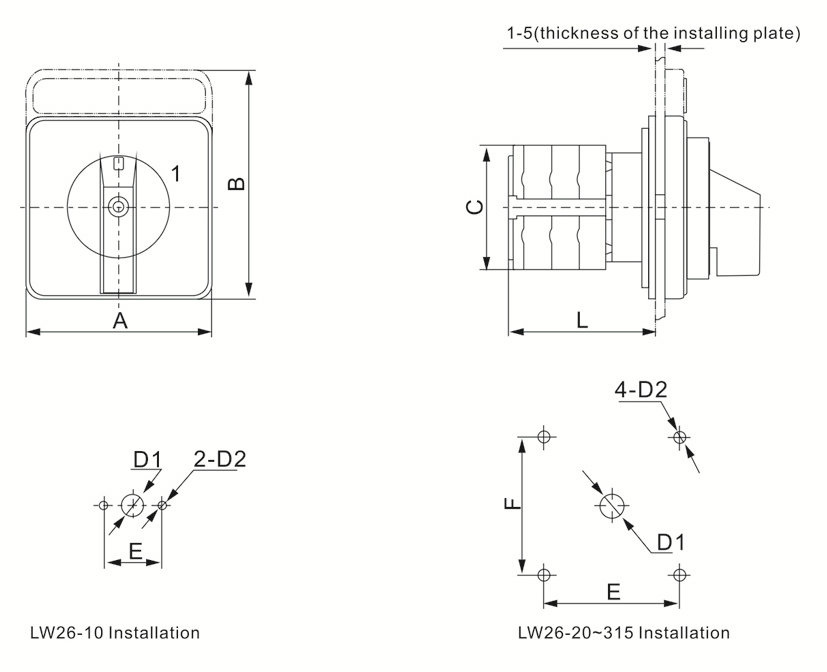

5. Dimension



Description	Escutcheon plate	Dimensions (mm)				Installation (mm)
		A	B	C	L	E	F	D1	D2
LW26-125	M3 square	88	88	84	35+26.5n	68	68	Φ13	Φ6

6. Certificate



7. Company Profile

Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker, Contactor, Relay, Switch, Solar Inverter etc..

1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.
