DC 24V to DC 48V 600W Step-up DC Power Converter (QW-DC600W2448)

Name: DC 24V to DC 48V 600W Step-up DC Power Converter (QW-DC600W2448)
Brand: all-electronics-online.com
SKU: 719396152
Availability: InStock
Rating: 4.6 (20 reviews)

Price:	US $ 23.8-28/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW-DC600W2448
Output Power:	600W
Input Voltage:	DC20V-DC32V
Type:	DC24V to DC48V
Output DC Voltage:	DC48V
Output Current:	10A
Efficiency:	91-95%
Modulation System:	PWM
Levels Of Protection:	IP40
Working Temperature:	-10 ~ +55
Key Word:	DC to DC Converter
Application:	Power
Phase:	Single
Coil:	Core-type Transformer
Winding Type:	Auto-transformer

Product Description

DC 24V to DC 48V 600W Step-up DC Power Converter(QW-DC600W2448)

Description
The power supply adopts pulse width modulation (PWM) method, with no the isolation switch. It has high conversion efficiency, stable performance and perfect protection function. The characteristics is light weight, it is widely used in automobiles, LED, industrial and other fields.

Application
Power converter is mainly used for
1) electronic alarm series
2)security monitoring system
3)anti-theft alarm system
4)electronic door locks and attendance machine
5)the language repeater
6)keyboard
7)speakers
8)massage equipment, etc.

Products comply with the latest Europe energy efficiency standards, specially provide power for your products.
This product is apply for the BOOST the isolation switch regulated voltage power supply, the rated input voltage can be is 12 vdc /24vdc/36vdc/48vdc, also output voltage is can be 12 vdc /24vdc/36vdc/48vdc

Protection
DC power converter, good electromagnetic compatibility, high efficiency, it has over voltage protection, over current protection, over load protection, Input reverse connection Protection.

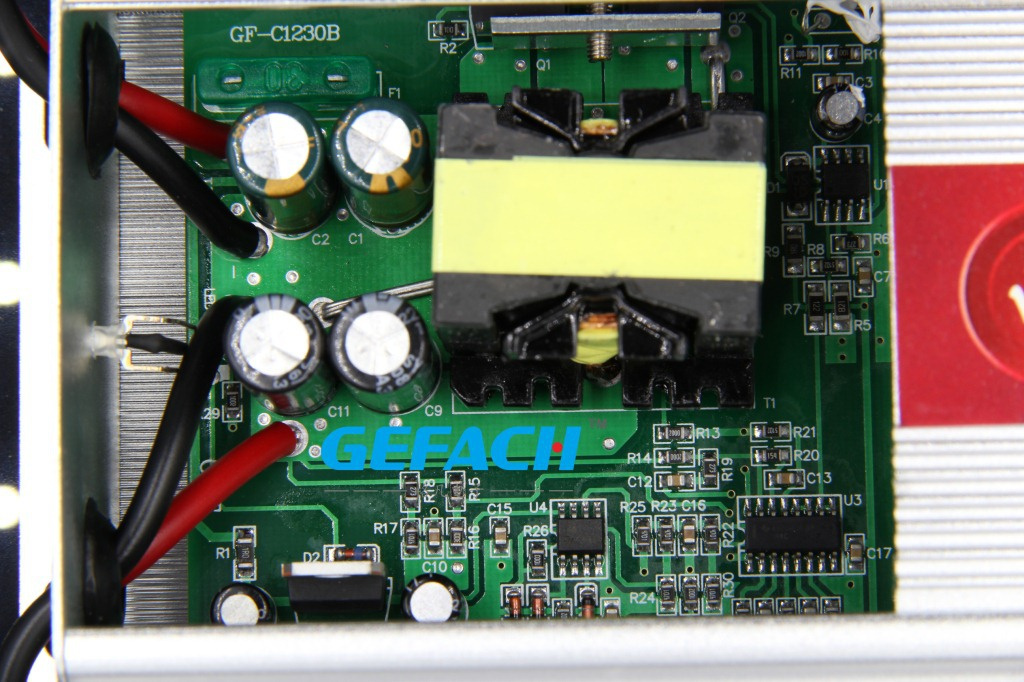

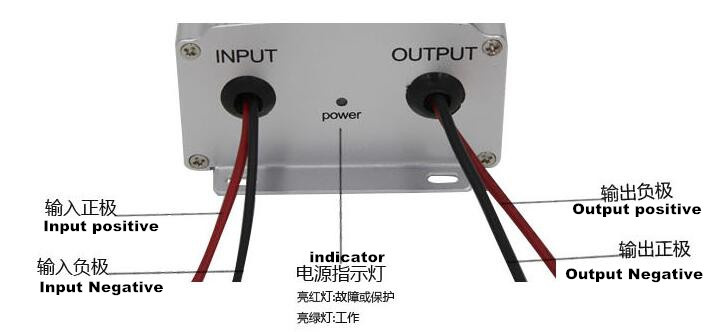

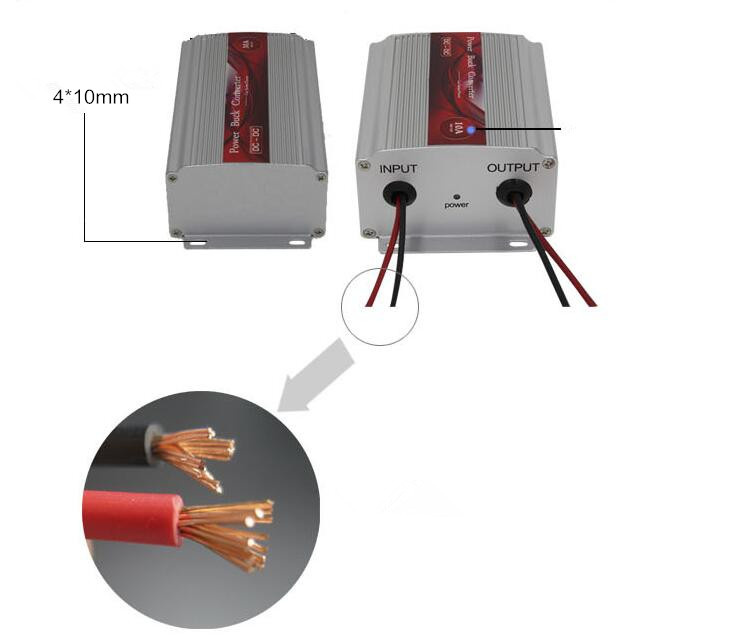

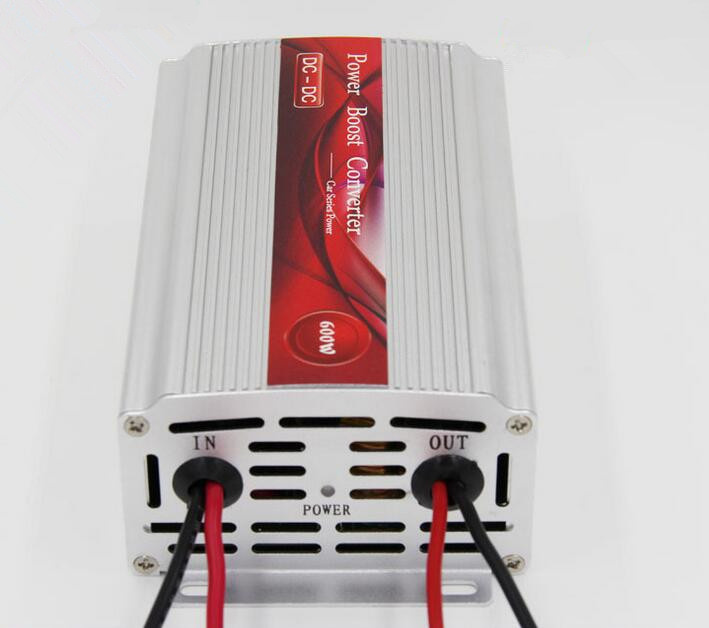

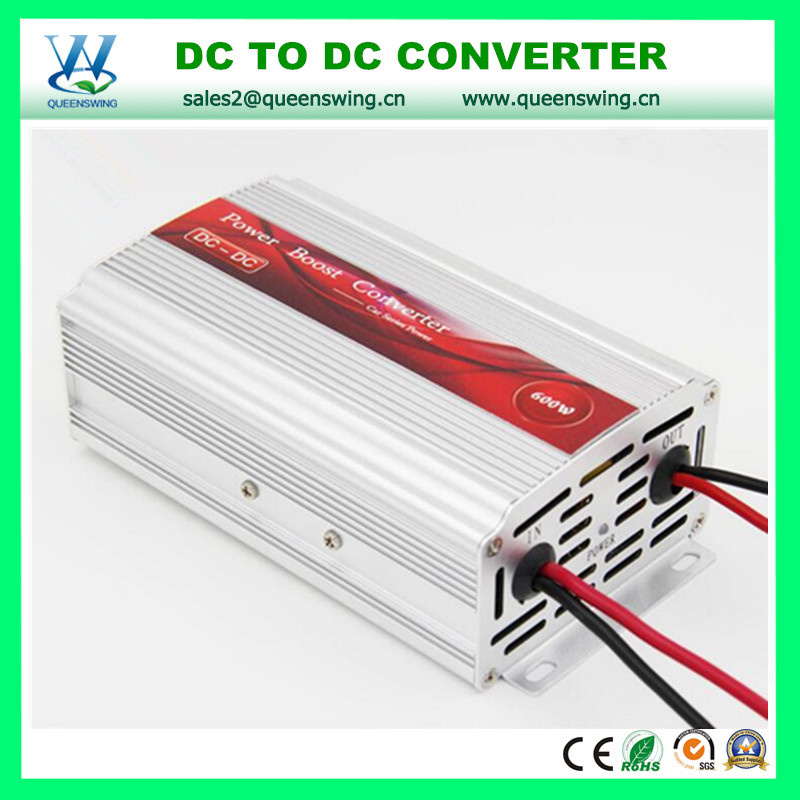

Product Pictures

Specification

Model	QW-DC250W	QW-DC600W1224	QW-DC600W1248	QW-DC600W2448
Input Voltage	DC10V-DC16V	DC10V-DC16V	DC10V-DC16V	DC20V-DC32V
Output Voltage	DC24V	DC24V	DC48V	DC48V
Output Current	10A	25A	12.5A	12.5A
Output Power	250W	600W	600W	600W
Peak Power	280W	750W	750W	750W
Static current	<40mA	<120mA	<120mA	<120mA
Efficiency	95%	91-95%	91-95%	91-95%
Work temperature	-25 ~ +55	-25 ~ +55	-25 ~ +55	-25 ~ +55
levels of protection	IP40	IP40	IP40	IP40
Protection	Low voltage protection Input reverse connection Protection Short circuit protection	Low voltage protection Input reverse connection Protection Short circuit protection Smart cooling fan	Low voltage protection Input reverse connection Protection Short circuit protection Smart cooling fan	Low voltage protection Input reverse connection Protection Short circuit protection Smart cooling fan
