XIAN GOODNESS IMP. AND EXP. CO., LTD. >> DC 250V 500V 1000V 50Hz/60Hz Circuit Breaker

DC 250V 500V 1000V 50Hz/60Hz Circuit Breaker

DC 250V 500V 1000V 50Hz/60Hz Circuit Breaker
Price: US $ 2.4-3/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: DB7
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Poles Number: 2
Certification: CCC

Product Description

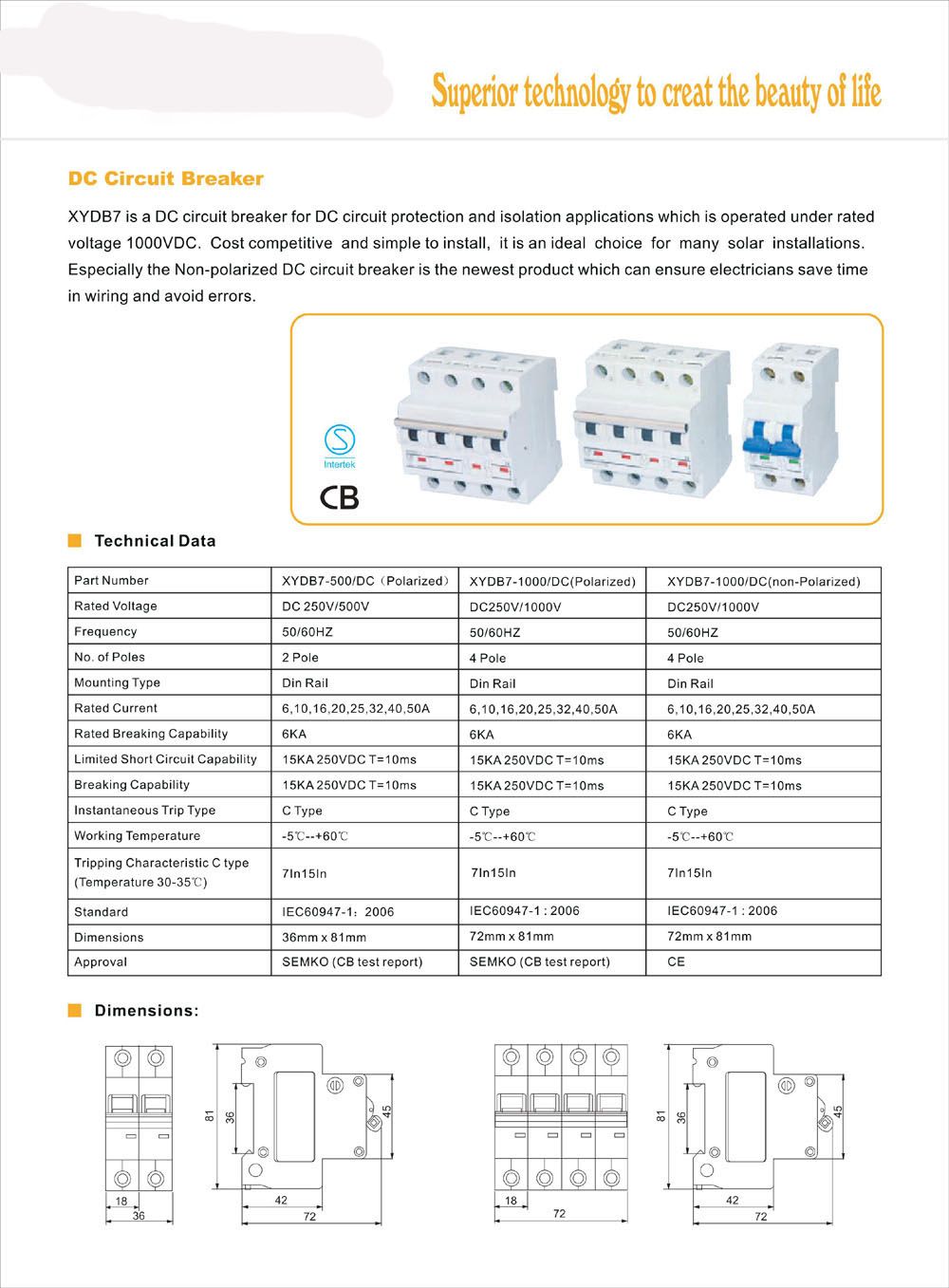

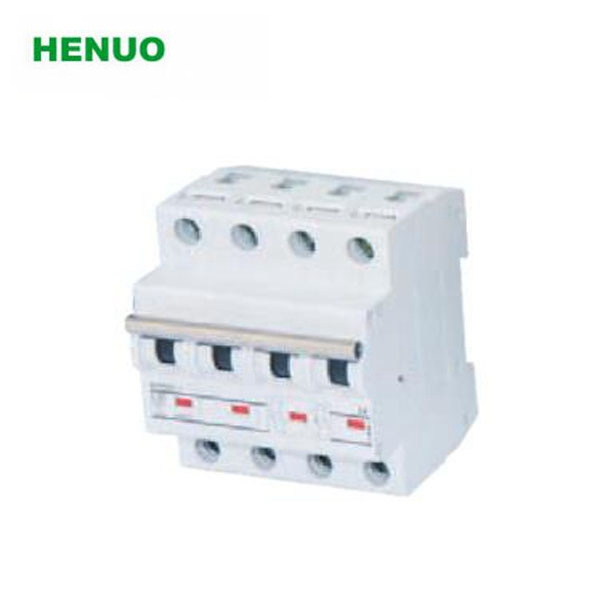

1P 2P 3P 4P 16A 25A 32A 40A 63A  DC CIRCUIT BREAKER

TG-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
Item                                     DC MINI CIRCUIT BREAKER
CodeFPV-63
Pole1P2P3P4P
Voltage250VDC550VDC750VDC1000VDC
Current1A,3A,6A,10A,16A,20A,32A,40,50A,63A
StandardIEC/EN60947
Breaking Capacity6KA,10KA
Characteristic CurveB,C,D
Working Temperature"-5°"to +40°
Protection DegreeIP20
Electrical lifeMore than 8000times
Mechanical lifeMore than 2000times
Dimension(W)X(H)X(D)18X80X7136X80X7154X80X7172X80X71
Installation35MM DIN RAIL
AccessoryYES
Installation Altitude≤2000M

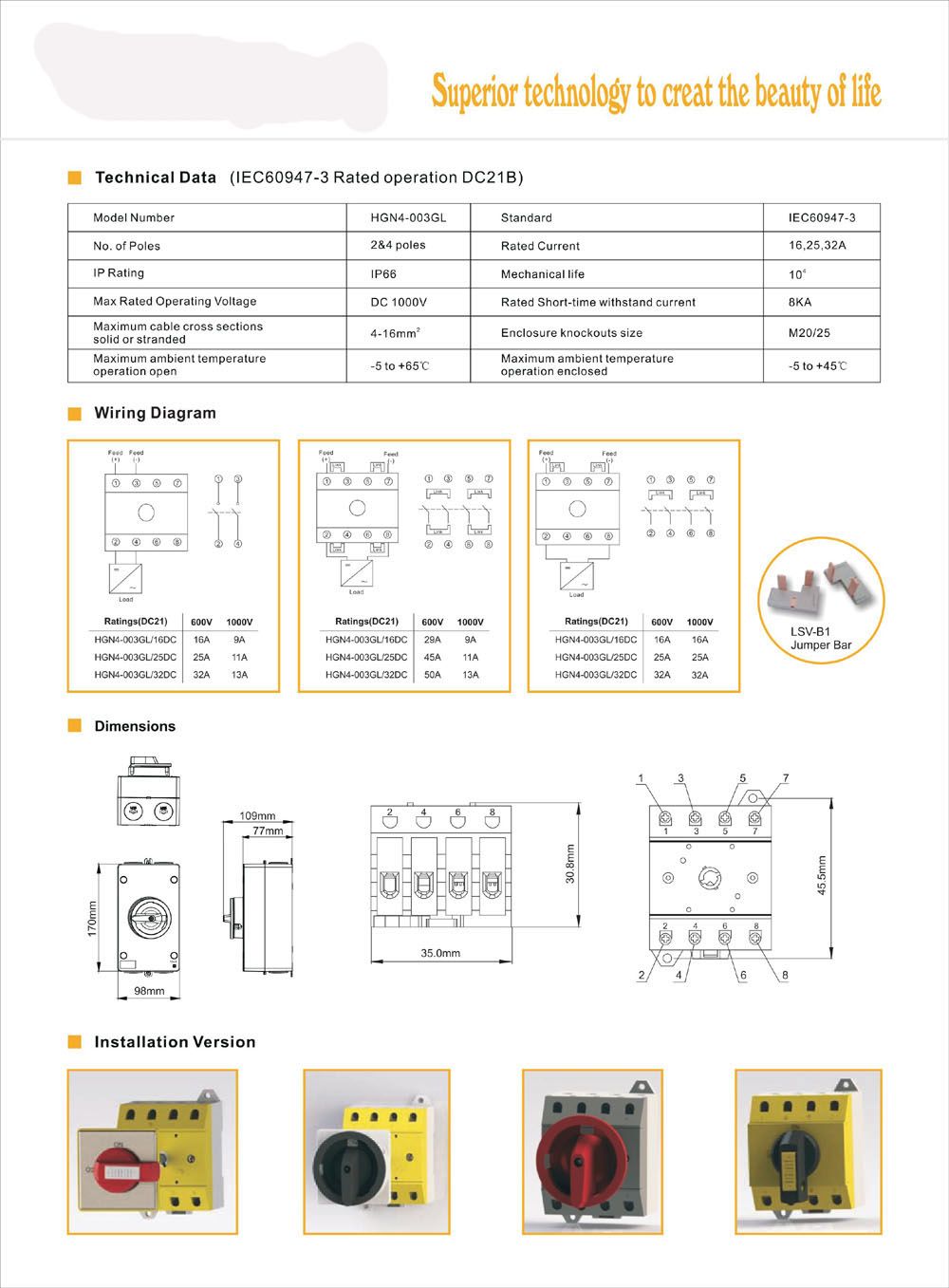

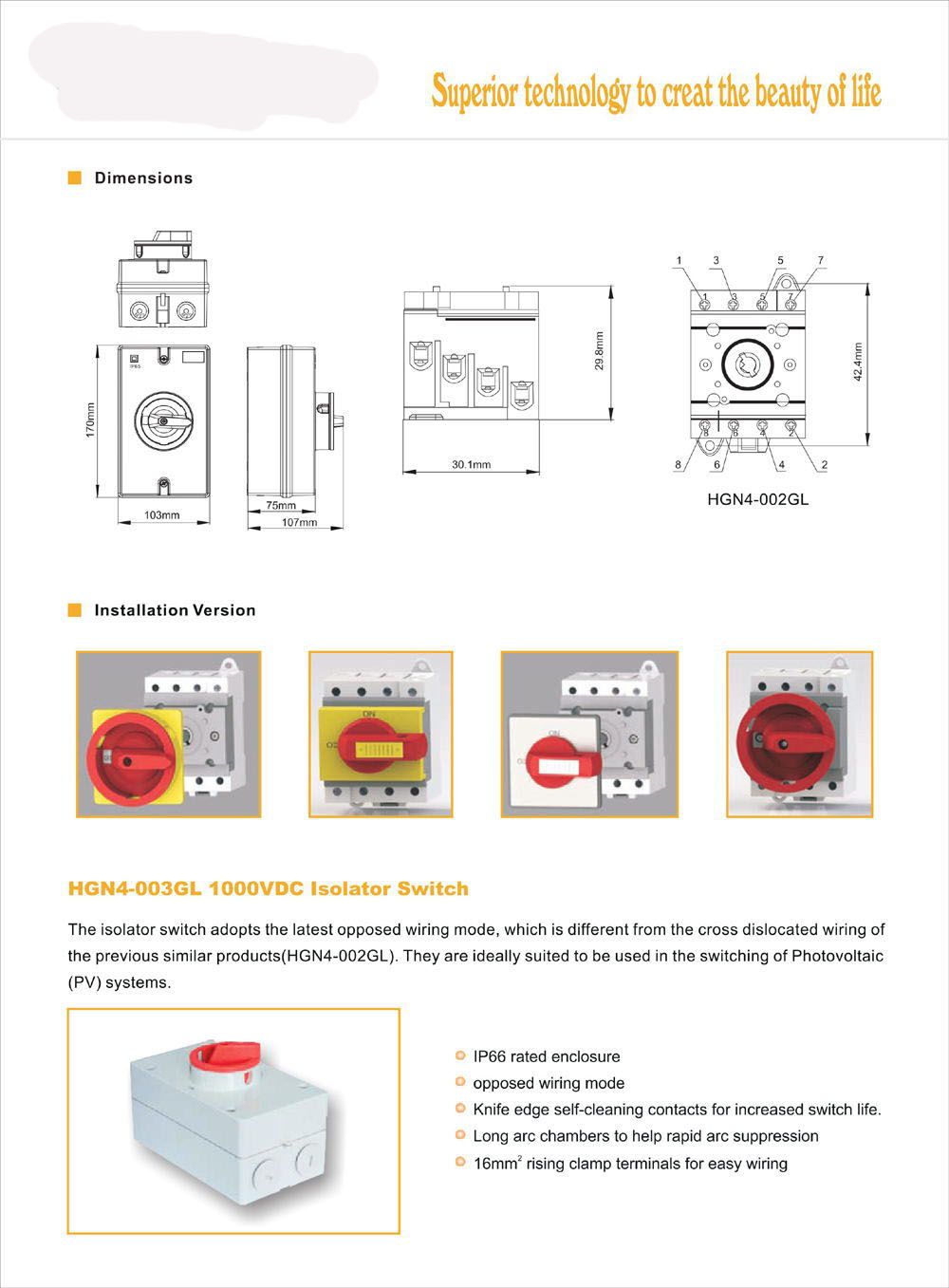

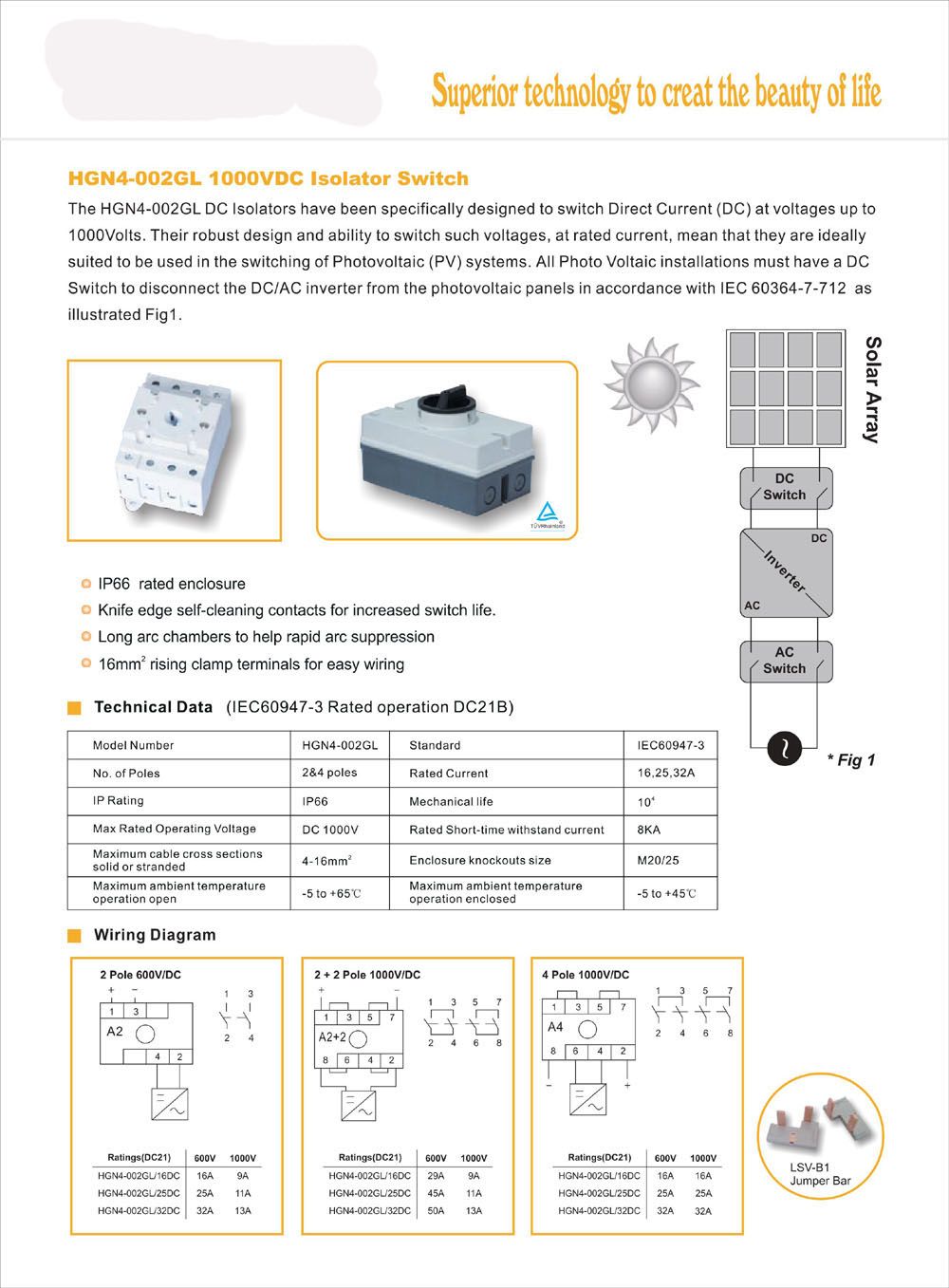

2P 4P DC 1000V SOLAR ISOLATUOR SWTCH






Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.

From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:

1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.

2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.

3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.

4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on

5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on

Internationalization standard quality guarantee system:

The product quality of Tengen Group has been strictly controlled in each working procedure,

Many kinds of internationalization standard quality guaranteed system can be highly effective

Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently

Make sure of our product quality.

"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American

FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management

System authentication, CCC authentication, European Union CE safe Authentication, American UL

Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first

Side laboratory -- low voltage electric appliance test center which is the first connected with

International in China.

We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
