| Prod Model: |
DXP3003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Color: |
Black |
| OEM: |
Welcome |
| Certificate: |
CE |
| Wave Form: |
Modified Sine Wave |
| Efficiency: |
Above 90% |
| Cooling: |
Fan |
| Rate Power: |
3000watt |
| Peak Power: |
6000watt |
| Mulit-Protection: |
Yes |
Product Description

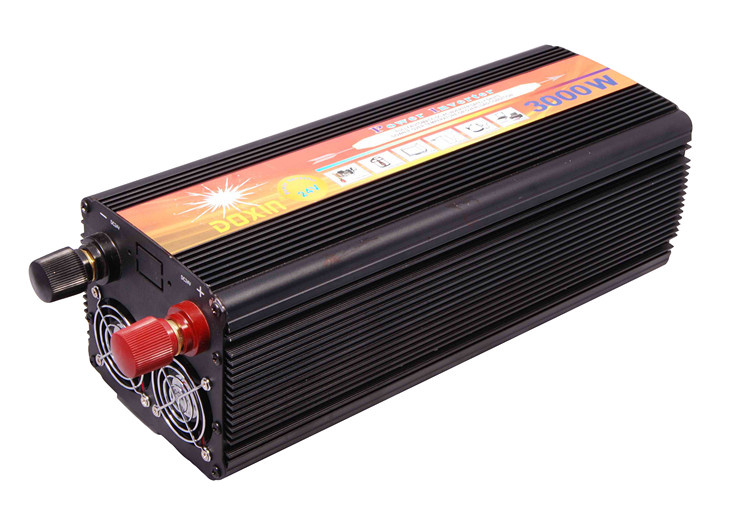

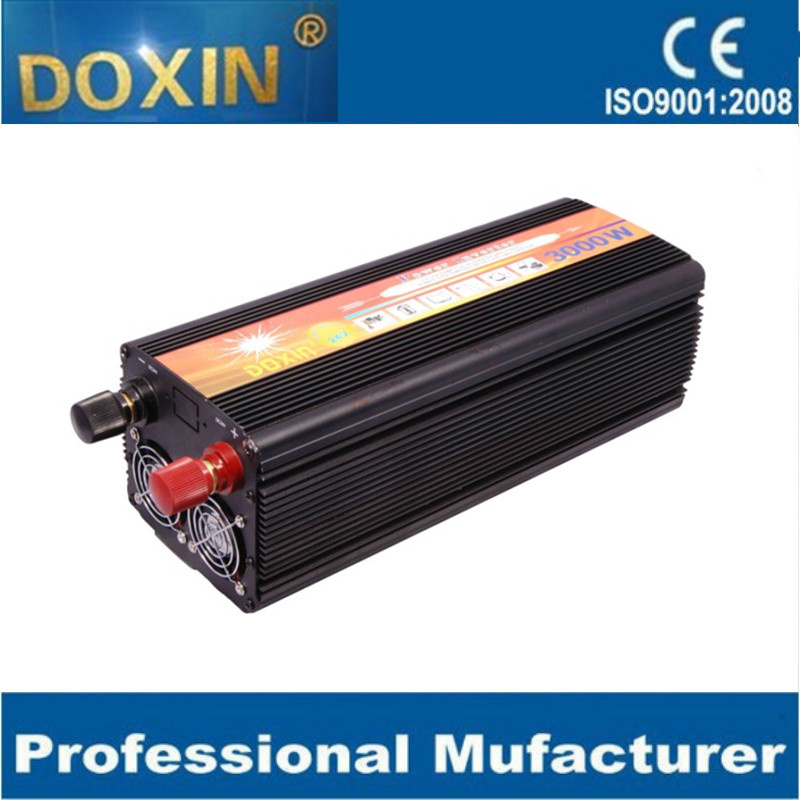

DC/AC 3000Watt Modified Sine Wave off grid tie Inverter 1. Product Introduction
1. High frequency pulse width modulation technology
2. Excellent double-faced circuit board and components
3. High quality and high performance
4. Protection function:
Overload protection
Over-current protection
High-temperature protection
Short-circuit protection
Battery reverse connection protection
Battery high-voltage&low-voltage protection
Built-in fuse protection, etc2. ApplicationIdeally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12V/24V Battery as in a Car, Motorcycle, Camper or Boat and use 110V/ 220V electrical appliances.
It can convert DC12V/24V (Optional) electricity provided the automobile into AC power, and be widely used with those electric equipments which power consumption are less than 3000W, such as notebook, cell phone, razor, digital camera, digital video, TV, CD, DVD, game machine, cleaner, refrigerator, electric light, charge and various kinds of professional tools, as the necessity for your travel, mobile office, outdoor work and special vehicle, it is the very solution to using electricity in the automobile.
With the multiple protection circuit, it would do no harm to the equipment and automobile
Universal socket, suitable for various kinds of plugs. EU, AU, France, German socket is available.
Some about us
DOXIN is a professional manufacture specialized in electronics and solar products, We produce electronics products more than 10 years. We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Product categoryCar inverter
Pure sine wave invertre
Modify sine wave inverter
Solar energy power source
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
FAQ:1. What is Inverter?Inverter is an electronic equipment that turn DC12V/24V/48V into AC110V/220V/230V/240V.2. How many kinds of output wave form for Inverters?Pure sine wave Inverter: It could provides high quality AC and carry various loads,While it requires high tech and high cost.Modified sine wave Inverter: It can load poorly not carrying inductive load, but the price is moderate.3. How to choose a power inverter?Mose of the electronic products are signed out their rated power, and the rated power should be less than the rated power of the power inverter.The method of how to estimate the power(W): The total of load power should be equal to the rated power(W) of the power inverter.You can choose inverter in this way.Warranty&Return: 1 year warranty from date of purchase record:
Please email us first if you have any questions or problems with the item received. We will try our best to solve the problem for you.If we cannot help you through emails, we will give you return instructions. No refund or replacement will be processed without the item being returned back to us. We reserve the right to refuse any returns for our reasons.
Buyer is responsible for return shipping cost in any situation.
We will not be liable to customer for any damages beyond the amount of money that customer has actually paid us.For more info you need, please contact us anytime!Call us: +86 18028085970 High Capacity Modified Sine Wave Inverter
(DC12V/24V/36V/48V60V--AC100/110V/220V230V240V) |
| CATALOGUE (DC24V--AC100-120/190-250V) |
| Item No. | DXDRL1000H | DXDRL1200H | DXDRL1500H | DXDRL2000H | DXDRL2500H | DXDRL3000H | DXDRL5000H |
| * Max continuous power: | 1000W | 1200W | 1500W | 2000W | 2500W | 3000W | 5000W |
| * Peak Load Power Rate: | 2000W | 2400W | 3000W | 4000W | 5000W | 6000W | 10000W |
| * Input Voltage: | DC 12V |
| * NO load current draw: | <0.3A |
| * Input DC voltage Range: | DC20-30V |
| * Output Voltage Range: | AC110/220V+/-10% |
| * Output Frequency Range: | 60/50+/-3Hz |
| * Max Outer Temperature: | < 65 °C |
| * Max Power Efficiency: | > 86% |
| * High Voltage Cut Off: | DC30V+/-2V |
| * Low Voltage Alarm: | DC21.1V±0.5V |
| * Low Voltage Cut Off: | DC20.5±0.5V |
| * Protection Function | Overload & Short-circuit & Over-current & Battery Reverse Connection Protection |
| * Output waveform: | Modified Sine Wave |
| * Cooling: | Built-in Temperature Controlled Fan |
| * Product Size(mm): | 320*150*70 | 320*150*70 | 320*150*70 | 350*150*90 | 350*150*90 | 430*155*130 | 460*170*90 |
| * Packing size | 56*36*46.5cm(8pcs/ctn) | 51*46*47cm(6pcs/ctn) | 51*46*47cm(4pcs/ctn) |
| * N.W: | 1.85Kg | 1.85Kg | 2.1Kg | 2.55Kg | 2.55Kg | 4.4Kg | 6.4Kg |
| * G.W: | 2.6Kg | 2.6Kg | 2.9Kg | 3.35Kg | 3.35Kg | 5.25Kg | 7.65Kg |
Guangzhou Doxin Electronic Factory is a manufacturer specialized in automobile electronic products. Currently, we mainly produce Car Power Inverter, Solar charge controller, Battery charger, transformer, Power adapter, Mobile phone charger, car emblem badge, wheel center cap, tire valve cap, car wheel sticker, car logo keychain which was established at the beginning of 1998.
We utilize advanced encrypting technologies, full automatic production line, Multi function testing. With features of "high efficiency, detection function, intelligent and environmental protection and energy saving", Products meet EU RoHS Green Directives, and wildly used in Car, Home furnishing, Outdoor, Travel, Patrol, Fieldwork ect.
Our production base with the perfect size was built and the base passed ISO9001: 2000 quality system certification, CE certification, RoHS certification, LVD certification, ETL certification and E-MARK. Modern factories, outstanding management and advanced technology become the best guarantee of product quality. Our products are selling well in our country, Europe, the United States, Middle East, Southeast Asia and other area with unique and innovative design, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R & D and production experience, OEM service. Our company has become one of the famous power inverter manufacturers in China.
Our Company continued to expand into international markets, at the same time, efforts to develop the domestic market, "DOXIN" products have caused widespread concern in the industry through the domestic marketing system, such as dealer network, OEM market. Car owners comprehensive experience to DOXIN forefront automotive technology products, which bring them convenience and happiness, once again demonstrates the strength and determination of the Guangzhou DOXIN electronic factory.
Adhering to the business principle of "Achieve Mutual Benefits from Good Cooperation", our employees are looking forward to establishing business relationships with clients both in the domestic and the overseas markets.
