| Prod Model: |
Power Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Start: |
Soft Start |
| Communication: |
RS232 Optional |
| Cooling: |
Automatically Controlled Cooling Fan |
| DC Connection: |
Cables with Ternimal |
| Phase: |
Single |
| Application: |
Home Theater |
| Brand: |
Upsen |
Product Description

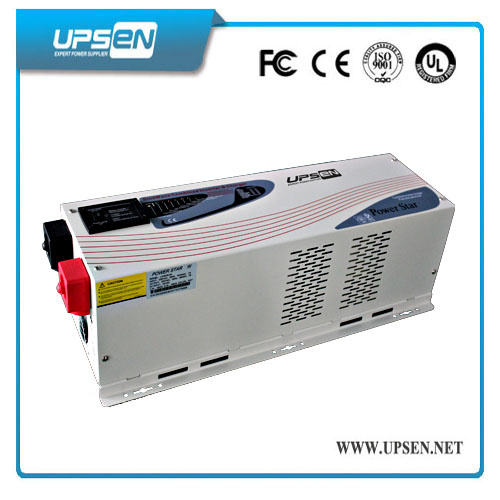

DC AC Frequence Inverter UPS, Power inverter with Charger
Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)
Inverter Application
Solar system and wind system,Server, Data center, Critical network devices, Telecom,Cable television,Communication equipment,Telephone and telecommunication equipment etc.
Inverter Key Features
1:Pure sine wave output (THD< 3%), available for sensitive loads
2:High efficiency up to 95% under line mode, and 88% for Battery Mode
3:LCD digital display show voltage, load and battery information in real time
4:MPPT function with high efficiency 97%
5:Fast switching (grid to battery and battery to grid) for backup power
6:Pure sine wave output, available for sensitive load
7:Automatically transfer between battery and line modes
8:Microprocessor control guarantees high reliability
9:Generator compatible
10:Protection against: Over load, over temperature, over charging, low battery
11:Reverse connection(optional by hard connector)
12:Blackouts
Technical Specification
| Power Star Series |
Model No. |
PS1000 |
PS2000 |
PS3000 |
PS4000 |
PS5000 |
PS6000 |
Nominal Power |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
AC Input |
Waveform |
Pure Sine Wave |
Voltage |
120VAC/230VAC |
Acceptable Voltage |
194-243VAC164-243VAC(wide mode) |
Line Low Transfer |
85V±4%/184(154 wide mode±4%) |
Line Low Return |
95V±4%/194(164 wide mode±4%) |
Line high Transfer |
135V±4%/253±4% |
Line high Return |
127V±4%/243±4% |
Frequency |
50Hz or 60Hz (Auto sensing) |
Line Low Transfer |
47Hz for 50Hz, 57Hz for 60Hz |
Line high Transfer |
55Hz for 50Hz, 65Hz for 60Hz |
AC Output |
Waveform |
Pure Sine Wave(bypass mode sync to input) |
Voltage |
120/220/230/240VAC(bypass mode sync to input) |
Voltage Regulation |
±10%rms(bypass mode sync to input) |
Frequency |
50Hz±0.3Hz(bypass mode sync to input) |
Peak Power |
3 times of rating power |
Short Circuit Protection |
Yes,shutdown after 10ms |
Power Factor |
0.9-1.0 |
DC Input |
Battery Voltage |
12V/24V |
12V/24V/48V |
24V/48V |
Minimum Start Voltage |
10V for 12V,20V for 24V,40V for 48V |
Low Battery Alarm |
10.5V for 12V,21V for 24V,42V for 48V |
Low Battery Transfer |
10V for 12V,20V for 24V,40V for 48V |
High Voltage Alarm |
16V for 12V,32V for 24V,64V for 48V |
Max Charging Current |
35A/70A |
Over Charge Voltage |
15.7V for 12V,31.4V for 24V,62.8V for 48V |
Transfer Efficiency |
Line Mode |
>95% |
Battery Mode |
>88% |
power saver |
Available when the load is less than 25 Watts |
Indicators |
7-LED Display |
From the right to the left,LED1 line mode (green lighting),LED2 inverter mode |
(green lighting),LED3 charging mode (yellow lighting),LED4 Fully charged |
(green lighting),LED5 over heat shutdown (red lighting) ,LED6 Overloaded |
shutdown (red lighting) ,LED7 Saving Mode (green lighting) |
3-LED Display |
Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) |
Switch selector |
Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
|
Audible Alarm |
Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
Protections |
low battery,over charging,over temp,over load |
Communications |
RS-232/USB(custom-made) |
Enviromental |
Operating Environment |
0-40ºC,0-90%RH(non-condensing) |
Audible Noise |
<60dB |
Physical | | | | | | |
Net Weight(KG) |
18 |
20 |
22 |
35 |
38 |
40 |
Dimension L*W*H(mm) |
442*218*179mm |
598*218*179mm |
* Specification is subject to change without prior notice.
