DC AC Inverter with 60A MPPT Charge

Prod Model:	PV35-8KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China, Mainland
Power Range:	8kw-12kw
Powerful Charge Rate:	Max 65AMP
Inbuilt:	MPPT Solar Charge Controller
Pure Sine Wave:	Output
LED+LCD:	Display
MPPT Solar Charge Controller:	in-Built
MPPT Efficiency:	Max 98%
50Hz/60Hz:	Automatic Sensing
12V/24V/48V:	Input Range

Product Description

-------Must Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional Hi-tech enterprise specializes in the research, development and manufacturing of Uninterruptible Power Supply (UPS), power inverter, solar power inverter.

--------Our comprehensive product lines include: Offline UPS, line interactive UPS, online UPS, power inverter, solar inverter, solar controller. Most products with CE, SONCAP certificate and IS9001 quality certificate. We are one of the authorized suppliers for China Government.

--------Must power with an excellent R & D team formed by over 30 engineers, and together 10, 000 square meter in-house manufacturing facilities in Shenzhen city, Guangdong, China.
Our main markets are Africa, Middle East as Ukraine, Italy, Kenya, South Africa, Nigeria, Pakistan etc.

Product name

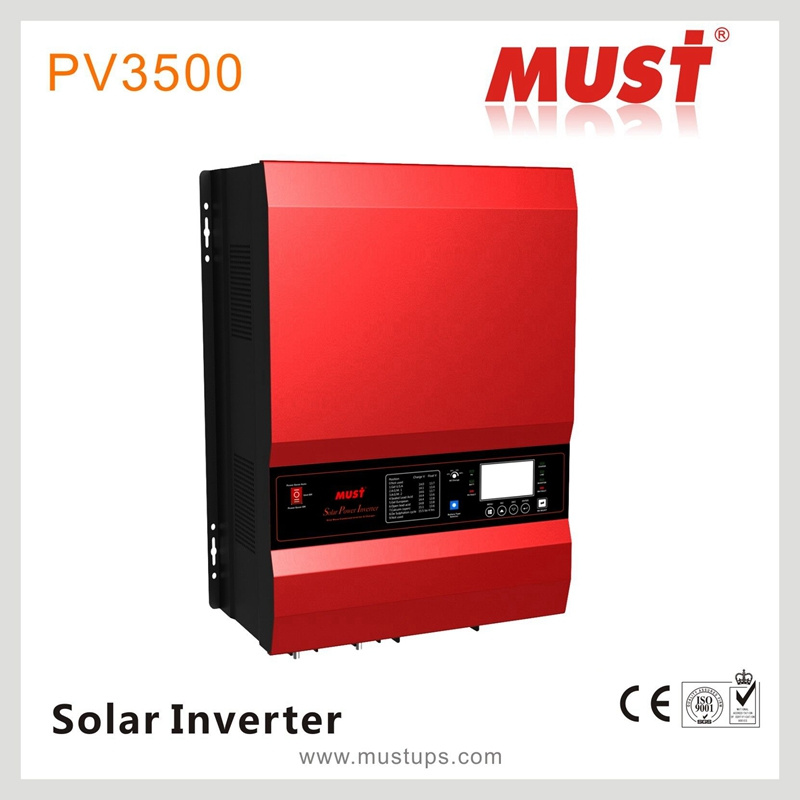

PV3500 PRO Series Solar Inverter


Brief description
Solar PV inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.
*power range 5kVA-15kVA
*24V/48VDC input voltage
*powerful charge rate up to 100AMP
*inbuilt pure copper transformer
*pure sine wave output
*LED+LCD display
*MPPT solar charge controller 40A 45A 60A
*MPPT efficency max 98%
*50/60Hz automatic sensing
*RS232 with free CD
*battery priority function
*automatically send signal to start generator
*DC start&automatic self-diagnostic function
*high efficiency design&"power saving mode"to conserve energy
Solar inverter 2kw

--------Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FedEx, UPS, EMS, Airway and By Sea

--------Want to know more about our company?
--------Want to know more about our products? Want to know more about the Price, packing, Shipping and any discount? Dear Friend, Do not Hesitate. Leave a Inquiry! ! ! ! : -


MODEL		PV35-1250		PV35-2K		PV35-3K		PV35-4K
Default Battery System Voltage		12VDC	24VDC	12VDC	24VDC	12VDC	24VDC	24VDC	48VDC
INVERTER OUTPUT	Reted Power	1250VA/1.0KW		2000VA/1.6KW		3000VA/2.4KW		4000VA/3.2KW
	Surge Rating (20ms)	3.0KW		4.5KW		6.0KW		9.0KW
	Capable Of Starting Electric Motor	1HP		1HP		1.5HP		2HP
	Waveform	Pure sine wave/ same as input (bypass mode)
	Nominal Output Voltage RMS	100V/110V/120VAC  220V/230V/240VAC(±10% RMS)
	Output Frequency	5OHz/60Hz±0.3 Hz
	Inverter Efficiency(Peak)	>88%
	Line Mode Efficiency	>95%
	Power Factor	0.8
	Typical Transfer Time	10ms(max) 10ms(max)
AC INPUT	Voltage	230VAC
	Selectable Voltage Range	96~132VAC/155~280VAC(For Personal Computers)
	Frequency Range	50Hz/60Hz (Auto sensing) 40~80Hz
BATTERY	Minimum Start Voltage	10.OVDC /10.5VDC for12VDC mode (*2 for 24VDC, *4 for 48VDC)
	Low Battery Alarm	10.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)
	Low Battery Cutoff	10.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)
	High Voltage Alarm	16.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)
	High Battery Voltage Recover	15.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)
	Idle Consumption-Search Mode	<25W when power saver on
CHARGER	Output Voltage	Depends on battery type
	Charger AC Input Breaker Rrating	10A		30A		30A		30A
	Overcharge Protection S.D.	15.7VDC for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
	Maximum Charge Current	35A	20A	25A		65A		45A
BTS	Continuous Output Power	Yes Variances in charging voltage & S.D. voltage base on the battery temperature
BYPASS & PROTECTION	Input Voltage Waveform	Sine wave (grid or generator)
	Nominal Input Frequency	50Hz or 60Hz
	Overload Protection (SMPS Load)	Circuit breaker
	Output Short Circuit Protection	Circuit breaker
	Bypass Breaker Rating	10A		15A		20A		30A
	Max Bypass Current	30Amp
SOLAR CHARGER	Maximum PV Charge Current	40A						45A
	DC Voltage	12V/24V atuo work						24/48V atuo work
	Maximum PV Array Power	600W	1200W	600W	1200W	600W	1200W	1200W	2400W
	MPPT Range @ Operating Voltage	16~100VDC	32~100VDC	16~100VDC	32~100VDC	16~100VDC	32~100VDC	32~145VDC	64~145VDC
	Maximum PV Array Open Circuit Voltage	100VDC						147VDC
	Maximum Efficiency	>98%
	Standby Power Consumption	<2W
MECHANICAL SPECIFICATIONS	Mounting	Wall mount
	Dimensions (W*H*D)	388*415*200mm
	Net Weight (Solar CHG) kg	23.5		24.5		25.5		29.5
	Shipping Dimensions(W*H*D)	550*520*310mm
	Shipping Weight (Solar CHG) kg	25.5		26.5		27.5		31.5
OTHER	Operation   Temperature  Range	0°C to 40°C
	Storage   Temperature	-15°C  to 60°C
	Audible   Noise	60dB MAX
	Display	LED+LCD
	Standard Warranty	1 year
