Nanjing KJT Electric Co., LTD >> DC/AC M12 Extented Sensing Type Inductive Sensor

DC/AC M12 Extented Sensing Type Inductive Sensor

DC/AC M12 Extented Sensing Type Inductive Sensor
Price: US $ 4.8-6.9/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KJT-J12
Material: Nickel-Copper Alloy
Protection Degree: IP 67
Standard: Standard
Certification: CE
Type: Inductive Proximity Switch
Principle: Inductive
Wires: NPN/PNP 3wire
Application: Position Sensor, Speed Sensor

Product Description

DC/AC M12 Extented sensing type Inductive sensor

Detailed Product Description :
Details:




  MountingF                   NF
  SN4/6mm         8/10mm
  Power supply10-30V DC/90-250VAC
  Housing sizeM12*51       M12*59
  Thread sizeM12*1*43

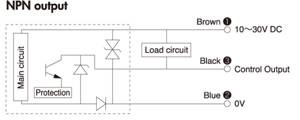

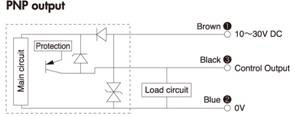

  OutputNPN/PNP      NO/NC
  Temperature drift≤±10%
  Hysteresis1…20%
  Repeat accuracy≤3%
  Load current≤200mA
  Residual voltage≤2.5V
  Consumption current≤10mA
  Protection circuitsurge, overload, short-circuit,   reverse polarity
  IndicatorYellow LED
  Ambient temp. -25…70ºC
  Ambient RH35-95%
  Frequency800Hz           500Hz
  Protection degreeIP67
  Housing materialNickel plated brass
  ConnectionPUR Cable 2m/M12 connector
