Nanjing KJT Electric Co., LTD >> DC/AC M8 Extended Sensing Type Inductive Sensor

DC/AC M8 Extended Sensing Type Inductive Sensor

DC/AC M8 Extended Sensing Type Inductive Sensor
Price: US $ 5.6-8.9/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KJT-J8
Material: Nickel-Copper Alloy
Protection Degree: IP 67
Standard: Standard
Certification: CE
Type: Inductive Proximity Switch
Principle: Inductive
Wires: NPN/PNP 3wire
Application: Position Sensor, Speed Sensor

Product Description

DC/AC M18 Extented sensing type Inductive sensor

Detailed Product Description :

Mounting F                  NF
 SN2/3mm           4/6mm
 Power supply10…30VDC
 Housing sizeM8*45     M8*50
 Thread sizeM8*1*40

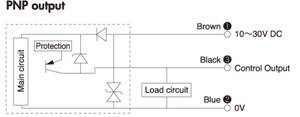

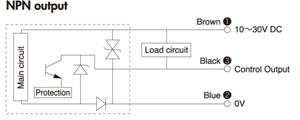

 OutputNPN/PNP        NO/NC
 Temperature drift≤±10%
 Hysteresis1…20%
 Repeat accuracy≤3%
 Load current≤150mA
 Residual voltage≤2.5V
 Consumption current≤10mA
 Protection circuitsurge, overload, short-circuit,    reverse polarity
 IndicatorYellow LED
 Ambient temp. -25…70ºC
 Ambient RH35-95%
 Frequency1500Hz        1000Hz
 Protection degreeIP67
 Housing material Nickel plated brass
 ConnectionPUR Cable 2m/M8 connector



Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.

Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
