Zhejiang Carspa New Energy Co., Ltd. >> DC AC power inverter modified sine wave 2000W

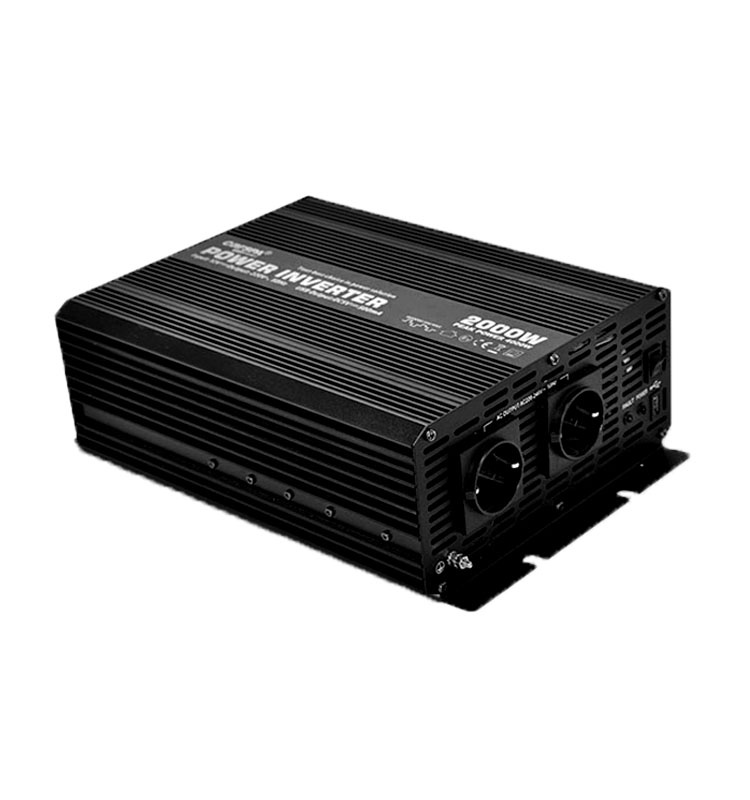

DC AC power inverter modified sine wave 2000W

DC AC power inverter modified sine wave 2000W
Price: US $ 90-103.5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: CAR2K
Waveform: modified sine wave
Input Voltage: 12VDC or 24VDC
Output Voltage: 110VAC or 220VAC
Frequency: 50Hz or 60Hz
USB: 5V 500mA
Socket: optional

Product Description

Modified sine wave power inverter 2000W

Product Features:
1. I/P protections: Bat.Low alarm, Bat.Low shutdown, Over voltage, Polarity reverse
2. O/P protections: Overload, short circuit, earth fault, over temperature, soft start
3. No load current draw: low power consumption(standby)

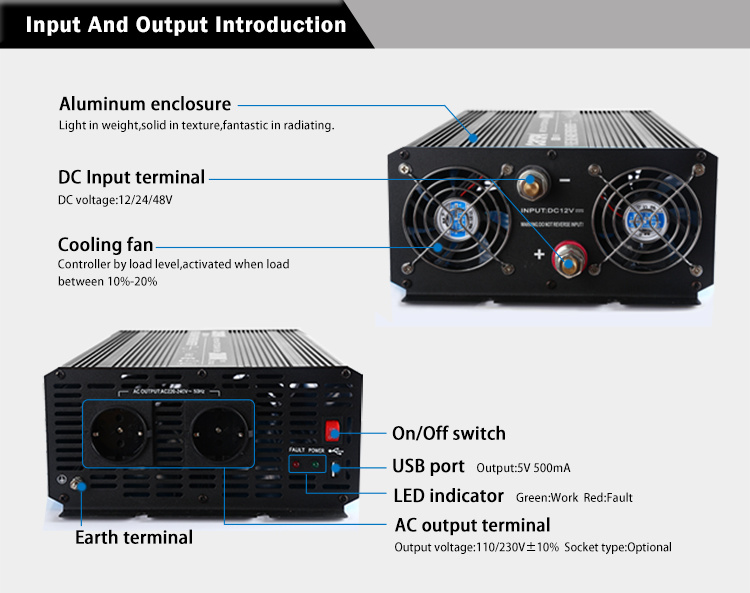

4. In front panel with power ON/OFF switch and LED indicator
5. Cooling fan load controlled or temperature controlled(optional)


Specification:
ModelCAR2K-121CAR2K-122CAR2K-241CAR2K-242CAR2K-481CAR2K-482
OutputAC voltage110V220-240V110V220-240V110V220-240V
AC regulation±10%
Rated power2000W
Peak power4000W(few seconds)
WaveformModified sine wave
Frequency50/60Hz±3
LED indicatorGreen: power on; Red: failure/protection status
USB port5V 500mA
Cooling fanControlled by load
InputDC current200A100A50A
No load current draw≤1.1A
DC voltage12V24V48V
Voltage range9-16V DC19-32V DC38-64V DC
ProtectionLow voltage after L.V.S11.5-12V DC23-24V DC46-48V DC
Low voltage alarm11±0.5V DC22±1V DC44±1V DC
Low voltage shut down9.5±0.5V DC19±1V DC38±1V DC
OverloadShut off O/P, repower to recover
Over voltage15±0.5V DC30±1V DC60±2V DC
Over temperature45±5ºC
Short circuitShut off O/P
Reverse polarityBy fuse open
Soft start3-5's
OtherN.W/unit4900g

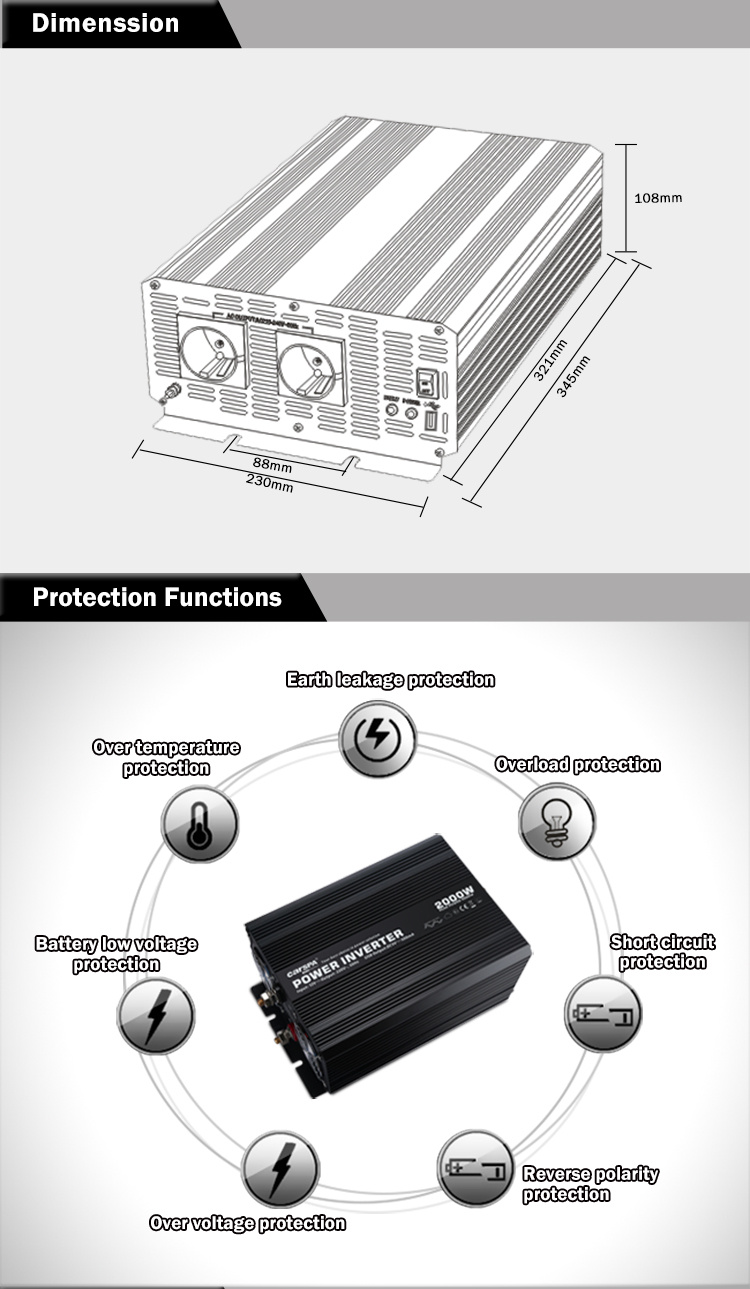

Dimension34.5*23*10.8CM
PackingColor box, 2pcs/12.5kgs/CTN(40*31.5*38CM)



Why choose us
1.Professional Manufacturer---12 years experience.
2.High Quality Products---Hot selling in European market.
3. Reliable Service---We serve for our clients with a golden team.
4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.
5. Advanced Technology---We have adopted the SMT & used the imported components.
6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.
7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.


FAQ
Question 1: Can I get one for sample?
Yes, we accept sample order or trial order for testing first.
Question 2: What's the price and MOQ?
Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.
Question 3: What's you delivery time?
It depends on your quantity, but usually, 7 days for sample order, 30-45days for batch order
Question 4: How about your payment and shipment?
Payment: We accept T/T, Western Union,Paypal etc. terms of payment.
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc. express;for batch order, by sea or by air( through our forward)
Question 5.How about your warranty?
we provide1.5 and 2 years warranty for different products and whole life technical support.
Question 6.Do you have you own factory?
Yes,we are professional manufacturer mainly in power inverter for about 12 years.Our factory is located in Yueqing,Zhejiang,China.
Through unremitting efforts over manny years, the scale has leaping development. In 2010, we moved to our new building, and we changed our company name to "Zhejiang Carspa New Energy Co., Ltd" (former name is Wenzhou Carspa Electronics Technology Co., Ltd) in 2011.

We have research center in Shenzhen (Shenzhen Sunpulse Industrial Co., Ltd), and in 2012, we establish our own import & export company ( Wenzhou Sunpulse Import & Export Co., Ltd).

We are a high and new technology manufacturer and exporter in China which is mainly specialized in researching, developing, manufacturing and marketing of power inverter which including mini car inverter, smart inverter, modified sine wave power inverter, pure sine wave power inverter, battery charger, pure sine wave inverter with charger, modified sine wave inverter with charger, domestic and industrial use UPS, DC voltage booster, negative booster, stabilizer, air purifier & ozone sterilizer and other car electrical products, solar modules, PV on grid inverter, microinverter, High-tech off grid inverter, solar charge controller, solar and wind system and other solar related products. Also, we deal with some other low voltage electric appliances and power supply products.

Established in 2004, Carspa Company located in wenzhou, the largest manufacturing base of low voltage electric equipment in China, and has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Carspa products have exported to many regions and many countries. Along with several leading experts, our company has developed a sound operation system consists of manufacturing, studying, researching, marketing, and servicing.

Our company has obtained ISO9001 quality certificate, CE-EMC/LVD, RoHS, E-MARK, SONCAP etc. Certification. And we have won numerous honors at home and abroad for our good quality, competitive prices and considerate services. Our motto is '' Harmony, Sincerity, Creativity and Win-Win ". We have been constantly pursuing to promote the development of the technology of the renewable energy, we try to make great efforts for saving global energy resources, making our future brighter.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual benefit cooperation relationship with you.
