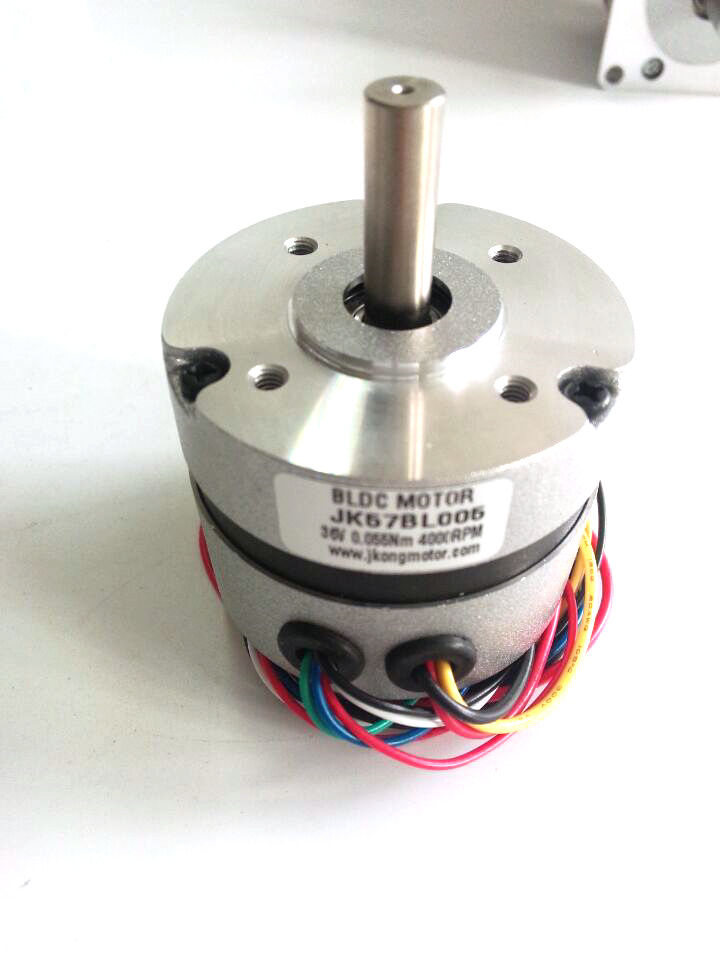

DC Brushless Motor 36V 4000rpm / Jk57bls005

Name: DC Brushless Motor 36V 4000rpm / Jk57bls005
Brand: all-electronics-online.com
SKU: 771908565
Availability: InStock
Rating: 5 (110 reviews)

Price:	US $ 16.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK57BLS005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Phase:	3
Rated Voltage:	36V
Rated Torque:	0.055n.M
Rated Speed:	4000rpm
Resistance:	4.1ohms
Body Length:	45mm
Rated Power:	23W
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brushless
Casing Protection:	Drip-Proof
Type:	BLDC Motor
Certification:	CE and RoHS
Brand:	Jkongmotor

Product Description

dc brushless motor 36v 4000rpm / JK57BLS005
General Specification:

(ITEM)	(Specification)
Winding Type	Delta
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max. radial force	75N @ 20mm from the flange
Max. axial force	15N
Insulation class	Class B
Dielectics strength	500 VDC for one minute
Insulation resistance	100 MΩMin.,500 VDC

Elecrical Specification:

Model	JK57BLS005	JK57BLS01	JK57BLS02	JK57BLS03	JK57BLS04
Number of poles	4
Number of phase	3
Rated voltage	36
Rated speed	4000
Rared torque	0.055	0.11	0.22	0.32	0.43
Rated power	23	46	92	133	180
Peak torque	0.16	0.39	0.7	1	1.27
Peak current	3.5	6.8	11.5	16.5	20.5
Resistance	4.1	1.5	0.7	0.45	0.35
Inductance	8.6	4.2	2.16	1.4	1
Torque constant	0.053	0.063	0.063	0.063	0.063
Back E.M.F	3.8	6.6	6.6	6.6	6.6
Rotor inertia	30	75	119	173	230
Body length	45	55	75	95	115
Weight	0.33	0.44	0.75	1	1.25

If you need a gearbox, we aslo are willing to serve you.

Technical Data		Level 1	Level 2
Ratio		4,5,7,9,10	16,20,25,28,35,36,40,45,49,50,63,70,81,90,100
Length	mm	53	70
Rated load	Nm	6	25
Max. rated load	Nm	12	40
Effeciency	%	95	90
Return difference	arcmin	≤15	≤25
Weight	KG	0.8	1.1
Rated input speed	rpm	3000	3000
Max.input speed	rpm	5000	5000
Protection grade	IP	65	65
Lubrication		Grease	Grease
Noise	Db	≤60	≤60
Working life	h	-20000	-20000

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
