DC Circuit Breaker

DC Circuit Breaker
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TSB1-63DC
Number Of Poles: 1p, 2p, 3p, 4p
Rated Current (a): 6, 10, 16, 20, 25, 32, 40, 50, 63
Rated Operating Voltage: DC24V, DC48V
Rated Insulation Voltage: 800V
Trip Type: Thermal-Magnetic
Circumstance Temperature: -20°c~+70°c
Electrical Life: ≥2500operations
Mechanical Life: (O-C) ≥20000operations
Mounting: DIN Rail
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Certification: CE
Poles Number: 1, 2, 3, 4

Product Description

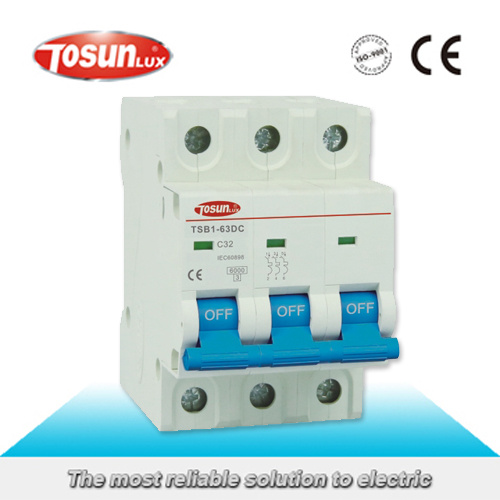

Specification of TSB1-63DC DC Miniature Circuit Breaker

Number of Poles

1P, 2P, 3P, 4P

Rated Current (A)

6, 10, 16, 20, 25, 32, 40, 50, 63

Breaking Capacity

6,000A

Rated Operating Voltage

DC24V, DC48V

Rated Insulation Voltage

800V

Trip Type

Thermal-magnetic

Circumstance Temperature

-20ºC~+70ºC

Electrical Life

No less than 2,500 operations

Mechanical Life

No less than 20,000

Installation

DIN Rail


We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
