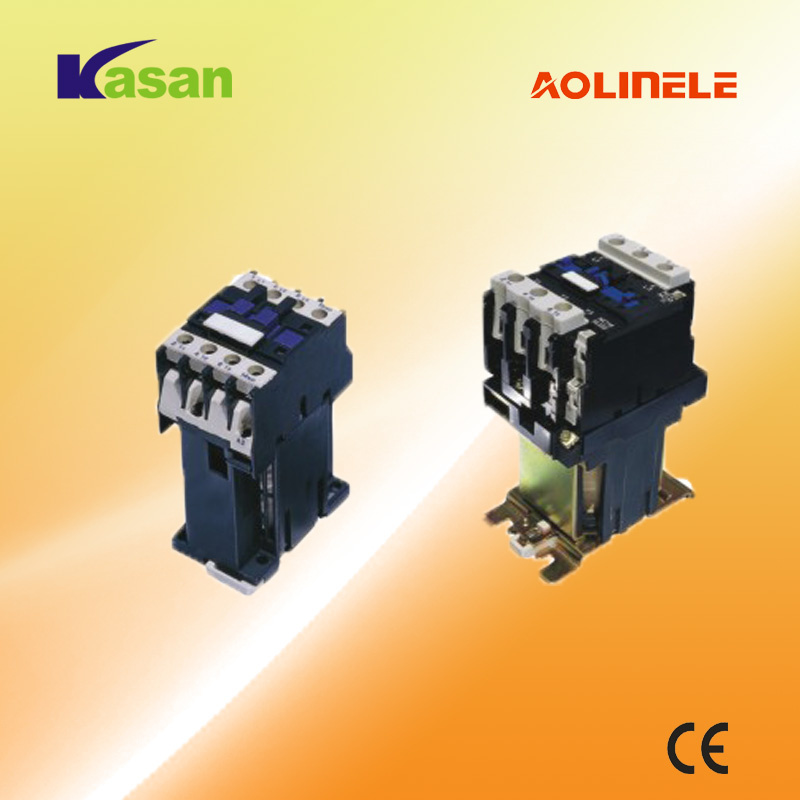

DC Contactor Series (KLP1-D09)

Name: DC Contactor Series (KLP1-D09)
Brand: all-electronics-online.com
SKU: 689983952
Availability: InStock
Rating: 4.4 (53 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type.:	DC Contactor
Controlled Power:	220V-660V
Size:	Miniature
Usage:	Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay
Action Principle:	Electronic Type

Product Description

LP1-D DC contactor and AC contactor

Specification:

Rated Current:9~95A

Voltage:380V

Mechanical life:3000,000 times

Note:other specifications can be customized upon different requirements

Application of LP1-D DC contactor
LP1-D Series DC Operated AC Contactor is suitable for using in the circuit rated voltage up to 660V AC 50/60HZ, and in rated current 9-95A in AC-3/380V load circuits. For remote controlling circuit making, breaking and frequently starting AC motors. It can be also conbined with the auxiliary contact group, air delay, thermal relay devices etc. It has specialties of equable&reliable action,quick while working.

Specification of LP1-D DC contactor
Type	Rated working current A(AC-3)	Rated heat current (A)	Rated worjking voltage Ue V	Controlled power(KW)					Contacts Number
Type	Rated working current A(AC-3)	Rated heat current (A)	Rated worjking voltage Ue V	220V	380V	415V	440V	660V	Contacts Number
LP1-D09	9	20	380V	2.2	4	4	4	5.5	3P+NO
LP1-D12	12	20		3	5.5	5.5	5.5	7.5
LP1-D18	18	32		4	7.5	9	9	9
LP1-D25	25	40		5.5	11	11	11	15
LP1-D32	32	50		7.5	15	15	15	18.5
LP1-D40	40	60	660V	11	18.5	22	22	30	3P+NO+NC
LP1-D50	50	80		15	22	25	30	33
LP1-D65	65	80		18.5	30	37	37	37
LP1-D80	80	125		22	37	45	45	45
LP1-D95	95	125		25	45	45	45	45
