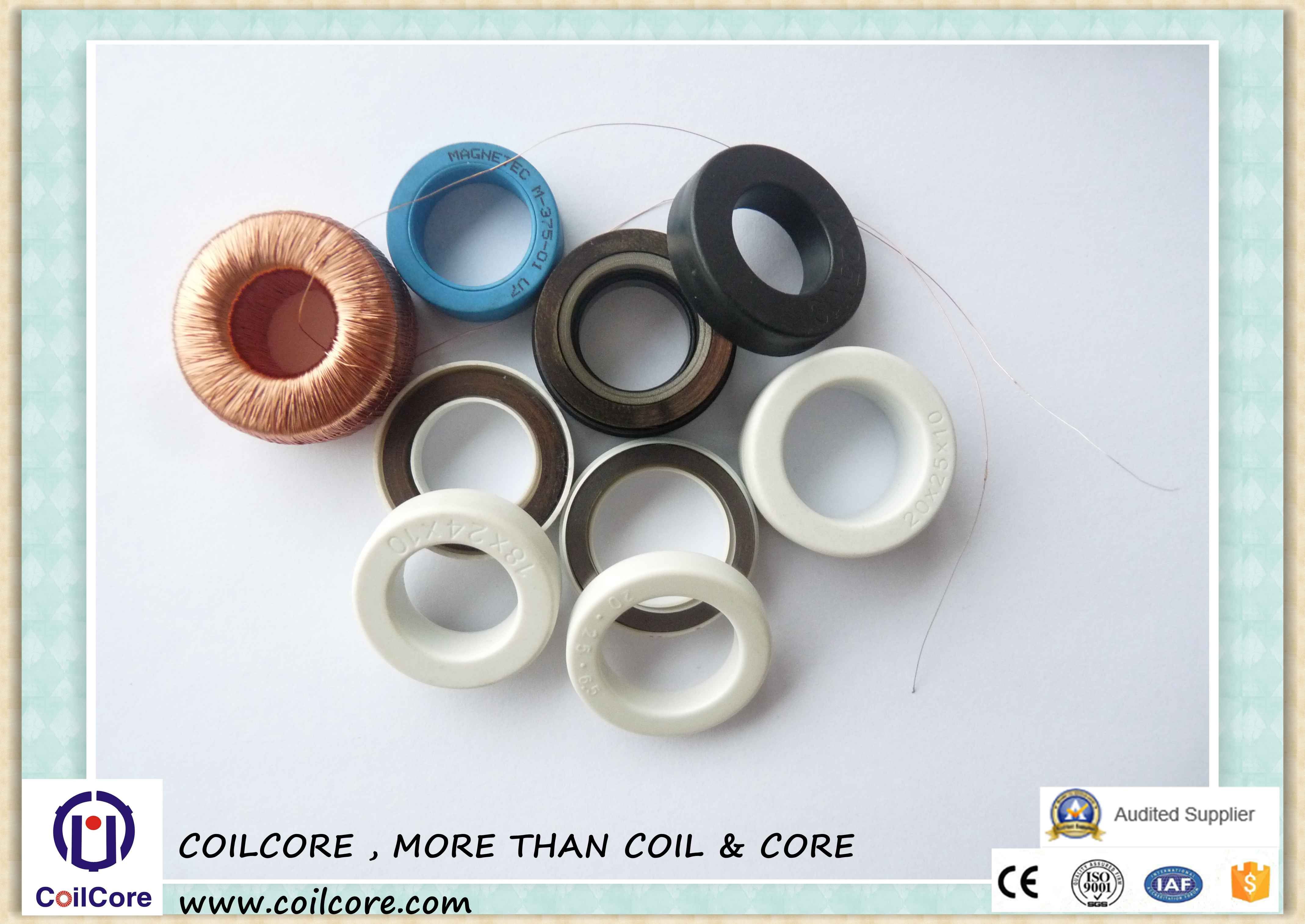

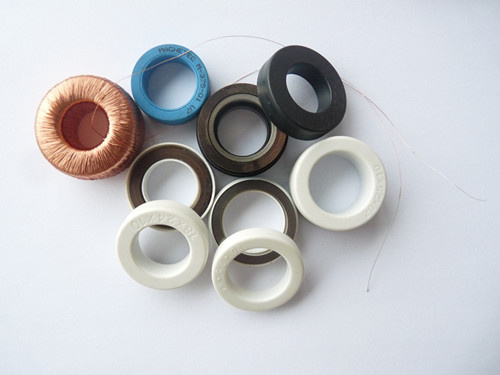

DC Current Immunity single cores (AI)

1,Features:

Made by single magnetic materials with constant permeability

(μ= 1400-2000)

2,Magnetic features:

Strong immunity for DC current,Applicable current range (1.5A-200A)

High linearity, High accuracy class, Applicable transformer accuracy range

0.5-0.1 Class

Good temperature stability

Core size saving by Volume and weight

3,Allpications:

DC current immunity transformers in electronic energy meter / watt-hour

meter

Metering transformer in electronic power system

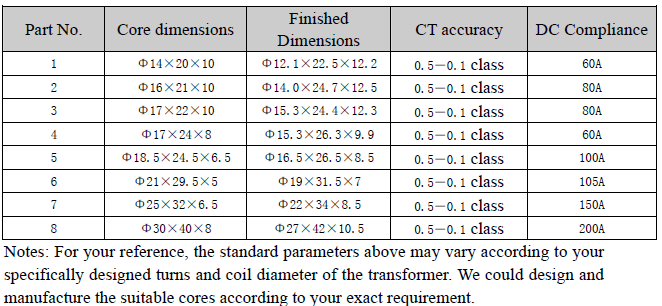

4,Standard cores dimensions, Applicable CT accuracy , Maximal DC

current immunity range

(1) Core for car audio

Part No.	Core dimension (mm)	Finished dimension(mm)	AL min. Idc=0 (μH)	N (Turns)	Idc (A)	Lv min. Idc=Rated (μH)
JHL061005	6.5×9.8×4.5	5.1×11.2×5.9	0.12	50	0.3	150
JHL081205-1	8×12×4.5	6.3×13.8×6.5	0.10	50	1.5	160
JHL081205-2	8×12×4.5	6.3×13.8×6.5	0.19	38	1.0	100
JHL091505	8.5×15.3×5.0	7.4×16.8×6.3	0.21	36	1.0	240
					2.0	160
					3.0	50
JHL101608-1	10×16×8.0	8.3×18.2×10.3	0.13	40	2.0	150

(2)Core for PFC & CHOKE

Part No.	Core dimensions (mm)	Finished dimensions (mm)	AL(Idc=Rated) (μH)		Max AT(NΧIdc)
Part No.	Core dimensions (mm)	Finished dimensions (mm)	A type (min)	B type (min)	A type (max)	B type (max)
JHL-1608	10×16×8.0	8.3×18.2×10.3	0.30	0.10	26	75
JHL-1810	11×18×10	9.1×20×12.2	0.39	0.13	30	90
JHL-2610	16×26×10	14.2×28.5×12.8	0.38	0.12	42	120
JHL-3210	20×32×10	18.2×37×13.5	0.37	0.12	54	150
JHL-4013	25×40×12.5	22.5×42.2×16	0.46	0.15	67	200
JHL-5920	40×59×20	36×63×24	0.60	0.20	100	300

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
