| Prod Model: |
ISOEM U(A)-P-O-S Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
0-5V/0-10V/0-75mv/0-2.5V/0-1mA/0-10mA/0-20mA/4-20 |
| Output: |
0-5V/0-10V/0-75mv/0-2.5V/0-1mA/0-10mA/0-20mA/4-20m |
| Isolation Mothod: |
Electromagnetic Isolation |
| Isolation Voltage: |
3000VDC |
| Auxiliary Power Supply: |
5VDC,12VDC,15VDC,24VDC,etc. |
| Package: |
SIP 12pin |
| Operating Temperature Range: |
-40~+85 Centigrade |
Product Description

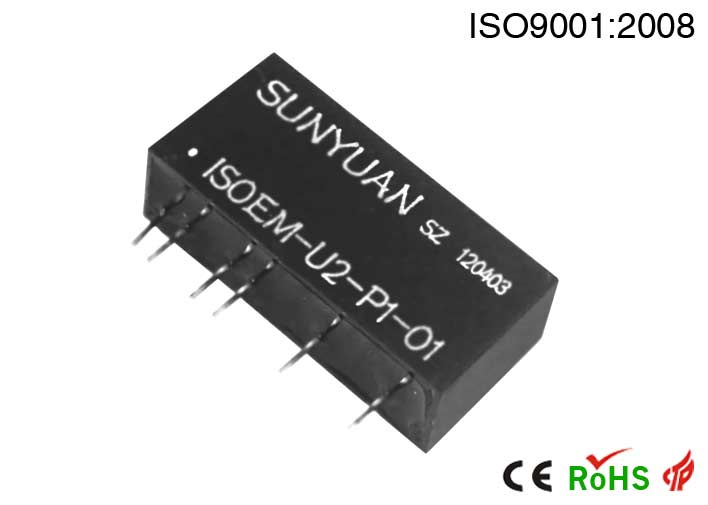

DC Current or Voltage Signal Transmitter with electromagnetic isolation
ISOEM U(A)-P-O-S Series Converter/Transmitter General parameter:
Compact SIP 12Pin, comply with UL94V-0 standard, flame retardant package.
External potentiometer, zero and gain adjustment is not required (Non-linearity <0.1%).
3KVDC Isolation among auxiliary power supply, signal input, output.
Auxiliary Power Supply: 5V, 12V, 15V, 24VDC, etc single power supply.
Power distribution in input end for function expansion: 5V, 12V, 15V, 24VDC, etc.
0-75mV/0-10V/0-1mA/4-20mA, etc analog signal isolationamplification and conversion.
Industrial operating temperature range: -40~+85
In EMC special situation, shielding measures and electro-magnetic rejection circuit are required.
Applications
Passive sensor isolated power distribution, signal acquisition & transmission.
Supply power for preamplifier, weighing bridge tocollect signals.
PLC, DCS analog signal isolation and dataacquisition.
DC current/voltage signal isolation, amplification and conversion.
Analog signal ground interference rejection anddata isolated acquisition.
Industrial site signal isolation and long-distance transmission.
Receiving and Transmitting the signals between meters& Instruments and sensors.
Electric monitoring, medical equipments isolated safety bar.
Introduction:
SUNYUAN SIP12 Pin package ISOEM-S Series Analog Active Signal Isolated Transmitter/Distributor is a kind of signal module/ IC with electro-magnetic hybrid integrated circuit inside. There are one multi-isolation DC/DC transformation power and a set of electro-magnetic coupling analog signal isolated amplifier/transmitter in the IC. The transmitters mainly applied in the field without special requirements for EMC (electro-magnetic interference). And by employing internal isolation technique, proper I/O side creepage distance, the isolated voltage of that signal transmitter is up to 3000VDC.
ISO EM-S Series transmitter easily achieves the isolated conversion for the industrial site signals without gain/zero adjustment, external zero and without external gain adjustment potentiometers. The isolated power supply in input end can distribute power to displacement, resistance and other passive two-wire/three-wire sensors, and can also be used as pre-amplification in input end, amplification of weighing bridge, calibration, etc.
Precision grade: 0.1, 0.2.
0-5V/0-10V/0-75mV/0-2.5V/0-1mA/0-10mA/0-20mA/4-20mA, etc international standard signal input.
Output voltage signal: 0-2.5V/0-5V/0-10V/1-5V. Output current signal: 0-10mA/0-20mA/4-20mA, high load capacity.
Product Model Sellection:
ISO EM U(A) -P- O- S
Signal Input: Current/Voltage
U1: 0-5V A1: 0— 1mA
U2: 0-10V A2: 0— 10mA
U3: 0-75mV A3: 0— 20mA
U4: 0-2.5V A4: 4— 20mA
U8: Customized A8: Customized
Auxiliary Power Supply
P1: 24VDC P2: 12VDC
P3: 5VDC P4: 15VDC
P8: Customized
Signal Output
O1: 4-20mA O2: 0-20mA
O4: 0-5V O5: 0-10V
O6: 1-5V O8: Customized
Isolated Distribution Power Supply
S1: 9VDC
S2: 15VDC
S3: 24VDC
S4: 5VDC
S8: Customized
Model Sellection Example:
E. G. 1: Input signal: 0-5V, Output signal: 0-5V, Auxiliary Power Supply: 24VDC, Power Distribution: 15VDC
Product Model No: ISOEM U1-P1-O1-S2
E. G. 2: Input signal: 4-20mA, Output signal: 4-20mA, Auxiliary Power Supply: 24VDC, Power Distribution: 24VDC
Product Model No.: ISOEM A4-P1-O1-S3
|
Precision,Linearity Error Grade |
Auxiliary Power Supply |
Operating Temp. |
Storage Temp. |
Storage Humidity |
Backlash |
Isolation |
Insulation Resistance |
Withstand Volt |
Leakage current |
Inpulse Volt. Test |
|
0.1,0.2 |
5V,12V,15V,24VDC |
-20~+70 centigrade |
-45~+85centigrade |
10~95%(No Condensation) |
<0.5% |
Signal Input/Output/Auxiliary Power Supply |
>=20MOhm |
3KV(60HZ/S) |
1mA |
3KV,1.2/50us(Peak Value) |
