| Prod Model: |
DC-DC-5A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
DC-DC-5A |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
| Brand: |
Cnruihua |
Product Description

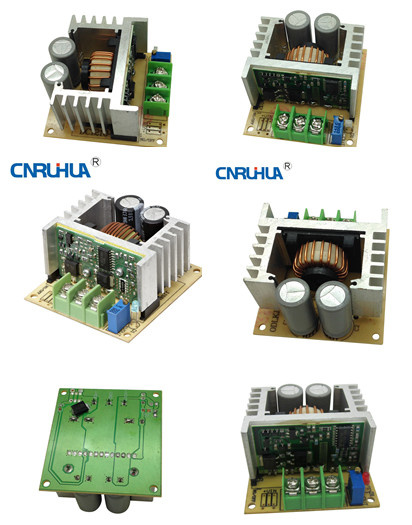

DC-DC-5A DC converter
| Module Properties: | Non-isolated high-efficiency regulator, constant voltage module |
| Scope: | High-power solar &vehicle power supply, wide input voltage system.
DIY 30V 5A adjustable power supply,etc. |
| Output Power: | 1-50W |
| Output Type: | Single, adjustable |
| Input Voltage: | 8-56V input DC voltage (58V) limit (no input AC) |
| Output Voltage: | 2-45V precision adjustable (step-down module,input 3V higher than output) |
| Output Current: | Rated 5A |
| Dimension: | LWH 61*55*30mm |
| Origin: | Japan |
| Efficiency: | up to 95% |
| Over-current : | (Ultra-6A over current ), with over-current self-recovery function |
| Operating temperature: | Industrial grade (-40°C to +85 °C)
(When temperature >40°C, to lower power use or need heat dissipation) |
| Full load temperature rise: | 38 °C |
| No-load current: | Typical 15mA (12V turn to 5V) |
| Load Regulation: | ± 1% |
| Voltage regulation: | ± 0.5% |
| Dynamic response speed: | 5% 200uS |
| Indicator: | Output power indicator |
| Output short circuit : | Short circuit after discharge automatically resume output |
| Input Reverse Polarity: | No diode in series with the input. Make sure the wiring is correct then test |
| Wiring: | Wiring terminals |
Conversion efficiency
for reference | Input 24V Output 12V 5A efficiency 92% |
| Input 36V Output 24V 5A efficiency 95% |
| Input 48V Output 24V 5A efficiency 93% |
Note:
1.High-current and high-voltage inputs need heat dissipation, and should have sufficient margin!
2.DO NOT reverse polarity, make sure the positive &negative input and output wire is CORRECTLY connected and then power-on test. For the output current is relatively large, input and output wire must be short and thick to reduce loss.
3. It is a step-down module,input voltage should be 3V higher than output.
e.g Output 5V, input voltage between 8V-55V
Output 12V, input voltage between 15V-55V
Output 24V, input voltage between 28V-55V
4. Input 56V output voltage can be 2-48V precisely adjustable
