DC Electric Motor

Name: DC Electric Motor
Brand: all-electronics-online.com
SKU: 826947645
Availability: InStock
Rating: 4.6 (79 reviews)

Price:	US $ 7.28-8.38/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brush
Brand:	Mada

Product Description

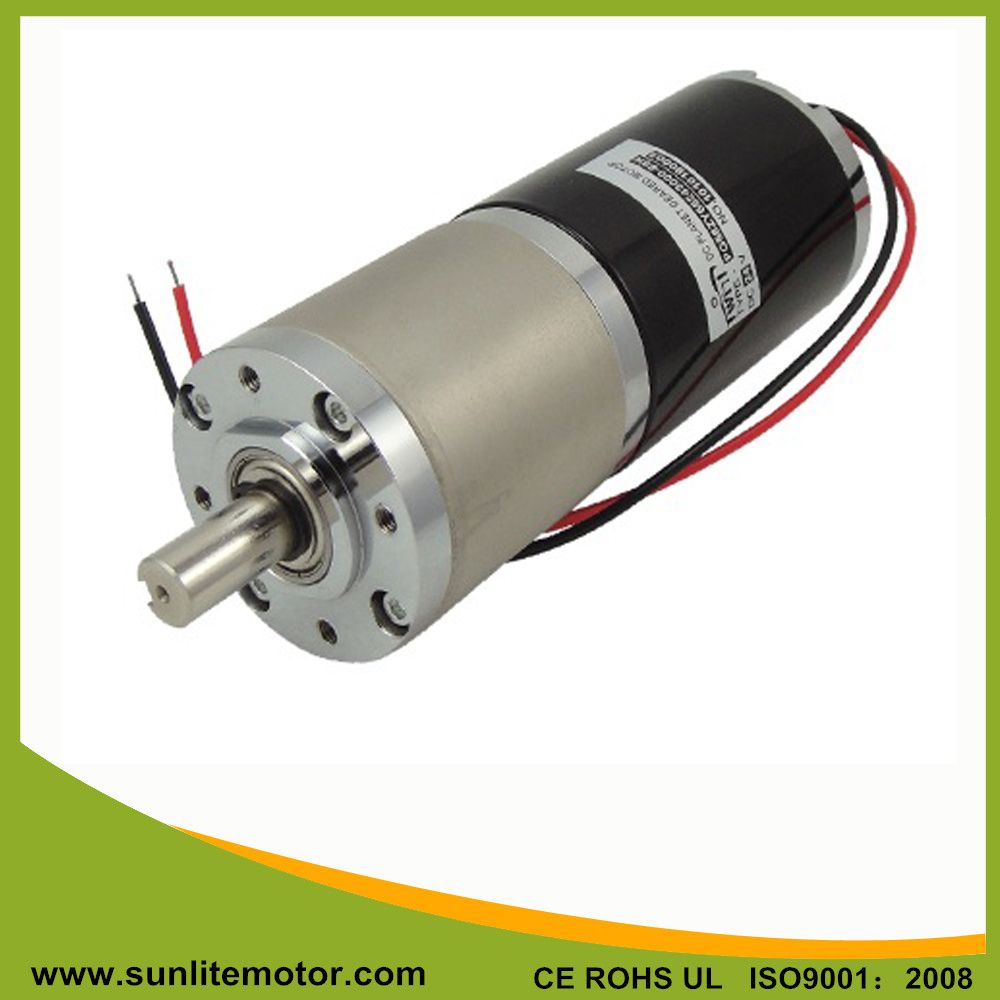

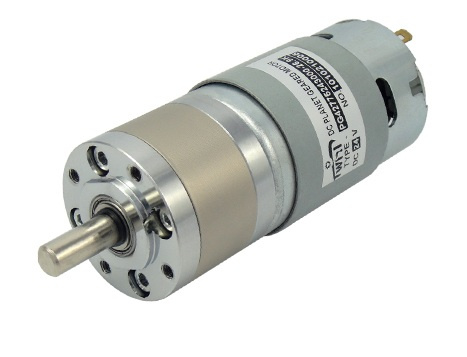

DC Electric Motor

Basic information
Product name	SL22180 series,22mm diameter planet gear motor
Motor type	carbon-brush commutator
Gear type	Straight gearwheel,planet construction
Housing material	Steel
Geartrain material	Steel and Powdered Metal,POM optional
Bearing at output shaft	Sleeve bearing
Lubricant	Grease for high-low temperature, -62---+204 degree
Backlash at no-load	<1°,MIN0.3°
OEM & ODM Service	Available
Certificate	CE,ROHS,ISO/TS16949

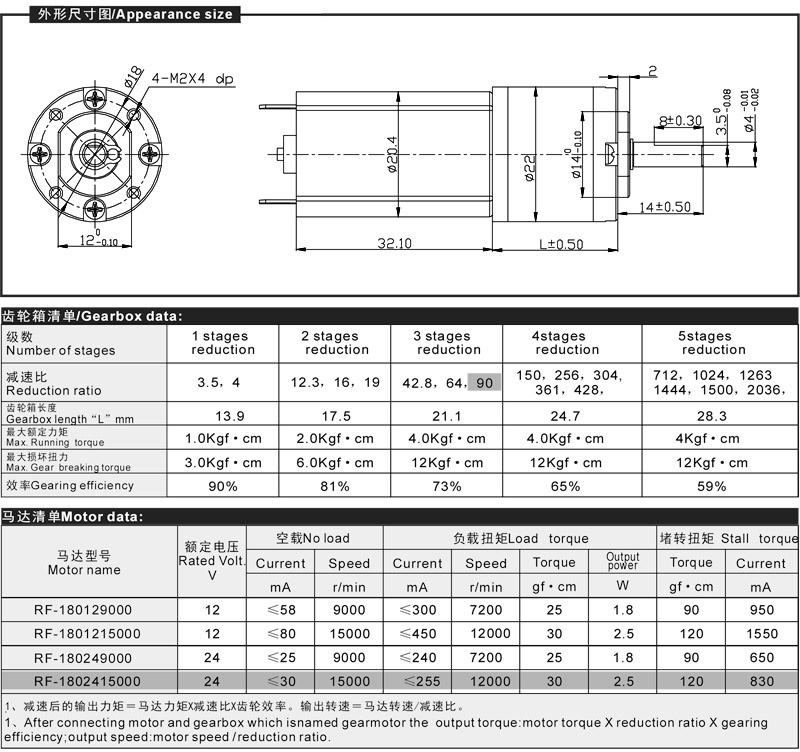

An exact model of gearbox and motor combination
Product seires	SL22180 Series
An exact Model NO.	PG22180 06 10000-90K
Motor Voltage(VDC)	6
Motor no load speed(rpm)	10000
Gearbox reduction ratio	90K
Gearmotor no load current(A)	<0.299
Gearmotor no load speed(rpm)	128
Gearmotor rated load torque(kgf.cm)	2.5
Gearmotor rated current(A)	<1.327
Gearmotor rated load speed(rpm)	100+/-10%
Noise (DB)	<55DB
Lifetime	1000+ hours (varies by application)
Rotation	CW/CCW reversible
