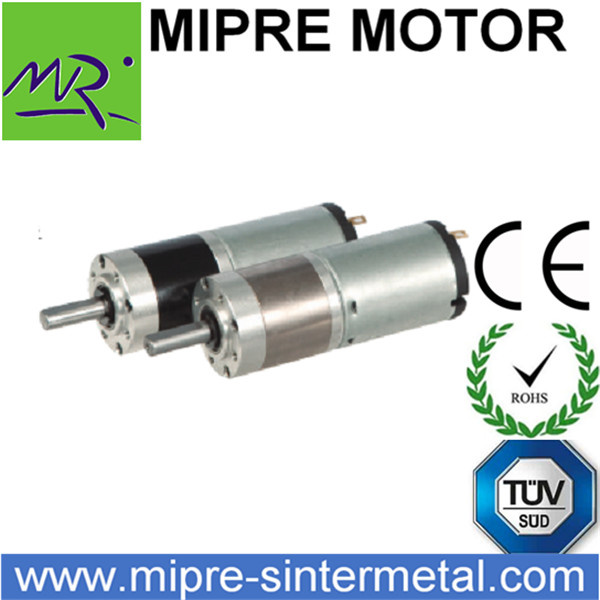

DC Gear Mini 12-24V Planetary Motor for Material Handling

Name: DC Gear Mini 12-24V Planetary Motor for Material Handling
Brand: all-electronics-online.com
SKU: 824448755
Availability: InStock
Rating: 5 (137 reviews)

Price:	US $ 11.94-14.16/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MR-E28PR5K/MR-2838
Usage:	Air Purifiers
Application:	Lock
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Certification:	Ce,RoHS
Brand:	Mipre

Product Description

SPECIFICATION

PM DC Planetary Gear Motor Model No.: MR-E28PR5K/MR-2838 28mm OD Planetary Gearbox, Permissible Load Range:0.5N.m MAX

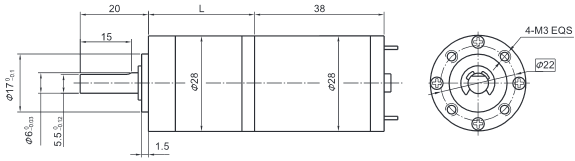

Dimensions(mm)

Driving Motor Technical Data
Type		Rated Voltage VDC			No load speed rpm			No load current mA		Rated speed rpm				Rated torque mN.m	Output power W	Rated current mA
MR-2838-1240		12			4000			80		2600				7	1.86	350
MR-2838-1250		12			5000			100		3450				7	2.48	370
Gear Motor Technical data -With MR-2838-1240 motor
Reduction ratio	3.7		5.2	14		19	27		51	71	100	139	189
Number of gear trains	1		1	2		2	2		3	3	3	3	4
Gearbox length L(mm)	23.5		23.5	26.5		26.5	26.5		31.8	31.8	31.8	31.8	37.0
No load speed(rpm)	1078		772	286		211	148		78	56	40	29	21
Rated speed(rpm)	701		502	186		137	96		51	37	26	19	14
Rated torque(N.m)	0.023		0.033	0.079		0.11	0.15		0.26	0.36	0.5	0.5	0.5
Max. Permissible load in a short time(N.m)	0.15		0.15	0.6		0.6	0.6		1.2	1.2	1.2	1.2	1.5

-With MR-2838-1250 motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189
Number of gear trains	1	1	2	2	2	3	3	3	3	4
Gearbox length L(mm)	23.5	23.5	26.5	26.5	26.5	31.8	31.8	31.8	31.8	37.0
No load speed(rpm)	1348	965	357	263	185	98	70	50	36	26
Rated speed(rpm)	930	666	246	182	128	68	49	35	25	18
Rated torque(N.m)	0.023	0.033	0.079	0.11	0.15	0.26	0.36	0.5	0.5	0.5
Max. Permissible load in a short time(N.m)	0.15	0.15	0.6	0.6	0.6	1.2	1.2	1.2	1.2	1.5

Product Application

Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.

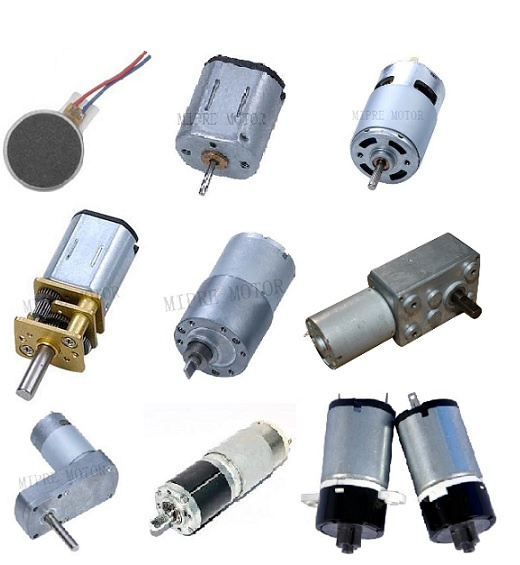

Related motors

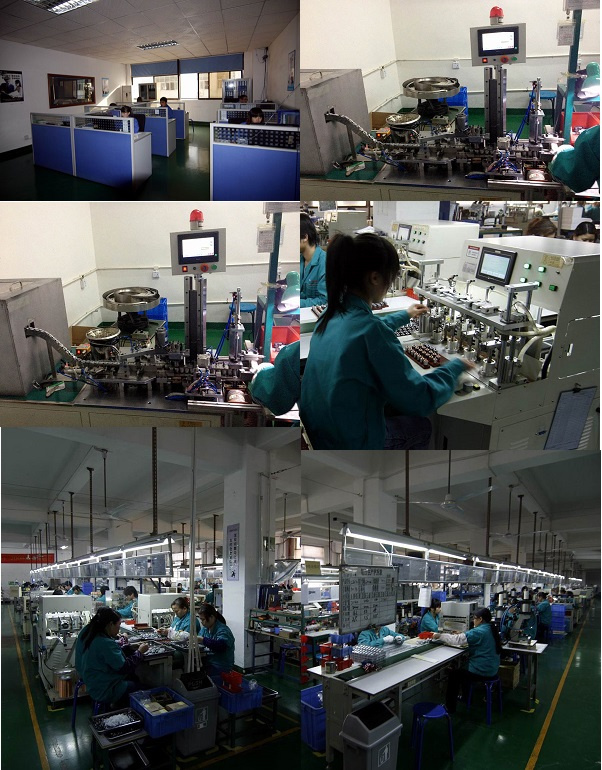

Our company:
