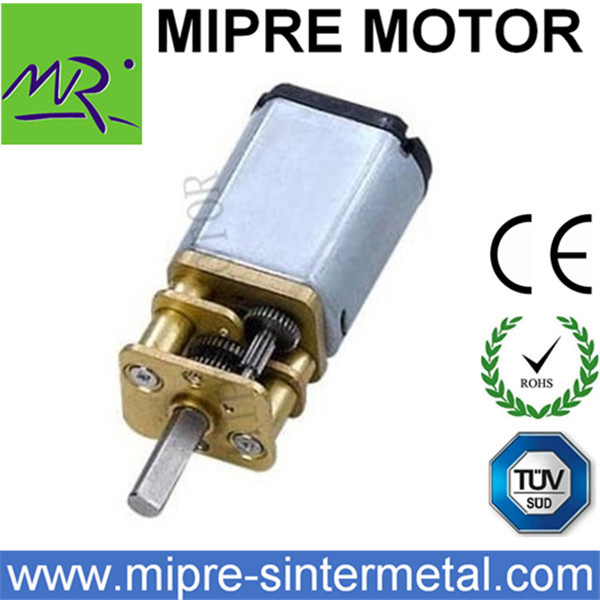

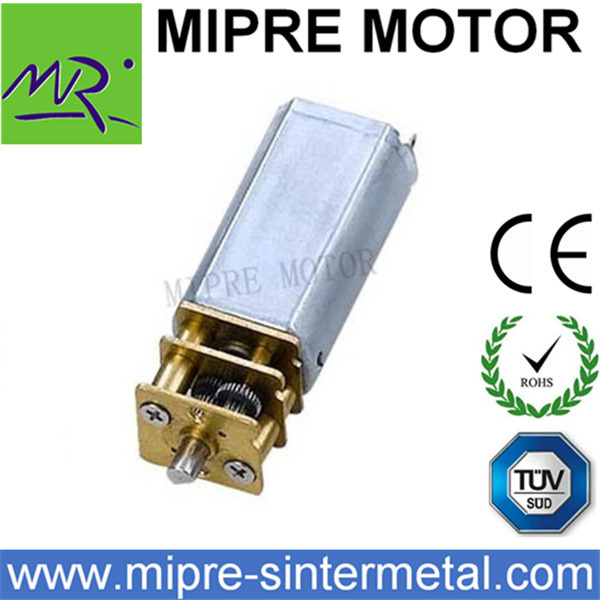

DC Gear Motor for Electronic Lock and Door Lock

Name: DC Gear Motor for Electronic Lock and Door Lock
Brand: all-electronics-online.com
SKU: 821943925
Availability: InStock
Rating: 4.5 (83 reviews)

Price:	US $ 2.879-3.788/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MR-12SSN20
Usage:	Electric Lock
Application:	Lock
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Certification:	Ce, RoHS
Brand:	Mipre

Product Description

SPECIFICATION

Dia 12mm DC Spur Geared Motor
Model No.: MR-12SSN20

1. Typical Applications:

Instrument, Digital product, Automatic door-lock,
Medical equipment, Security monitoring

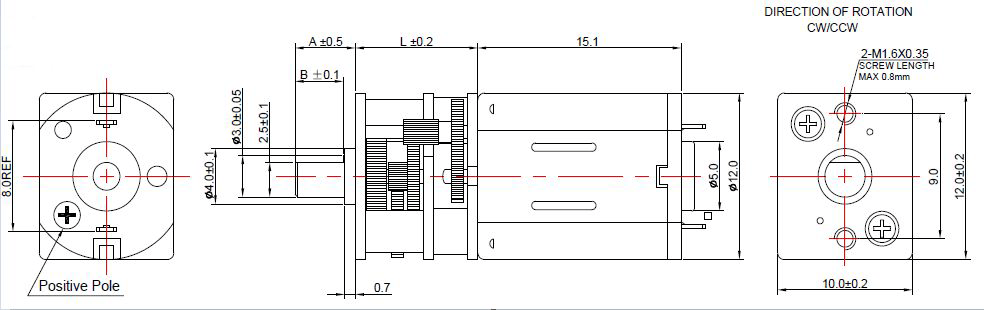

2. Diamensions(mm)

Customization:
-Length A,B
-Technical Data
-Shaft Shape

3.Gearbox data.

Number of stages

Reduction ratio

10,20

30,50,63,100

150,210,250,298,380

1000

Gearbox length 'L' mm

Breaking torque(kgf.cm)

0.6

0.9

1.2

Gearbox efficiency

81%

65%

59%

48%

4.Driving motor data.

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
MR-N20-0310000	3	≤50	10000	≤185	8000	2	0.2	≥8	≥350
MR-N20-0315000	3	≤80	15000	≤280	12400	3	0.4	≥12	≥520
MR-N20-0320000	3	≤110	20000	≤370	15500	4	0.6	≥16	≥700
MR-N20-0610000	6	≤25	10000	≤95	8000	2	0.2	≥8	≥160
MR-N20-0615000	6	≤40	15000	≤145	12400	3	0.4	≥12	≥250
MR-N20-0620000	6	≤60	20000	≤190	15500	4	0.6	≥16	≥320

5. Gear motor data.

Model No.

Voltage

No load

On load

Operating range(V)

Current

Speed

Current

Speed

Torque

Output power

r/min

kgf.cm

MR-12SSN20-03103

3.0

0.04

102.7

0.14

77.9

0.16

0.13

MR-122SSN20-03504

3.0

0.09

503.7

0.28

376.44

0.08

0.32

MR-12SSN20-03111

3.0

0.07

110.7

0.27

87.3

0.28

0.25

MR-12SSN20-0323

3.0

0.14

22.6

0.34

15.3

1.50

0.24

MR-12SSN20-04.5486

4.5

0.10

485.9

0.25

336.3

0.09

0.33

MR-12SSN20-04.5351

4.5

0.03

351.1

0.14

299.5

0.10

0.33

MR-12SSN20-0562

5.0

0.04

61.7

0.15

47.3

0.50

0.24

MR-12SSN20-0549

5.0

0.03

48.8

0.12

38.6

0.50

0.20

MR-12SSN20-05123

5.0

0.04

122.6

0.18

99.4

0.30

0.32

MR-12SSN20-06395

6.0

0.03

394.7

0.09

366.1

0.04

0.24

MR-12SSN20-0635

6.0

0.03

34.7

0.06

26.0

0.38

0.10

MR-12SSN20-06108

6.0

0.04

108

0.14

0.66

0.26

MR-12SSN20-12400

12.0

0.035

400

0.12

310

0.11

0.35

MR-12SSN20-12135

12.0

0.04

134.8

0.12

99.4

0.45

0.46

MR-12SSN20-12273

12.0

0.02

72.6

0.08

60.1

0.60

0.38

Remarks
-The shaft can be customized . -The data sheet is only for your reference .
-The gearbox can match other motor. -The speed is adjustable as per your request .
