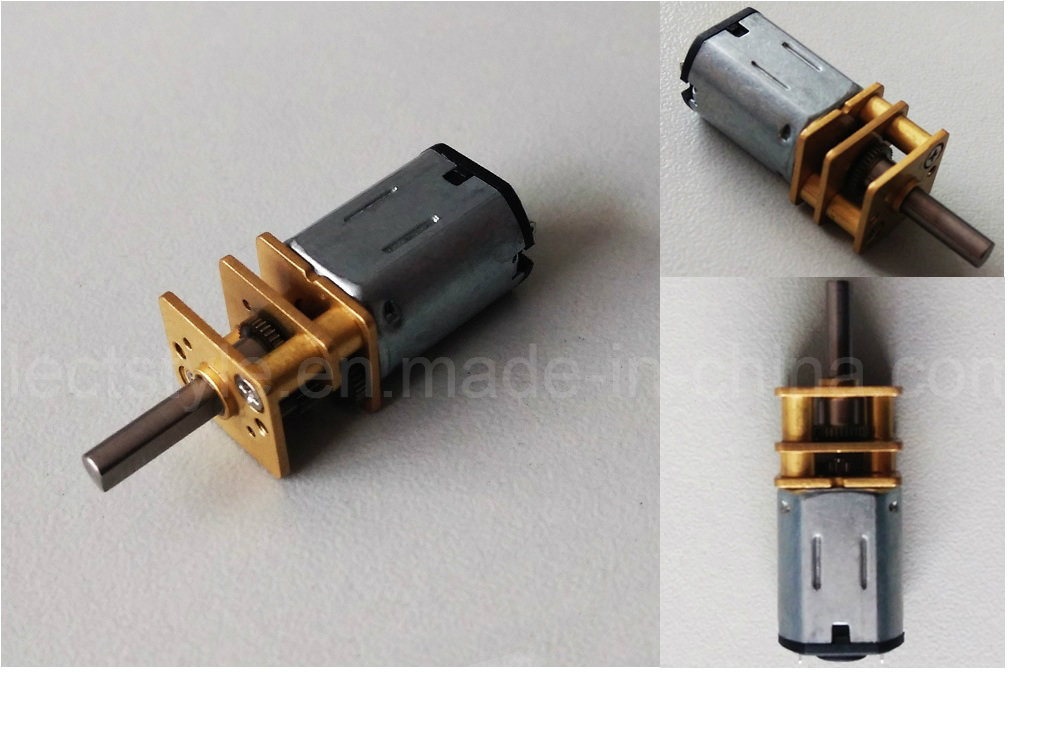

DC Gear Motor (N20)

Name: DC Gear Motor (N20)
Brand: all-electronics-online.com
SKU: 755821935
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	N20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	N20
Motor Type:	Brushless DC Motor
Torque:	5(Nm)
Speed(Rpm):	0~5000(Rpm)
Voltage(V):	3\6\12\24(V)
Output Power:	40(W)
Place Of Origin:	Hangzhou
Usage:	Electric Curtain
Structure And Working Principle:	Brushless
Operating Speed:	Low Speed
Application:	Power Tools
Excitation Mode:	Excited
Brand:	Lectstyle

Product Description

Product Description
1. Voltage: 3V, 4.5V, 5V, 6V, 7V, 9V, 12V,24V

2. Speed: 10rpm, 20rpm, 25rpm, 30rpm, 40rpm, 50rpm, 70rpm, 100rpm, 150rpm, 200rpm, 250rpm, 300rpm, 350rpm, 400rpm
500rpm, 700rpm, 1000rpm, 3000rpm and so on Other special speed can be requirement

3. Ratio: 1: 10-1: 1000

4. High Stall torque from 0.1-5.5kg. Cm.

5. Dimension: 12mm dia gearbox, 15mm motor body length, 3mm shaft diameter 4.4mm, 8mm and 10mm standard shaft length

6. Application in: Robot, Automatic Door Lock, Toys, Camera, Monitor, hair curler

7. Reduction Ratio 1: 10, 1: 20, 1: 30, 1: 50, 1: 63, 1: 100, 1: 150, 1: 210 1: 250, 1: 298, 1: 380, 1: 1000

Please fell free to contact with me if you have this motor specificaton or drawing.

Dimension:

Model	Ratio	Voltage	No Load		At Maximum Efficiency				Stall
		Voltage	Speed	Current	Speed	Current	Torque	Output	Torque	Current
		V	r/min	mA	r/min	mA	g.cm	W	g.cm	mA
N20AGB1000-07280	1/1000	5	10	40	9	65	600	0.30	3600	380
N20AGB1000-09168	1/1000	6	21	60	19	130	1000	0.35	5500	820
N20AGB298-09195	1/298	6	52	40	45	120	400	0.2	1800	520
N20AGB298-09168	1/298	6	72	50	62	140	480	0.25	2400	820
N20AGB298-11115	1/298	6	100	80	85	250	600	0.30	3500	1650
N20AGB100-08230	1/100	12	300	50	150	180	350	0.35	1800	950
N20AGB50-09168	1/50	6	420	70	320	230	160	0.20	800	900
N20AGB50-08230	1/50	12	580	50	440	230	250	0.27	1300	950
N20AGB20-09168	1/20	7	1250	70	1000	210	60	0.18	300	950
