DC Geared Motor (for coffee machine)

Name: DC Geared Motor (for coffee machine)
Brand: all-electronics-online.com
SKU: 822123715
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	US $ 3.996-6.061/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MR-37SR3525
Usage:	Coffee Machine
Application:	Lock
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Certification:	Ce,RoHS
Brand:	Mipre

Product Description

SPECIFICATION

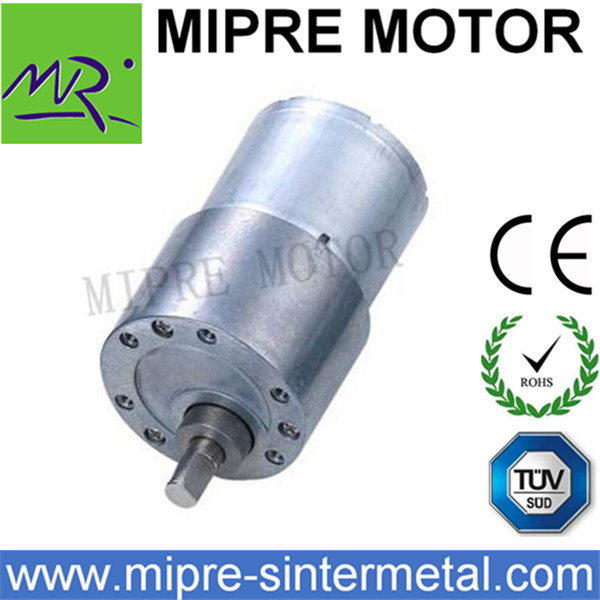

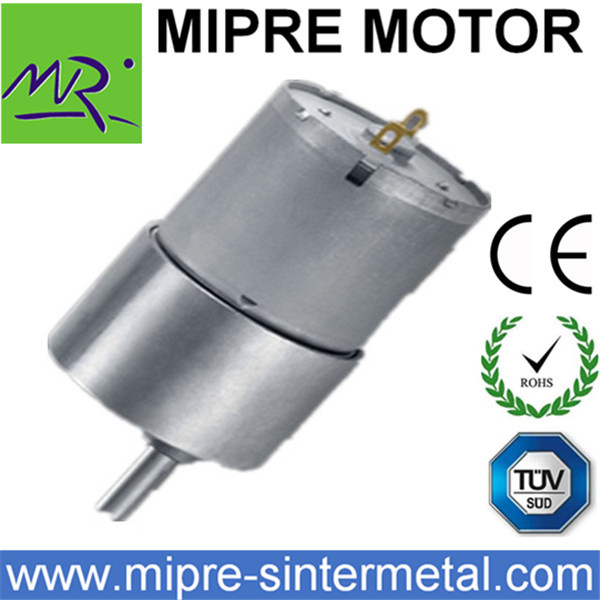

		Dia 37mm DC Geared Motor
		Model No.: MR-37SR3525
		1. Typical Applications:
		Vending Machine Dispenser
		Valve/EPB/Robot/Model Power Tool
		Satellite/Solar system
Weight: 225g(approx.)

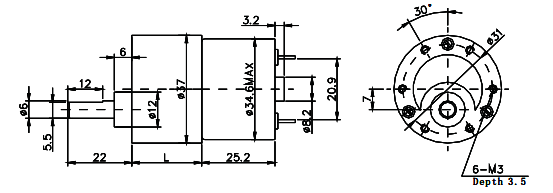

2. Diamensions(mm)

Customization:

-Technical Data
-Shaft Shape

Gearbox length L(mm)	Number of stage		General reduction ratios
22.5	2		1/6.5	1/9.3	1/10
	3		1/15	1/19.5	1/20	1/24	1/30
	4		1/40	1/50	1/60	1/65	1/69	1/71	1/89
27.5	5		1/120	1/150	1/165	1/180	1/211	1/259	1/270
	6		1/360	1/450	1/540	1/622	1/628	1/810	1/1084
3. Technical data
Model No.			Voltage		No load		On load
			Operating range(V)	Nominal	Current	Speed	Current	Torque	Speed
				V	A	r/min	A	kgf.cm	r/min
MR-37SR3525-0660			4.5-7.2	6	0.05	60	0.15	0.8	50
MR-37SR3525-12600			6.0-12.0	12	0.06	600	0.25	0.4	500
MR-37SR3525-1285			6.0-12.0	12	0.06	85	0.25	2.3	71
MR-37SR3525-1240			6.0-12.0	12	0.06	40	0.25	4.5	33
MR-37SR3525-1228			6.0-12.0	12	0.06	28	0.25	6.3	23
MR-37SR3525-1213			6.0-12.0	12	0.06	13	0.25	8	11

Remarks
-The data sheet is only for your reference . -The speed is adjustable as your request .
-The gearbox can match other motor. -The shaft can be customized .

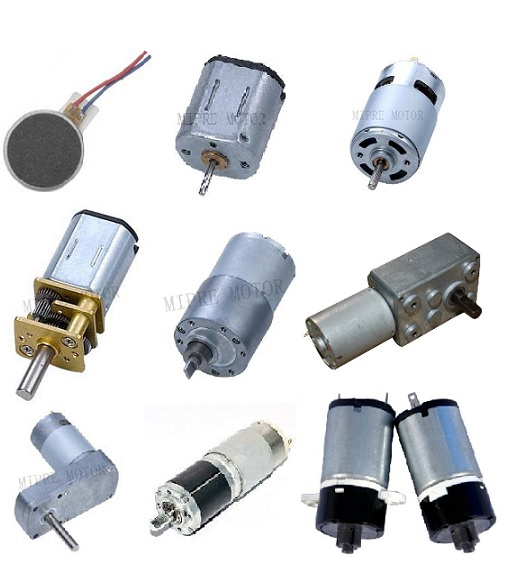

Related motors

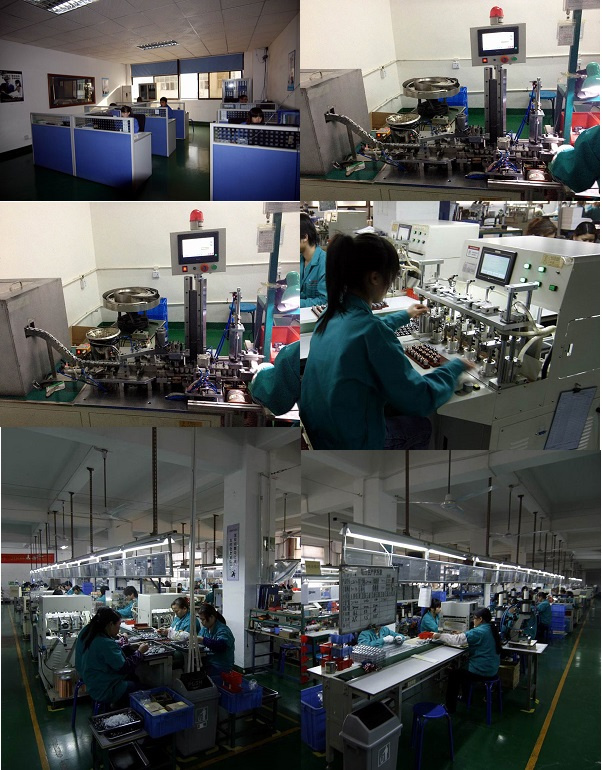

Our company:
