DC Input 18~36V SD-50b-12 DC Power Supply

Name: DC Input 18~36V SD-50b-12 DC Power Supply
Brand: all-electronics-online.com
SKU: 832032625
Availability: InStock
Rating: 4.5 (99 reviews)

Price:	US $ 13-16/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SD-50B-12
Output Current:	4.2A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	0.48kg
MOQ:	1-5PCS
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

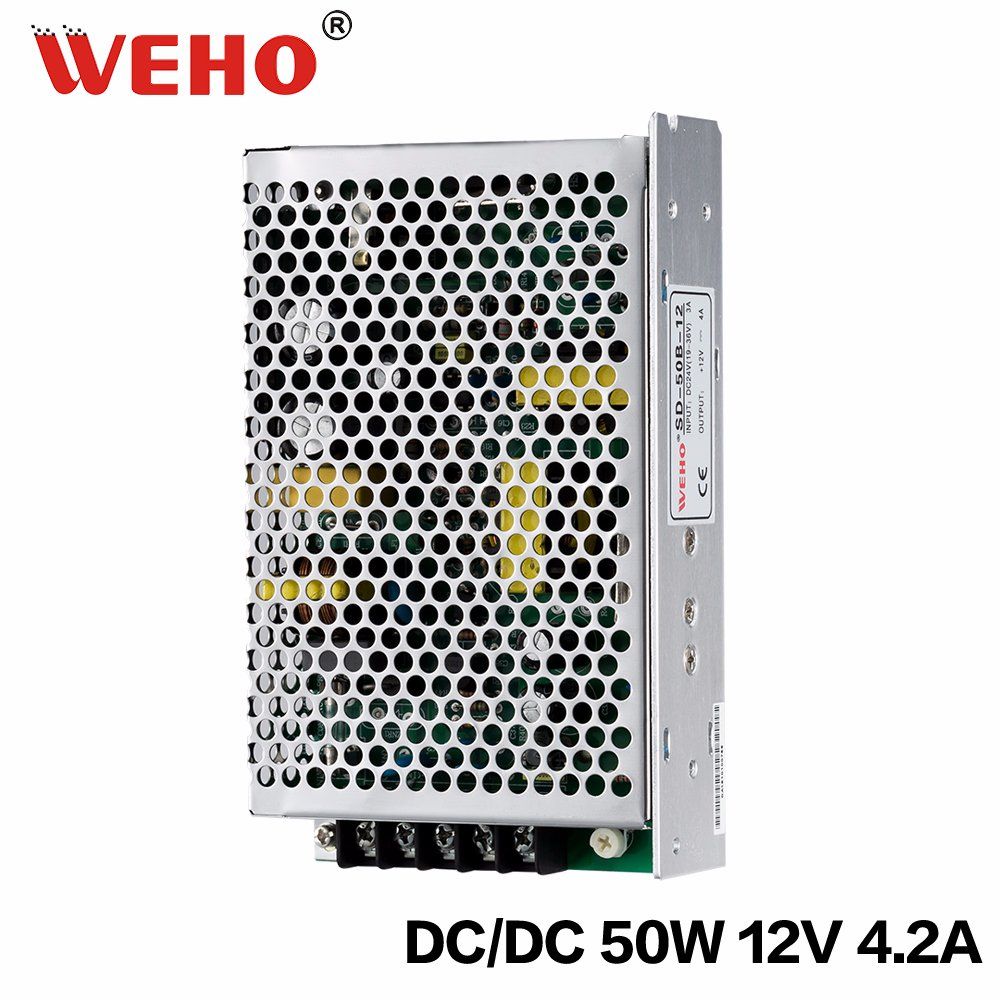

DC / DC 50W 12V Switching Power Supply

Features:

1. DC Input A: 9.2~18V / B: 18~36V / C: 36~72V

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Specifications:

MODEL	SD-50A-05	SD-50B-05	SD-50C-05	SD-50A-12	SD-50B-12	SD-50C-12	SD-50A-24	SD-50B-24	SD-50C-24
OUTPUT	5V			12V			24V
	10A			4.2A			2.1
	0~10A			0~4.2A			0~2.1A
	50W			50W			50W
	100mVp-p			120mVp-p			150mVp-p
	4.5-5.5VDC			10.5~13.2VDC			21.6~25.4VDC
	±2.0%			±1.0%			±1.0%
	±0.5%			±0.3%			±0.2%
	±0.5%			±0.3%			±0.2%
	2.5s, 50ms ,.....12VDC/24VDC/48VDC at full load
INPUT	A: 9.2~18VDC B: 19~36VDC C:36~72VDC
	70%	73%	76%	72%	75%	78%	74%	80%	83%
	7A/12VDC 3A/24VDC 1.5A/48VDC
PROTECTION	105~160% rated output power
	Protection type :Hiccup mode ,recovers automatically after fault condition is removed
	5.75~6.75V			13.8~16.2V			27.6~32.4V
	Protection type : shut down o/p voltage,re-power on to recover
ENVIRONMENT	~10~+60°C(Refer to output load derating curve)
	20~90%RH non-condensing
	~20~+85°C ,10~95%RH
	±0.03%/°C(0~50°C)
	10~500HZ , 2G 10min./1cycle,60min.each along X,Y,Z axes
SAFETY&EMC(Note4)	I/P~O/P: 2KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC
	I/P~O/P,I/P~FG,O/P~FG:100M Ohms/500VDC/25°C/70% RH
	Compliance to EN55022(CISPR22) CLASS B
	Compliance to EN61000-4-2,3,4,6,8:ENV50204,EN55024,light industry level ,criteria A
OTHERS	1599738mm(LWH)
	0.48kg,24 PCS/12.7kg

Our Workshop:

Packaging:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
