Hongfarad Electronic (HK) Limited >> DC Link Dry Type Dpa Film Capacitor Can Replace Electrolytic Capacitor

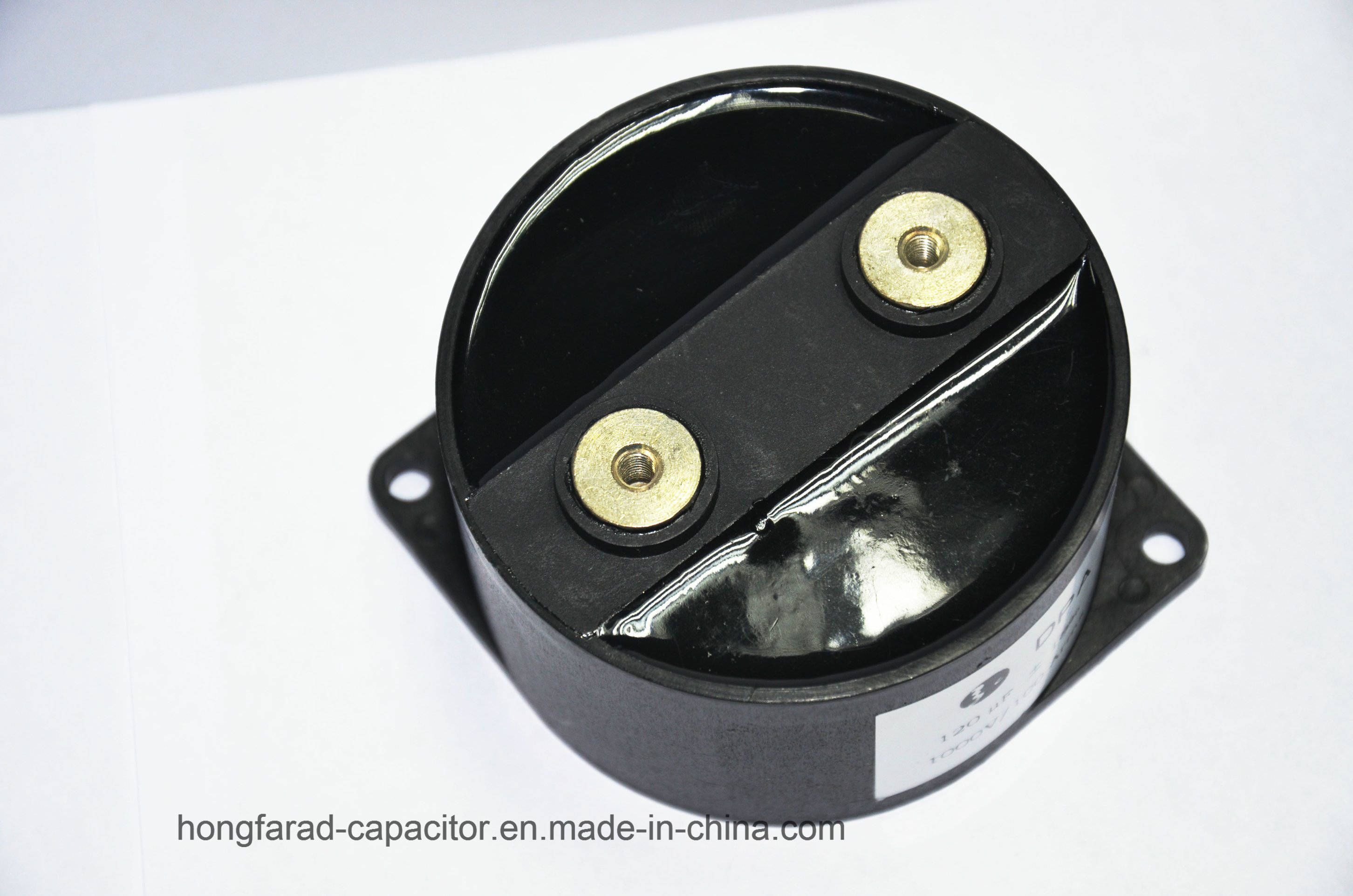

DC Link Dry Type Dpa Film Capacitor Can Replace Electrolytic Capacitor

DC Link Dry Type Dpa Film Capacitor Can Replace Electrolytic Capacitor
Price: US $ 5.2-10.88/Piece
Min Order: 1000/Piece
Pay Type: T/T
Prod Model: DPA
Application: High Voltage
Package Type: Through Hole
Type: Power Electronic Capacitor
Capacitance: 47UF~600UF
Manufacturing Material: Plastic Case,Filled with Resin
Usage: Wind Power and Solar Power

Product Description

Product Description

Features

Used in DC-Link circuits,can replace electrolytic capacitor
Low ESR,high ripple current handling capacitor
Low Ls
Self-Healing property
Long lifetime
Plastic case,filled with resin

 Applications
Used in inverters of wind power and solar power
Transportation:EV or HEV
Welders,Elevators,Motor Driver systems

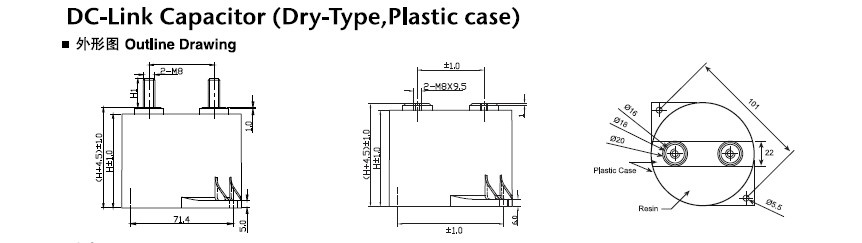

Outline Drawing

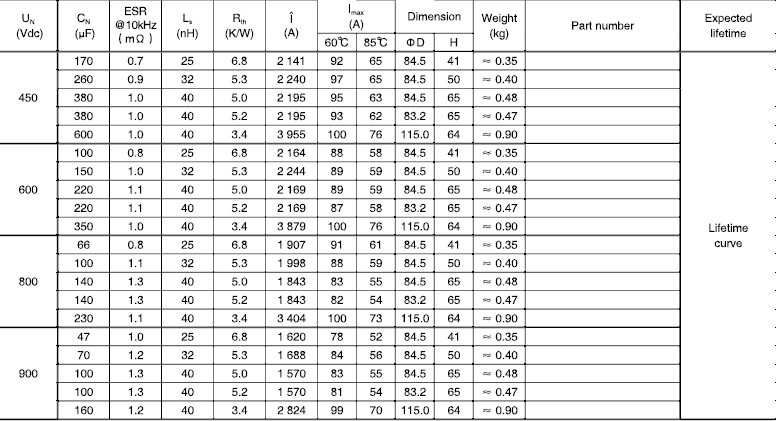

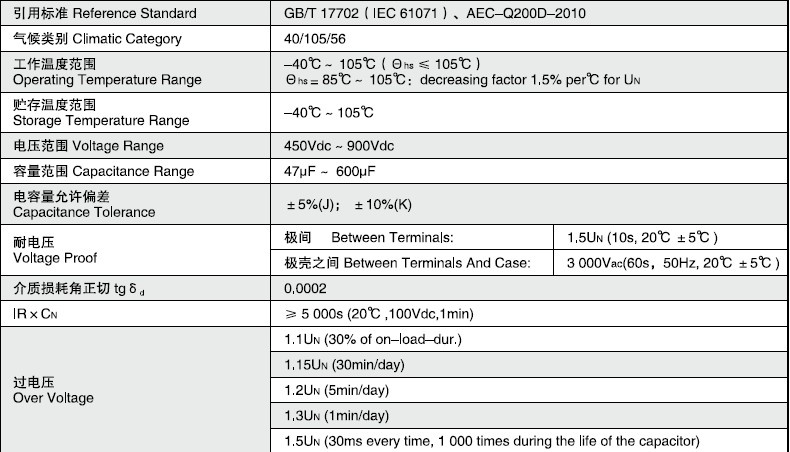

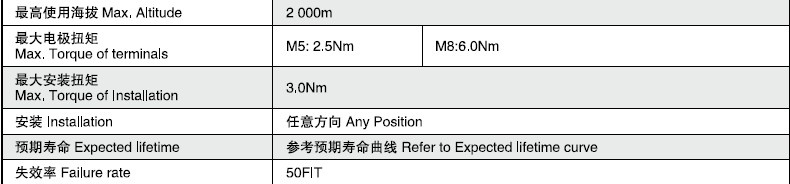

Specifications





Snubber capacitor for IGBT
  Dimensions(mm)

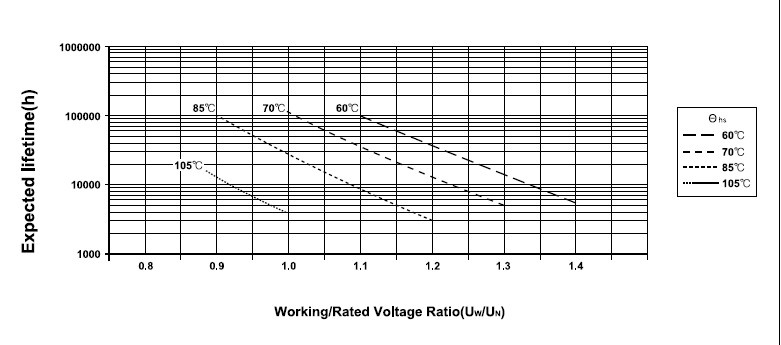

Expected lifetime curve






Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers

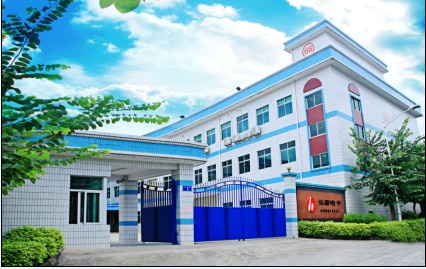

Company Information

Welcome to visit our factory!





Our Capacitors can take 110C Heat

Hongfarad' capacitors can safely reach operating temperatures of up to 110C, which is 30C higher than the industry average. We ensure this durability by incorporating top-notch components from Germany, Japan and South Korea. These factors have attracted the repeat business of multinationals like Samsung, LG, GE, etc.

Offering Halogen-free and RoHS-compliant Products

All of our products are both halogen-free and compliant with the RoHS Directive, giving them added value in the eyes of environmentally conscious consumers. Our 30 QC staff members, each with over seven years of experience, ensure our defect rate remains close to zero percent. Our R&D team develops one to three new products every quarter to keep you up to speed with the latest industry innovations.

We Keep 2 Million Units In-stock

We deliver your finished orders in less than two weeks, ensuring you meet your time-to-market objectives. This speed is assured by the fact that we keep two million units in-stock at all times. It also results in sample delivery lead times as short as 24 hours. Contact us today.
