DC Link Power Capacitor for Solar Wind Power Capacitor

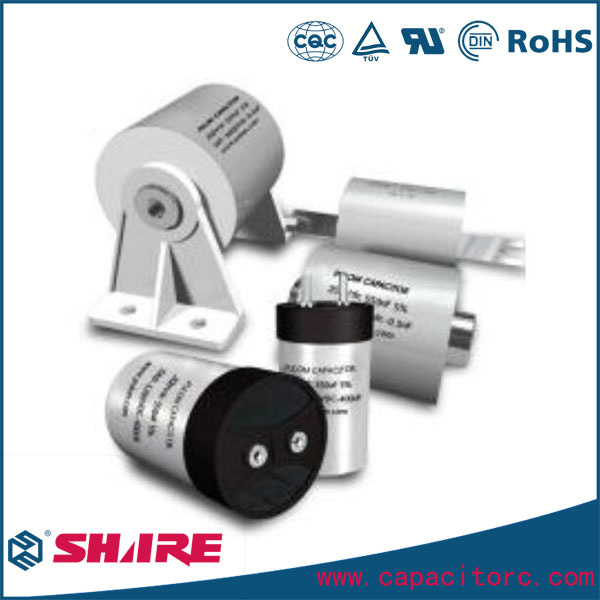

Name: DC Link Power Capacitor for Solar Wind Power Capacitor
Brand: all-electronics-online.com
SKU: 802091225
Availability: InStock
Rating: 4.4 (90 reviews)

Price:	US $ 1-5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DC Link CAPACITOR
Type:	Polypropylene Capacitor
Application:	IGBT Snubber,Inverter Welder,UPS
Package Type:	Through Hole
Capacitance:	10~5000UF
Electrolyte:	Oil
Usage:	Photovoltaic DC Link Capacitor
Filter:	Film Capacitor

Product Description

DC Link Capacitor for Wind Power,Solar Power Capacitor
The Composite Capacitor can be also customized producing according to our customer's request.
The capacitor for power electronic are use of metal-based thin-film without a sense of style winding&special spray gold process, molded case,or Myra tape packaging, fire-retardant epoxy resin seal, copper bolts, copper nuts or inserts leads.metallized polypropylene structure;excellent electric property;self-healing property;long lifetime;DC-link capacitor;Used in DC-Link circuits; Can replace electrolytic capacitor; Low ESR, high ripple current handling capabilities;Low Inductance;Self-healing property&period.

Capacitor Specifications:

Basic specifications
Model	photovoltaic DC link capacitor
Type	Oil Type DC-Link Filter Capacitor for Power Industry Inverter
Capacitance	10~5000uF
Capacitance Tolerance	±5%
Rated Voltage	500~5000VDC
Structure	Film Capacitor
Manufacturing Material	Polypropylene
Electrolyte	Electric Heating
Class of Operation	Class B&Class C
Class of Safety Production	P2&P1
Package Type	Export Carton for DC Link Capacitor
Production Capacity	50000pcs per Month
MOQ	10pcs
Size	Available on Request&Customized Capacitor

Technical Specifications:

Temperature Range	-40°C~85°C
Capacity Range	47uF~12000μF
Capacitance deviation	±5%;±10%
Voltage	500VDC~15000VDC
Dielectric	1.5UN/60S
Dissipation	tgδ≤0.002(at 1KHz)
Insulation resistance	CxRs≥5000S(at20°C 100V.DC 60S)
Shock current capability	dv/dt>50v/μs
Flammability	UL94V-0
Stray inductance	≤30nH
Effective Current	10~80A
Reference Standard	Enterprise standards in line with IEC61071 ;IEC61881;GB17702
Case components	aluminum,plastic,304 stanless steel
Terminals	tinned brass nut or screws
Installation	whatever installation
Failure rate	50 FIT

Application:
DC link capacitor is mainly used for IGBT; Photovoltaic;UPS;Inverter; Electroplating power supply;Inverter welder; Inverter and induction heating equipment;Solar Power; Magnetizater; Filter; Pulse; Inverter Welding machines; Filter and other Electric and Electronic equipment used for filtering.

SHARE ELECTRONIC Company is a world-leading capacitor producer.

Our company was set up in 2008, NingGuo province. Since then, our company has

Been drived by an innovation system which centered on the needs of our

Customers. Such kind of system provid us a sustaining and healthy development

And help us to become one of the largest capacitor producer around the world. We

Has an annual aluminium electrolytic capacitor production capacity of 500 million

And our customers are covered more than 30 countries and regions all over the

World.

Our company has a scientific mangement and strong technical force. We estabished

A quality control system in accordance with the idea that quality is the basis of

Survival.

In the Internet era, we implement two strategic transformation. One is the business

Transformation. It means that we paid more attention on saling service instead of

Saling products. The other is the business mode transformation. We changed our

Business mode from the traditional one to a win-win situation. The orgainzational

Structure of SHARE is changed corresponding to the needs of the market.

It forms the organizational strucuture of flat network with the innovative basis of

Independent marketing units, driving the employees directly facing the market to

Acquire and satisfy the fragment and personnalized demand of the customers.

SHARE is becoming the leading global brand with the innovation through a winwin

Business form in the era of the Internet.
