Nanjing KJT Electric Co., LTD >> DC - M12 Retro Reflection Infrared Photoelectric Sensor

DC - M12 Retro Reflection Infrared Photoelectric Sensor

DC - M12 Retro Reflection Infrared Photoelectric Sensor
Price: Negotiable/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Voltage Type: 10-36VDC Voltage
Protection Degree: IP 65
Response Time: <8.2ms
Sensing Distance Range: Adjustable
Feature: Laser

Product Description

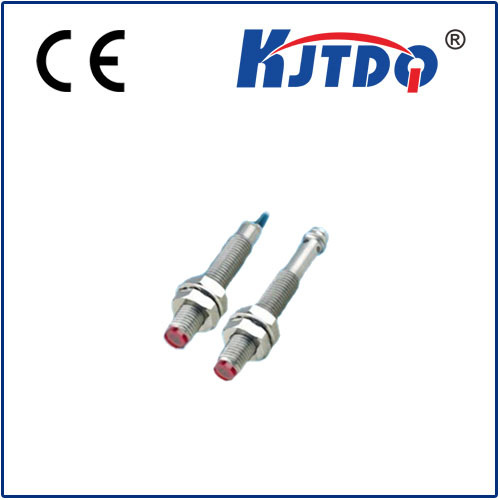

DC - M12  Retro reflection Infrared  Photoelectric sensor
Detailed Product Description

Features:

----Easy to set up and adjust distance.
----Short-circuit protection, reverse polarity protection.
----Cable and connector connection optional.
----Stainless steel housing, strong and durable. Plastic housing, eonomical and easy to install.
----Light on/dark on conversion function.
----Built-in power supply, AC, DC or AC/DC universal Power supply.
----Relay output, capacity up to 250VAC*3A

Variety:

----Diffuse reflection type
----Retro reflection type
----Through beam type

Housing size [mm]      M12*55
   Thread size [mm]      M12*1*40
   Mode      Retro reflection
   SN      1m
   Light source      Infrared LED

(880nm)

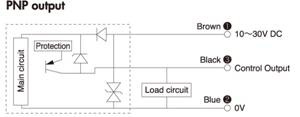

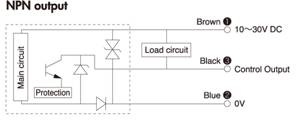

   Output     NPN/PNP NO/NC
   Power supply     10…30VDC
   Protection degree     IP67
   Response time     Max,8.2ms
   Hysteresis     3…20%
   Repeat accuracy     ≤5%
   Load current     ≤200mA
   Residual voltage     ≤2.5V
   Consumption current     ≤25mA
   Protection circuit     Surge, reverse  polarity and
short-circuit
   Indicator     Yellow LED
   Ambient temp.[ºC]     -15…55ºC
   Ambient RH     35…95%
   Housing material     Nickel plated brass
   Connection     PVC Cable 2m





Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.

Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
