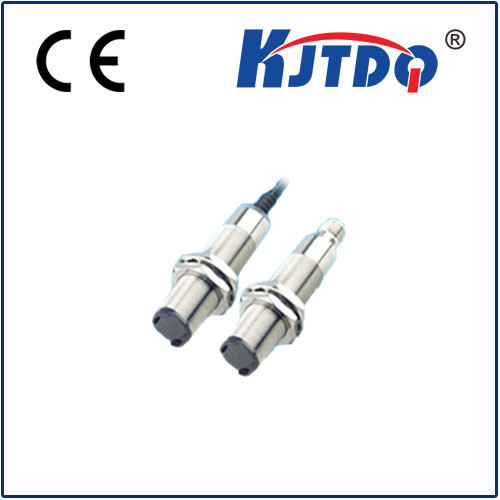

DC-M18 Retro Reflection Infrared Photoelectric Sensor

DC-M18 Retro Reflection Infrared Photoelectric Sensor
Price: Negotiable/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Voltage Type: 10-36VDC Voltage
Protection Degree: IP 65
Response Time: <8.2ms
Sensing Distance Range: Adjustable
Type: Photoelectric Sensor
Feature: Standard

Product Description

DC - M18  Retro reflection Infrared  Photoelectric sensor
Detailed Product Description

Features:

----Easy to set up and adjust distance.
----Short-circuit protection, reverse polarity protection.
----Cable and connector connection optional.
----Stainless steel housing, strong and durable. Plastic housing, eonomical and easy to install.
----Light on/dark on conversion function.
----Built-in power supply, AC, DC or AC/DC universal Power supply.
----Relay output, capacity up to 250VAC*3A

Variety:

----Diffuse reflection type
----Retro reflection type
----Through beam type

   Housing size [mm]     M18*63
   Thread size [mm]     M18*1*45
   Mode     Retro reflection
   SN [mm]     2m
   Light source     Infrared LED

(880nm)

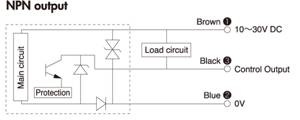

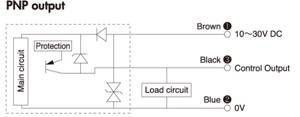

   Output     NPN/PNP NO/NC/NO+NC
   Power supply     10…30VDC
   Response time     Max,8.2ms
   Repeat accuracy      ≤5%
   Load current [mA]      ≤200mA
   Residual voltage      ≤2.5V
   Consumption current [mA]      ≤25mA
   Protection circuit     Surge, reverse polarity and short-circuit
   Indicator     Yellow LED
   Ambient temp.[ºC]     -15…55ºC
   Ambient RH      35…95%
   Protection degree     IP67
   Housing material      Nickel plated brass/ABS/PC
   Connection      PVC Cable 2m
