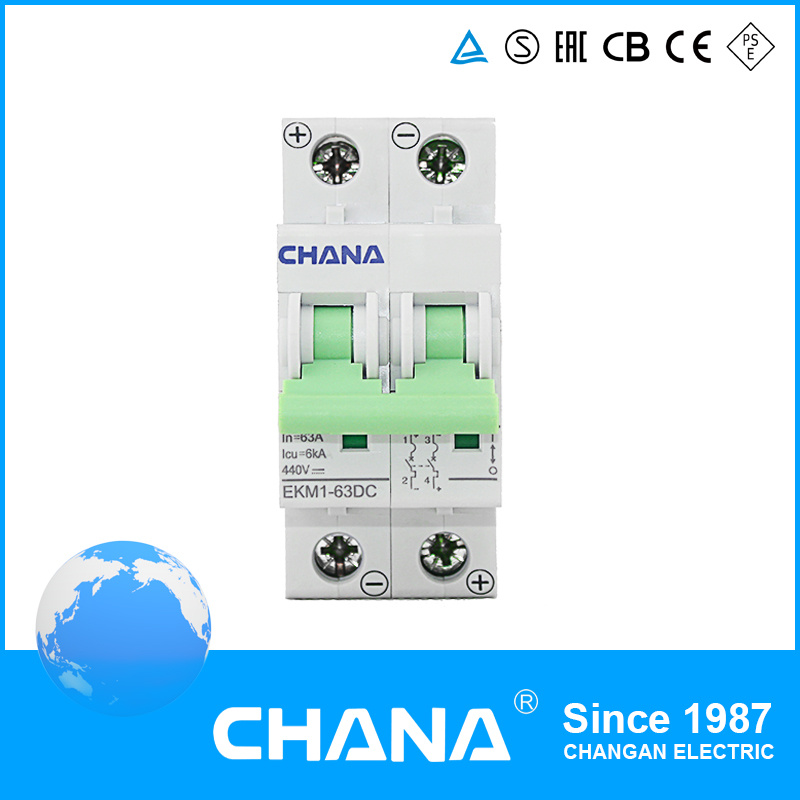

DC MCB Miniature Circuit Breaker for Solar Power

Name: DC MCB Miniature Circuit Breaker for Solar Power
Brand: all-electronics-online.com
SKU: 744853525
Availability: InStock
Rating: 4.4 (116 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKM1-63DC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage Range:	127VDC to 800VDC
Use Area:	PV System
Voltage:	220V
Ampere:	6-63A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCB
Certification:	CE
Poles Number:	1p,2p,3p,4p

Product Description

DC mini circuit breaker from 127VDC to 800VDC
MCB MINI CIRCUIT BREAKER: BN60 (INDEPENT INTELLIGENT PROPERTY RIGHTS)
1. Techonogy details:
Rated current of frame class(Inm)63A
Rated voltage (Ue)50Hz/60Hz, 6-1000V;
Rated current (In)1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Breaking capacity of rated limit short circuit(Icu)6KA, 8KA, 10KA, 15KA
Breaking capacity of rated operating short circuit(Ics)7500A
Pole no. 1P, 2P, 3P, 4P
Mechanical life service 20000/times
Electrical life service 8000 times
Type and tripping current scope of instantaneous release Model (Curve ):
B 3In-5In, C 5In-10In, D 10In-50In
Voltage Type: AC or DC

2. Used in the field:
DC Series MCB is used in Photovoltaic, Solar Energy, Communication, Ship, Motorcycle, Equipment...
Rated voltage: 6~250V 1P; 36~500V 2P; 80~750V 3P; 220~1000V 4P;

3. MCB size: Installation DEMENSION: HXDXW: 80X70XW MM

Crust Grade Rating Current Imm(A)	Pole	Rating Voltage (V)	Rating Current In(A)	Rated limit short circuit capability		Instantaneous trip
				Breaking Current Icu(A)	Time(ms)
63A	1	DC125V	1, 2, 3, 4, 5, 6, 10, 15, 16, 20, 25, 32, 40, 50, 63	6000/10000	10	C, D
	2	DC250V/550V
	4	DC800V/1000V
Test	Type	Test Current	Original State	The tripping type does not release the time limit	Result	Remark
A	C, D	1.13In	Cold State	T≥1h (In≤63A)	No trip
B	C, D	1.45In	Following A Test	T<1h (In≤63A)	Trip	Current up steadily in 5
C	C	8In	Cold State	T≥0.1s	No trip	Shut auxiliary switch and connect the power
		12In		T<0.1s	Trip
D	D	10In	Cold State	T≥0.1s	No trip
		14In		T<0.1s	Trip

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
