| Prod Model: |
EKL1-63DC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DC Voltage Range: |
127VDC to 800VDC |
| Number Of Pole: |
1p, 2p, 3p, 4p |
| Amperes: |
6A-63A |
| Material: |
PA |
| MCB Breaking Capacity: |
10ka |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Structure: |
MCB |
| Certification: |
CE |
| Function: |
DC Circuit Breaker for Solar System |
| Poles Number: |
1p, 2p, 3p, 4p |
| Installation: |
DIN-Rail |
Product Description

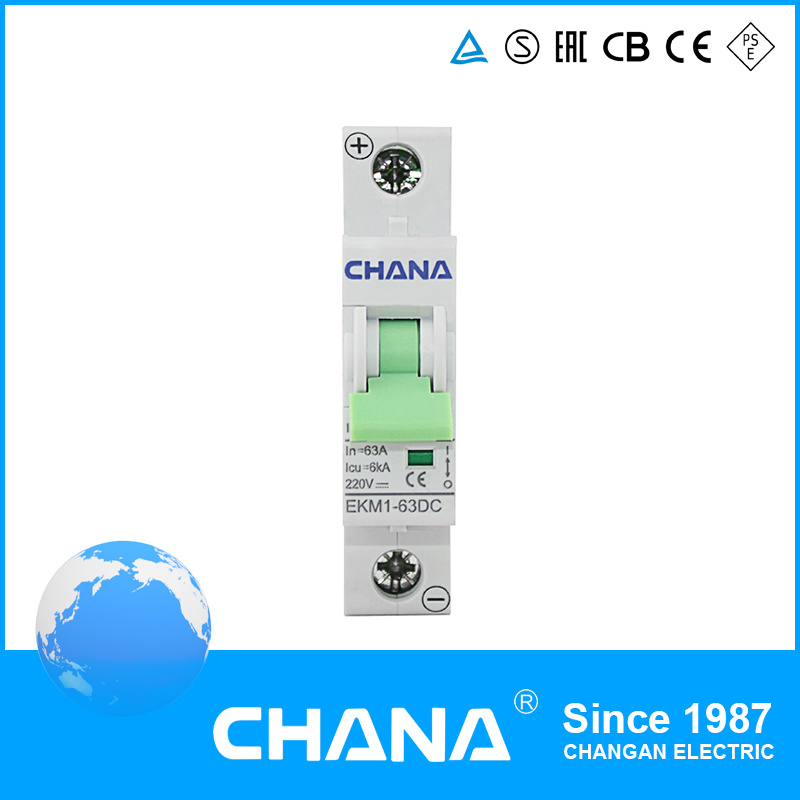

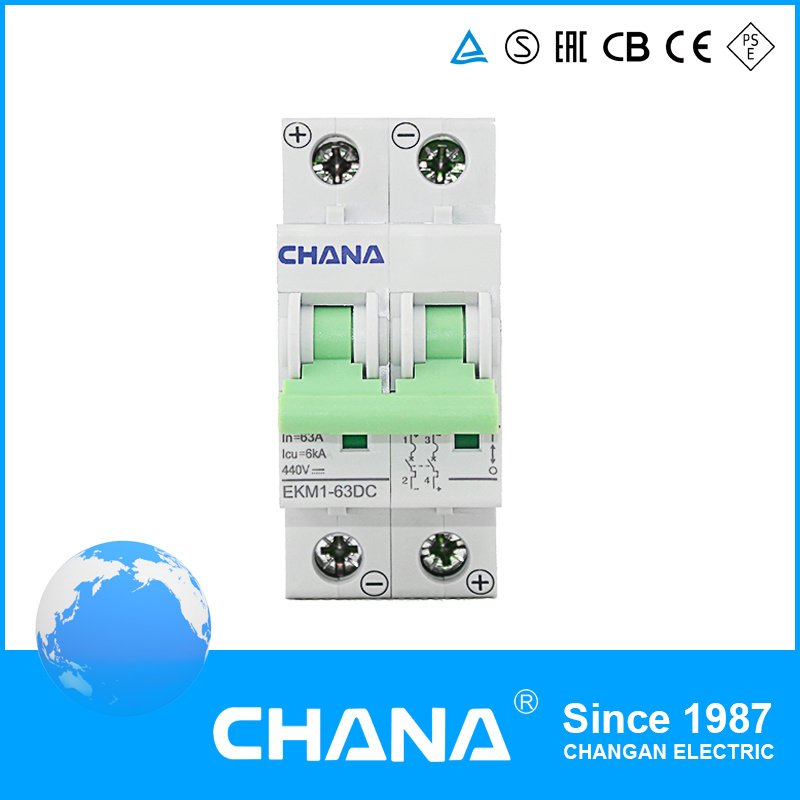

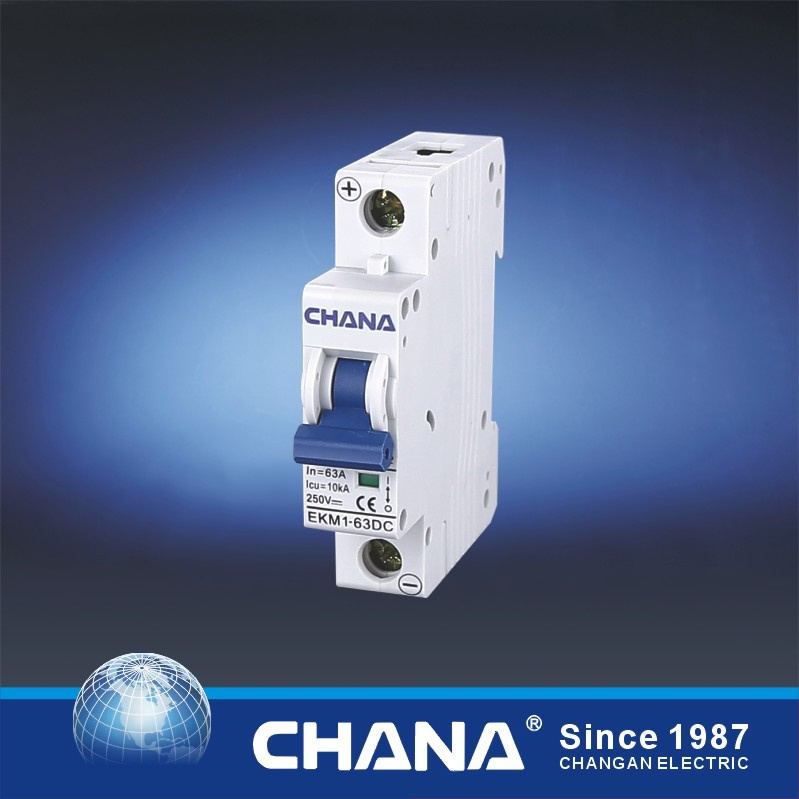

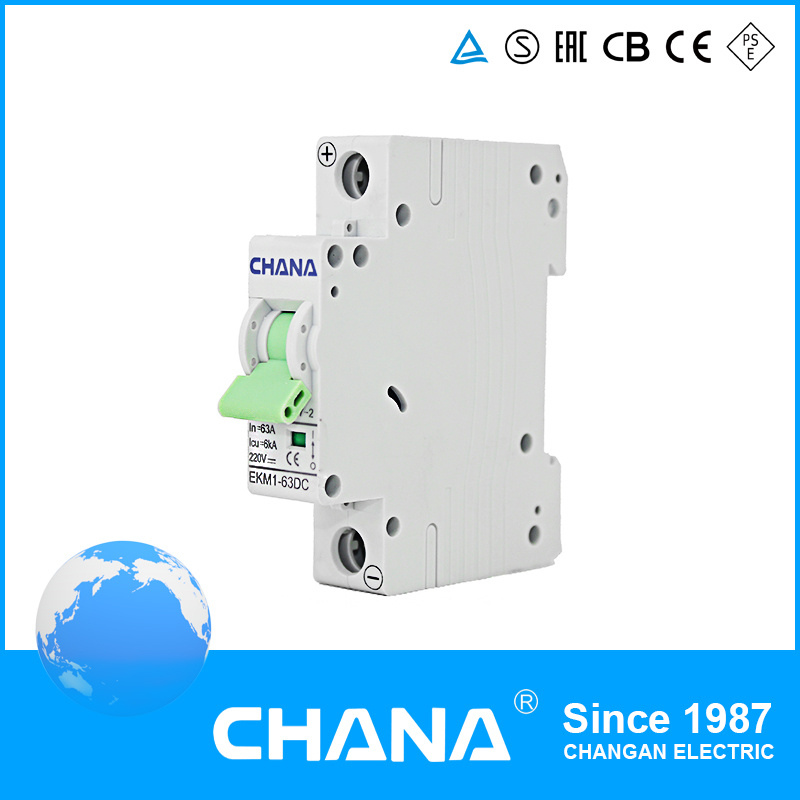

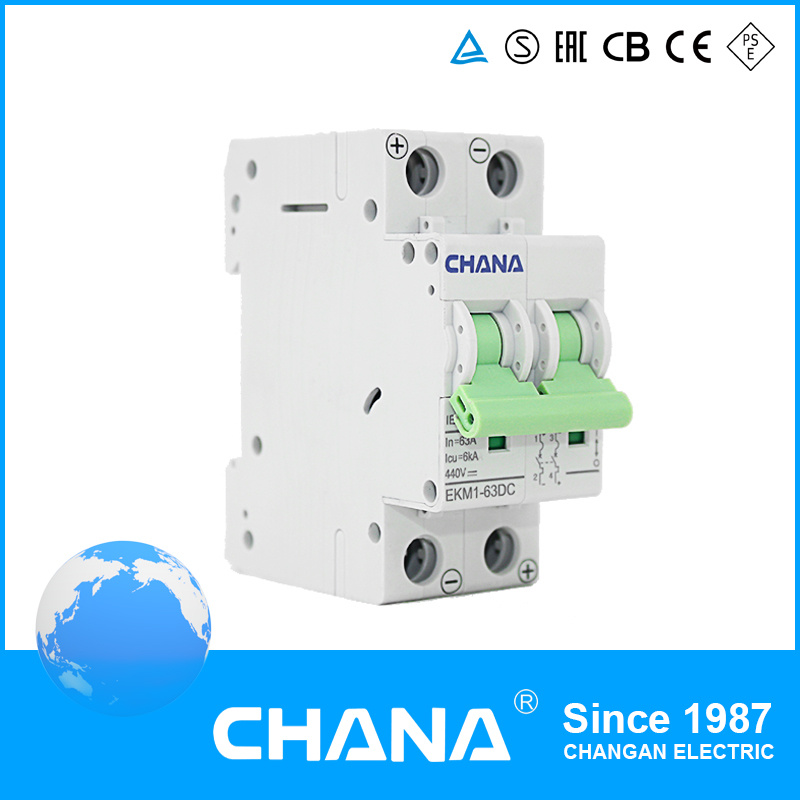

DC mini circuit breaker
Specifications
DC circuit breakers, DC MCB
OEM SERVICE factory circuit breakers
High quality
Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 6A
Application
EKL1-63D Series DC Miniature Circuit Breaker, apply to rating current 63A or less. It is mainly used for the overloading and short circuit protection in DC distribution system equipment, solar / photovoltaic power system and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products.
Products according to IEC60947-2 standard.
Characteristic
EKL1-63D DC circuit breaker is made up of case, operation mechanism, thermal overloading trip, electromagnetic trip contact system, arc system etc. It has overloading and short circuit protection, unique-design structure and strong permanent magnetism arc system make the product has 6KA short circuit capability. Long mechanical life over 20000 times and beautiful shape. It can be connected with DIN rail named TH35-7.5 standard stainless type and has the below personality: The handle is designed on the top of the front, people will feel safe and comfortable when operating. When connecting, pay attention to "+, -" poles; The power goes in from the top and comes out from the underside which is applied with power entrance character. Convenient for installation and saving cables. It is used for 440V circuit 3 poles circuit breaker to connect front loop for two poles serial connection
| rame degree rated current (A) | 63 |
| Electrical performance | |
| Ue Rated operating voltage(V DC) | AC250V AC415V DC440V DC550V DC800V DC1000V |
| Rated Current In (A) | 6-10-16-20-25-32-40-50-63 |
| Rated insulation voltage Ui (V DC) | 1000V |
| Rated Impact voltage Uimp(kV) | 4 |
| Ultimate breaking capacity Icu (kV) | 6 | 6 | 6 | 6 |
| Run breaking capacity Ics (%Icu) | 75% | 75% | 75% | 75% |
| Curve type | C |
| Trip type | Thermal-magnetic |
| MECHANICAL | Actual average value | 20000 |
| Standard value | 8500 |
| ELECTRIC | Actual average value | 2500 |
| Standard value | 1500 |
| Control and indication | |
| Shunt release (SHT) | Option |
|
|
|
| Undervoltage release (UNT) |
| Auxiliary contact(AX) |
| Alarm contact (AL) |
| Connection and installation | |
| Wiring capacity (mm2) | In≤ 32A, I~25mm2, I≥ 40A, 10~35 |
| Ambient temperature (º C) | -20~70 |
| Altitude | ≤ 2000 |
| Relative humidity | ≤ 95% |
| Pollution Level | 3 |
| Installation Environment | No obvious shock and vibration |
| Installation category | Class III |
| Installation | DIN Standard rail |
| Dimensions | W | 17.5 | 35 | 52.5 | 70 |
| | H | 80 | 80 | 80 | 80 |
| (W)*(H)*(Deep) | Deep | 71 | 71 | 71 | 71 |
| Weight(kg) | 0.12 | 0.24 | 0.36 | 0.48 |
