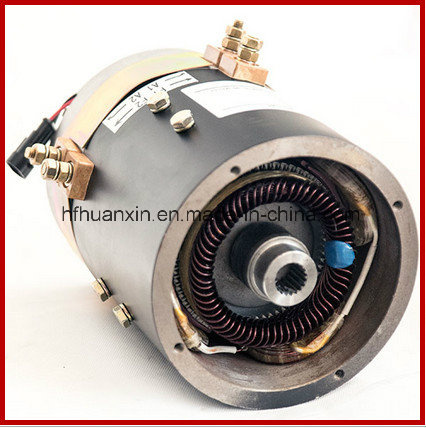

DC Motor 48V with High Efficiency for Electric Vehicles 3kw

Name: DC Motor 48V with High Efficiency for Electric Vehicles 3kw
Brand: all-electronics-online.com
SKU: 835061115
Availability: InStock
Rating: 4.5 (48 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XQ-3-4T
Brand Name:	AMD
Model Number:	Xq-3-4t
Commutation:	Brush
Voltage(V):	48V
Output Power:	3kw
Speed(Rpm):	2800 Rpm
Efficiency:	Ie 4
Port:	Shanghai
Package Environmental Rating:	IP20
Usage:	Electric Car
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brush
Brand:	AMD

Product Description

DC Motor 48V With High Efficiency For Electric Vehicles 3kW

Product Description:

Specifications:

Nominal power rate: 3 kW
Operating voltage: 48V
Flange option: a square flange (as shown in the photos) can be provided for easy installation
Speed sensor mating connector is included (different connector types are available. By default, an AMP waterproof 3-Pin connector is coming with the motor, for more details, please see the product diagram in PDF format)
Insulation: class H
Dimensions (L×Ø): 242 × 157 mm
Weight: 23 kg
Package environmental rating: IP20

Notice: this SepEx motor XQ-3-4T is the product of New United Group. New United Group is the co-working partner of Bombardier Industrial in China, a major manufacturer of tracting motor in the world.

Notice: XQ-3-4T can work with CURTIS 1268-5403 SepEx controller. We can also provide the controller assemblage of 1268-5403.

For more application details (spline, transmission, etc.), please contact us ...
Main Products:

Our Certification:

Our Exhibition:

Packaging & Shipping:

Package:Normally we use the standard exporting packaging. We also can according to clients' request .

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

Contact details:

Hefei Huanxin Technology Development Co., Ltd, established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of electric vehicle controller, handle, meter, electronic accelerator and so on. Our company specialized in various kind of pallet trucks parts and forklift parts for both domestic and international markets.

Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates.

Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
