| Prod Model: |
JFF-130RH/SH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
1.0V to 12V |
| Torque: |
High Torque |
| Speed.: |
3820 to 7400rpm |
| Brush: |
Carbon-Brush/Metal-Brush Motor |
| Material: |
RoHS Material |
| Protect Feature: |
Totally Enclosed |
| Motor Type: |
Brushed Motor |
| Diameter: |
20.4mm |
| Shape: |
Flat Shape |
| Motor: |
12volt Motor |
| Application: |
Household Appliances |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Certification: |
RoHS Ce |
| Brand: |
Kingly |
Product Description

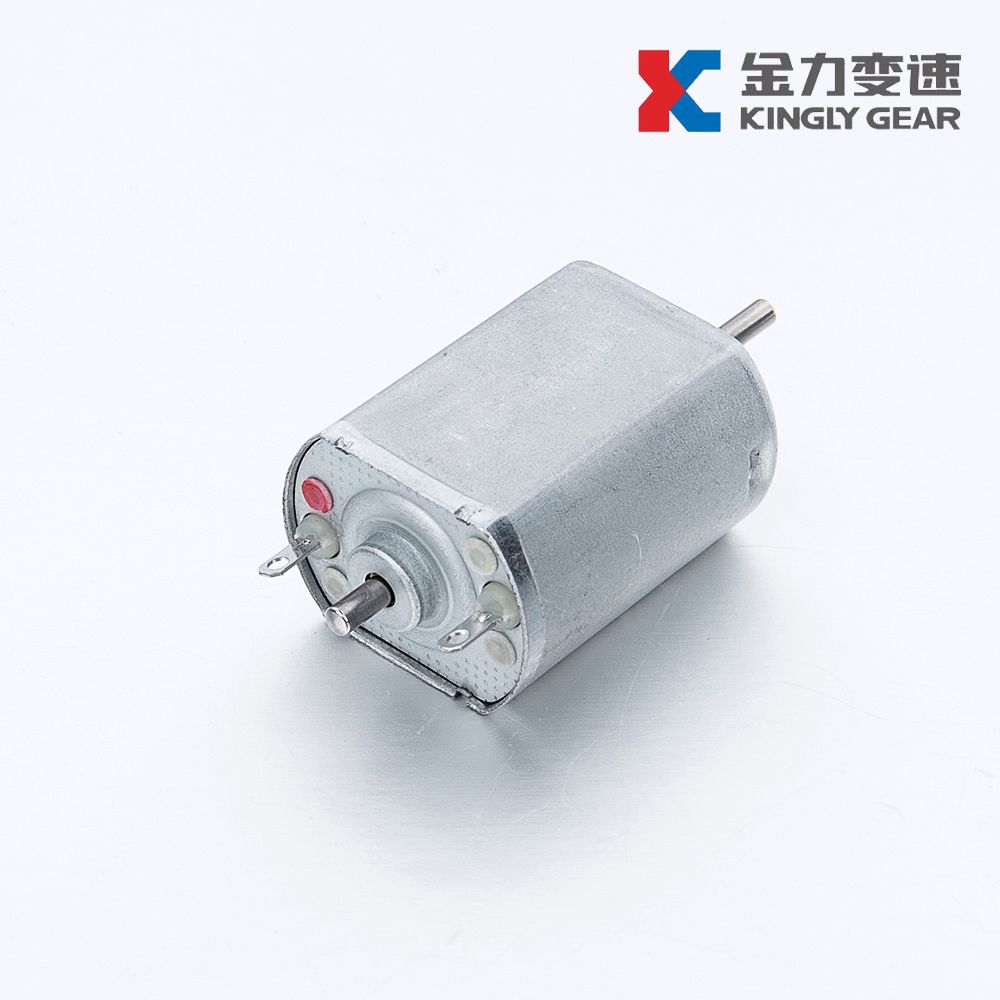

Dc motor, micro dc motor, for automation equipment, CD/DVD player, air conditioning damper actuator
DC Motor JFF-130RH/SH, CE, ROHS certified
High torque, high speed, low noise
Precious metal-brush motor
1. Power: 0.1 ~2.5 W
2. Voltage: 1.5 ~12v dc
3. Length of shaft: 2.0mm
4. Motor size: 15.4mm*38.75mm
5. Typical Aplications: Office automation equipments: Notebook PC, carema, CD/DVD player, CD/DVD ROM-drive
6. ISO M 2.0*0.4 TAPPED HOLE
Motors specification and sha ft length can be tailor-made according to cuesomer's requirements
MODEL |
VOLTAGE | NO -LOAD | AT MAXIMUM EFFICIENCY | STALL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| OPERATING RANGE | NOMINAL | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A |
| JFF-130RH-15210 | DC 1.0-4.0V | DC 3.0V | 5400 | 0.045 | 0.17 | 0.57 | 5.8 | 0.26 | 0.26 | 2.74 | 28 | 0.65 |
| JFF-130RH-2860 | DC 1.0-1.5V | DC 1.2V | 7400 | 5870 | 0.81 | 0.77 | 7.8 | 0.47 | 0.47 | 3.72 | 38 | 3.10 |
| JFF-130SH-11340 |
DC 3.0-12V | DC 6.0V | 4800 | 3820 | 0.12 | 0.88 | 8.9 | 0.35 | 0.35 | 4.31 | 44 | 0.46 |
| DC 9.0V | 7400 | 6030 | 0.15 | 1.18 | 12.0 | 0.74 | 0.74 | 6.37 | 65 | 0.68 |
Packing&Shipping
Packing:The plastic membrane cover the foam box, and the products put into the foam box order by order, then use pasteboard cover the carton.Then put the products into the big carton .
Shipping:The products will be sent through Ningbo port, Shenzhen port and Guangdong port or the port that buyers pointed.
Our Service
First: The buyers inquiry will be replied at first time.
Second: The best suitable products will be recommended to buyers according to their requirements.
Third: The order will be arranged as soon as possible.
Forth:we provide the high quality products with high efficiency.
FAQ
Catalogue: ac,dc, brush, brushless, carbon-brush, electric-brush, gear motor. Gearbox.
Payment Terms:T/T L/C western union
Certificate:ROHS,CE CCC
Deliver time:Usually 20 days.
