DC Motor/Three Phase Electro-Magnetic Brake Induction Motor with 2poles-0.37kw

Name: DC Motor/Three Phase Electro-Magnetic Brake Induction Motor with 2poles-0.37kw
Brand: all-electronics-online.com
SKU: 781597755
Availability: InStock
Rating: 4.6 (30 reviews)

Price:	US $ 52.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	HMEJ(DC)711-2-0.37
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency Class:	Eff2
Frame Size:	H71
Poles:	2 Poles
Rated Power:	0.37kw
Frequency:	50Hz, 60Hz
Insulation Class:	B\F\H
Mounting Type:	B3, B5, B14, B35multi and Pad
Application:	Household Appliances
Operating Speed:	Adjust Speed
Type:	Hmej(DC)
Certification:	CE
Brand:	Hongma

Product Description

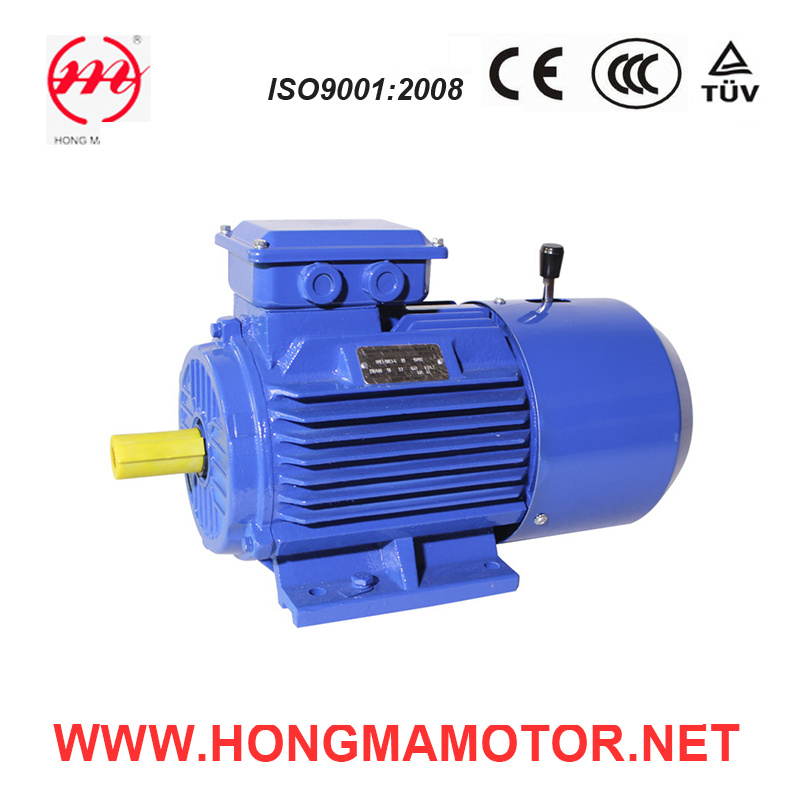

HMEJ (DC) Series Self-braking Electric Motor
HMEJ (DC) Series Self-braking Electric Motor which is totally enclosed squirrel cage with additional DC brake of disk type. It has advantage of fast brake, simple structure, high reliability and good versatility. In additional, the brake has manual work releasing structure which is widely used in mechanical equipment and transmissions devices for various requirements of rapid stop and accurate positioning.
HMEJ (DC) Series Self-braking Electric Motor
HMEJ (DC) Series Self-braking Electric Motor which is totally enclosed squirrel cage with additional DC brake of disk type. It has advantage of fast brake, simple structure, high reliability and good versatility. In additional, the brake has manual work releasing structure which is widely used in mechanical equipment and transmissions devices for various requirements of rapid stop and accurate positioning.

												Energizing Power		Ist/In		Tst/TN
	KW	RPM	A		%		CosΦ		N.m		S	W								KG
380V/50HZ 2POLE 3000RPM
HMEJ(DC) 63M1	0.18	2720	0.53		65		0.8		4		0.2	18		5.5		2.2		2.2		12
HMEJ(DC) 63M1	0.25	2720	0.69		68		0.81		4		0.2	18		5.5		2.2		2.2		13
HMEJ(DC) 71M1	0.37	2740	0.99		70		0.81		4		0.2	18		6.1		2.2		2.2		14
HMEJ(DC) 71M2	0.55	2740	1.4		73		0.82		4		0.2	18		6.1		2.2		2.3		15
HMEJ(DC) 80M1	0.75	2845	1.83		75		0.83		7.5		0.2	30		6.1		2.2		2.3		17
HMEJ(DC) 80M2	1.1	2840	2.58		77		0.84		7.5		0.2	30		7		2.2		2.3		18
HMEJ(DC) 90S	1.5	2840	3.43		79		0.84		15		0.2	50		7		2.2		2.3		23
HMEJ(DC) 90L	2.2	2840	4.85		81		0.85		15		0.2	50		7		2.2		2.3		26
HMEJ(DC) 100L	3	2860	6.31		83		0.87		30		0.2	65		7.5		2.2		2.3		37
HMEJ(DC) 112M	4	2880	8.1		85		0.88		40		0.25	90		7.5		2.2		2.3		45
HMEJ(DC) 132S1	5.5	2900	11		86		0.88		75		0.25	90		7.5		2.2		2.3		69
HMEJ(DC) 132S2	7.5	2900	14.9		87		0.88		75		0.25	90		7.5		2.2		2.3		72
HMEJ(DC) 160M1	11	2930	21.3		88		0.89		150		0.35	150		7.5		2.2		2.3		120
HMEJ(DC) 160M2	15	2930	28.8		89		0.89		150		0.35	150		7.5		2.2		2.3		130
HMEJ(DC) 160L	18.5	2930	34.7		90		0.9		150		0.35	150		7.5		2.2		2.3		149
HMEJ(DC) 180M	22	2940	40.8		91		0.9		200		0.35	150		7.5		2		2.3		189
HMEJ(DC) 200L1	30	2950	55.3		91.6		0.9		300		0.45	200		7.5		2		2.3		243
HMEJ(DC) 200L2	37	2950	67.6		92.4		0.9		300		0.45	200		7.5		2		2.3		267
HMEJ(DC) 225M	45	2970	82		92.7		0.9		400		0.45	200		7.5		2		2.3		323
380V/50HZ 4POLE 1500RPM
HMEJ(DC) 63M1	0.12	1310	0.44		57		0.72		4		0.2	18		4.4		2.1		2.2		13
HMEJ(DC) 63M2	0.18	1310	0.62		60		0.73		4		0.2	18		4.4		2.1		2.2		14
HMEJ(DC) 71M1	0.25	1330	0.79		65		0.74		4		0.2	18		5.2		2.1		2.2		15
HMEJ(DC) 71M2	0.37	1330	1.12		67		0.75		4		0.2	18		5.2		2.1		2.2		16
HMEJ(DC) 80M1	0.55	1390	1.57		71		0.75		7.5		0.2	30		5.2		2.4		2.3		17
HMEJ(DC) 80M2	0.75	1390	2.03		73		0.76		7.5		0.2	30		6		2.3		2.3		18
HMEJ(DC) 90S	1.1	1380	2.89		75		0.77		15		0.2	50		6		2.3		2.3		22
HMEJ(DC) 90L	1.5	1390	3.07		78		0.79		15		0.2	50		6		2.3		2.3		27
HMEJ(DC) 100L	2.2	1390	5.16		80		0.81		30		0.2	65		7		2.3		2.3		34
HMEJ(DC) 100L2	3	1410	6.78		82		0.82		30		0.2	65		7		2.3		2.3		38
HMEJ(DC) 112M	4	1410	8.8		84		0.82		40		0.25	90		7		2.3		2.3		48
HMEJ(DC) 132S	5.5	1435	11.7		85		0.83		75		0.25	90		7		2.3		2.3		71
HMEJ(DC) 132M	7.5	1440	15.6		87		0.84		75		0.25	150		7		2.3		2.3		83
HMEJ(DC) 160M	11	1440	22.3		88		0.84		150		0.35	150		7		2.2		2.3		128
HMEJ(DC) 160L	15	1460	30.1		89		0.85		150		0.35	150		7		2.2		2.3		142
HMEJ(DC) 180M	18.5	1470	35.9		91		0.86		200		0.35	150		8		2.2		2.3		184
HMEJ(DC) 180L	22	1470	42.6		91.3		0.86		200		0.35	150		8		2.2		2.3		197
HMEJ(DC) 200L	30	1470	57.4		92.4		0.86		300		0.45	200		7		2.2		2.3		264
HMEJ(DC) 225S	37	1480	69.6		92.9		0.87		300		0.45	200		7		2.2		2.3		303
HMEJ(DC) 225M	45	1480	84.3		93.3		0.87		400		0.45	200		7		2.2		2.3		337
HMEJ(DC) 71M1	0.18	850	0.74		56		0.66		4		0.2	18		4		1.9		2		9.5
HMEJ(DC) 71M2	0.25	850	0.95		59		0.68		4		0.2	18		4		1.9		2		11
HMEJ(DC) 80M1	0.37	885	1.3		62		0.7		7.5		0.2	30		4.7		1.9		2		17
HMEJ(DC) 80M2	0.55	885	1.79		65		0.72		7.5		0.2	30		4.7		1.9		2.1		19
HMEJ(DC) 90S	0.75	910	2.29		69		0.72		15		0.2	50		5.5		2		2.1		22
HMEJ(DC) 90L	1.1	910	3.18		72		0.73		15		0.2	50		5.5		2		2.1		26
HMEJ(DC) 100L	1.5	920	3.94		76		0.75		30		0.2	65		6.5		2		2.1		34
HMEJ(DC) 112M	2.2	935	5.6		79		0.76		40		0.25	90		6.5		2		2.1		42
HMEJ(DC) 132S	3	960	7.4		81		0.76		75		0.25	90		6.5		2.1		2.1		68
HMEJ(DC) 132M1	4	960	9.8		82		0.76		75		0.25	90		6.5		2.1		2.1		79
HMEJ(DC) 132M2	5.5	960	12.9		84		0.77		75		0.25	90		6.5		2.1		2.1		87
HMEJ(DC) 160M	7.5	970	17		86		0.77		150		0.35	150		6.5		2		2.1		122
HMEJ(DC) 160L	11	970	24.2		87		0.78		150		0.35	150		6.5		2		2.1		141
HMEJ(DC) 180L	15	979	31.5		89.2		0.81		200		0.35	150		7		2		2.1		195
HMEJ(DC) 200L1	18.5	970	38.4		90.3		0.81		300		0.45	200		7		2.1		2.1		217
HMEJ(DC) 200L2	22	970	44.5		90.4		0.83		300		0.45	200		7		2.2		2.1		240
HMEJ(DC) 225M	30	980	59.1		91.8		0.84		400		0.45	200		7		2		2.1		323
380V/50HZ 8POLE 750RPM
HMEJ(DC) 80M1	0.18	645	0.88	51		0.61		7.5		0.2		30	3.3		1.8		1.9		17
HMEJ(DC) 80M2	0.25	645	1.15	54		0.61		7.5		0.2		50	3.3		1.8		1.9		19
HMEJ(DC) 90S	0.37	670	1.49	62		0.61		15		0.2		50	4		1.8		1.9		23
HMEJ(DC) 90L	0.55	670	2.18	63		0.61		15		0.2		50	4		1.8		2		25
HMEJ(DC) 100L1	0.75	680	2.17	71		0.67		30		0.2		65	4		1.8		2		33
HMEJ(DC) 100L2	1.1	680	2.39	73		0.69		30		0.2		65	5		1.8		2		38
HMEJ(DC) 112M	1.5	690	4.5	75		0.69		40		0.25		90	5		1.8		2		50
HMEJ(DC) 132S	2.2	705	6	78		0.71		75		0.25		90	6		1.8		2		63
HMEJ(DC) 132M	3	705	7.9	79		0.73		75		0.25		90	6		1.8		2		79
HMEJ(DC) 160M1	4	720	10.3	81		0.73		150		0.35		150	6		1.9		2		118
HMEJ(DC) 160M2	5.5	720	13.6	83		0.74		150		0.35		150	6		2		2		119
HMEJ(DC) 160L	7.5	720	17.8	85.5		0.75		150		0.35		150	6		2		2		145
HMEJ(DC) 180L	11	730	25.1	87.8		0.76		300		0.35		150	6.6		2		2		193
HMEJ(DC) 200L	15	730	34	88.3		0.76		300		0.45		200	6.6		2		2		250
HMEJ(DC) 225S	18.5	730	40.9	90.4		0.76		300		0.45		200	6.6		1.9		2		261
HMEJ(DC) 225M	22	740	47.1	91		0.78		150		0.45		200	6.6		1.9		2		283

Features and Benefits:
Efficiency Class:EFF2
Frame Size: H63-225
Poles:2,4,6,8 poles
Rated Power: 0.18-45KW
Rated Voltage: 220/380V,380/660V,230/400V,400V/690V
Frequency: 50HZ,60HZ
Protection Class: IP44,IP54,IP55
Insulation Class: B,F,H

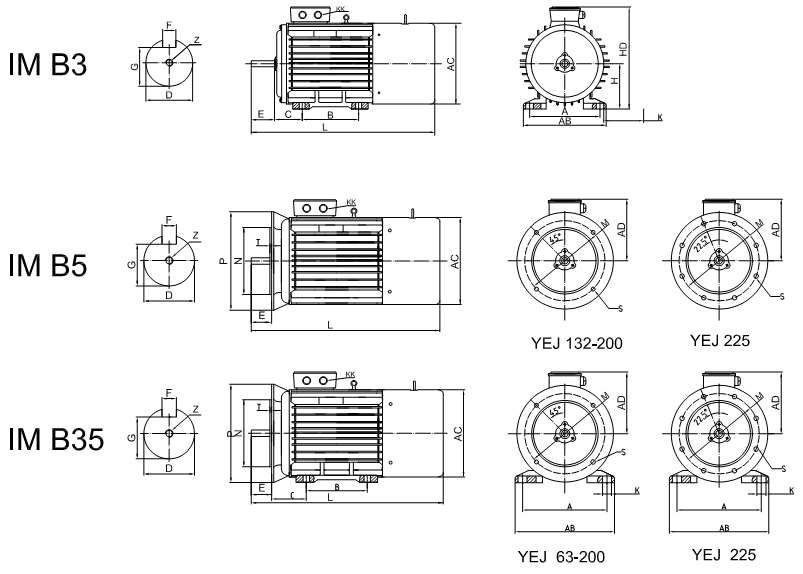

Mounting Type:B3,B5,B14,B35multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M

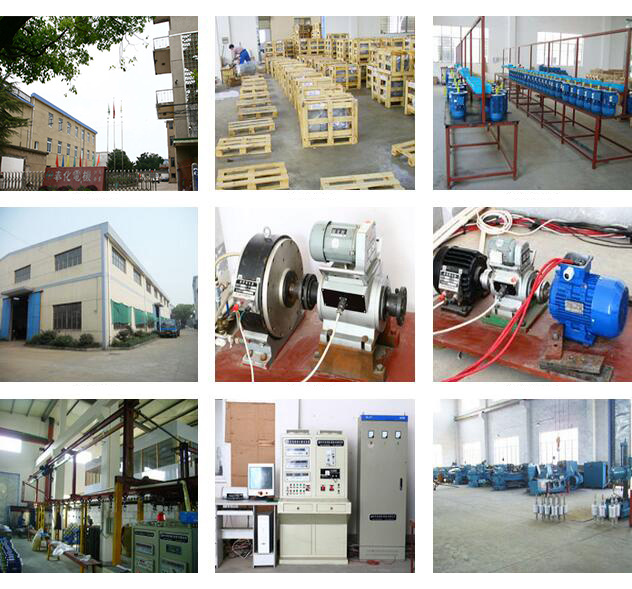

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
