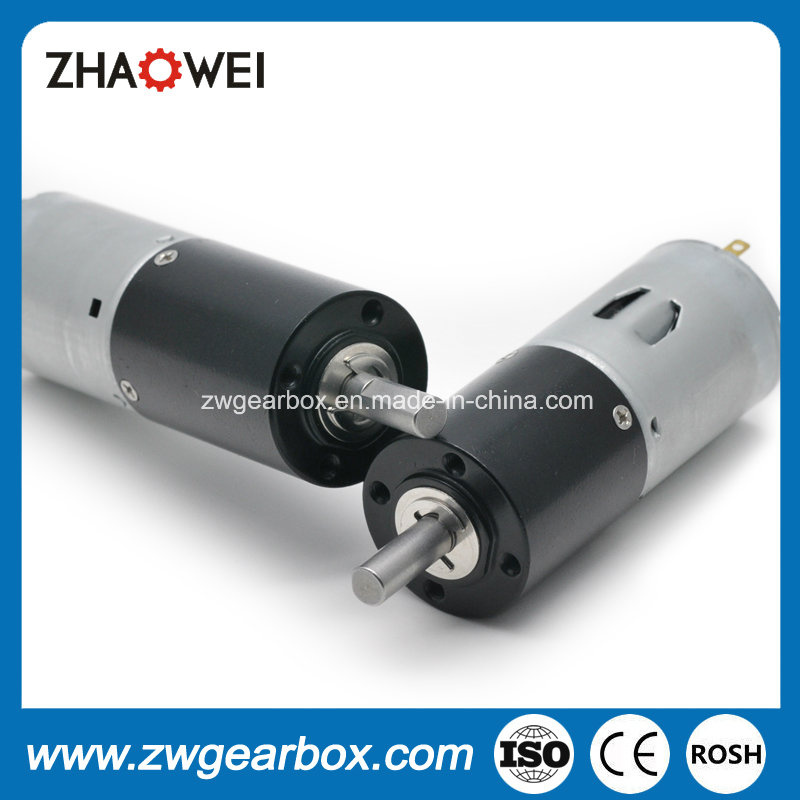

DC Planet Gear Motor for LCD Screen Rolling

Prod Model:	ZWMD022022-256
Rated Voltage:	24V DC
No Load Speed:	28rpm
Rated Load Speed:	26rpm
No Load Current:	120mA(Max)
Rated Load Current:	300mA(Max)
Torque:	4,050 G.Cm
Mac Rated Torque:	5,000g.Cm
Ratio:	256:1
Motor Type:	Planetary Gearbox
Gears Material:	DC Planet Gear Motor
Application:	LCD Screen Rolling
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-Proof
Type:	Planet Gear Motor
Certification:	Ce
Brand:	Zhaowei

Product Description

DC Planet Gear Motor for LCD Screen Rolling

Product Description
Model:      ZWMD022022-256
Rated Voltage: 24v
No Load Speed: 28 rpm
No Load Current: 120mA
Rated Load Speed: 26rpm
Rated Load Current: 300 mA
Rated Load Torque: 4050 gf.cm
Max Rated Torque of Gear Box: 5000 gf.cm
Max Instant Torque of Gear Box: 10000 gf.cm
Overall Length L: 71.7 mm
Gear Box Length L1: 33.4 mm
We also have the following items:


Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length  L1
	Rated	At No Load		At Rated Load				Overall Length  L
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWMD022022-4	24.0	1886	100	1675	295	160	15.7	56.4	800	2400	4	18.1
ZWMD022022-5	24.0	1509	100	1340	295	200	19.6		800	2400	5
ZWMD022022-16	24.0	472	110	419	295	512	50.2	61.5	2000	6000	16	23.2
ZWMD022022-19	24.0	397	110	353	295	608	59.6		2000	6000	19
ZWMD022022-23	24.0	328	110	291	295	736	72.2		2000	6000	23
ZWMD022022-64	24.0	118	120	105	295	1350	132.4	66.6	3500	10000	64	28.3
ZWMD022022-76	24.0	99	120	88	295	1603	157.2		3500	10000	76
ZWMD022022-90	24.0	84	120	74	295	1898	186.2		3500	10000	90
ZWMD022022-107	24.0	71	120	63	295	2257	221.3		3500	10000	107
ZWMD022022-256	24.0	28	120	26	300	4050	397.2	71.7	5000	10000	256	33.4
ZWMD022022-304	24.0	24	120	22	300	4809	472		5000	10000	304
ZWMD022022-361	24.0	20	120	19	300	5000	490		5000	10000	361
ZWMD022022-429	24.0	17	120	16	300	5000	490		5000	10000	429
ZWMD022022-509	24.0	14	120	13	300	3500	343		3500	10000	509

above specifications just for reference and customizable according to requirements.

Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk
Office automation equipments	CD-ROM, OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, automatic vending machine
Toys and models	radio control model, automatic cruise control, ride-on toy
Medical equipments	blood pressure meter, breath machine
Industrials	air freshener, display, flow control valves
Electric power tools	electric drill, screwdriver
Precision instruments	monitor, optics instruments

Our Services
ODM & OEM
Gearbox design and development
Related technology support

Packaging & Shipping
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.

Company Information
Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
1) Competitive Advantages
18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D , ODM &OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted
Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
2) Main Products
Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.

Certifications
We Have passed to hold ISO9001, ISO14001 and TS16949.
and more...

FAQ
1. Can you make the gearbox with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
Please send an inquiry .
