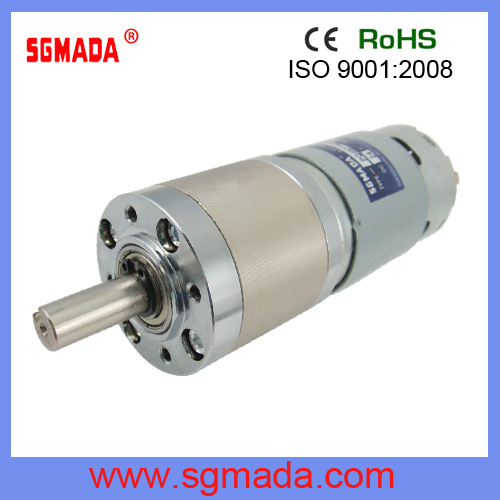

DC Planetary Geared Motor (PG-45775 for automatic door)

Name: DC Planetary Geared Motor (PG-45775 for automatic door)
Brand: all-electronics-online.com
SKU: 626825475
Availability: InStock
Rating: 4.7 (90 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PG45775247000-50.9k
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
45mm Diameter:	Gearbox Length:33.6-78.8mm
Structure And Working Principle:	Brush
Operating Speed:	Adjust Speed
Application:	Power Tools
Excitation Mode:	Excited

Product Description

DC Planetary Geared Motor (PG-45775 for automatic door)
PG-45775247000-50.9k widely used for automatic door, automatic windows,etc...

1. Voltage: 12V, 24V
2. Output speed: 6.2rpm-1216 rpm
3. Power: 7.5W

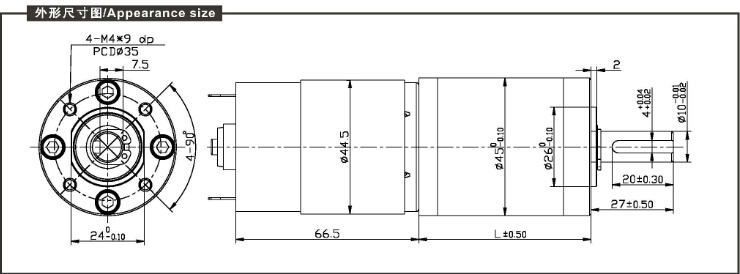

4. Motor dimensions: Dia. 45mm
5. Ratio: 1: 3.7, 1: 5.2, 1: 13.7, 1: 17, 1: 26.9, 1: 51, 1: 71, 1: 100, 1: 139, 1: 188, 1: 369, 1: 516, 1: 669, 1: 721
6. Package: 20PCS /carton, Carton Size: 35*31*15cm, N. W. 11KGS
7. Appliances: Automat, electrical controlled valve, robot, door locks, token, optical equipment, ticket selling machinery, automatic energy saving bath, monitoring cameras, lighting, coin refund devices, vending machine, soft napkin machine, infusion pumps.

Ningbo Shengguang Motor Co., Ltd., established in 2001, is devoted to R&D, manufacturing and marketing of various of motors, such as DC geared motors, synchronous motors, planetary geared motors, shade pole geared motor, induction motors, worm geared motors and brushless motors, etc...Our products are widely used in household and office appliances, toys, roasters, vending, deposit, and arcade machines, timers, lamps, heaters, and many fields. Besides, we can research and develop new models as clients`request.

Shengguang has an experienced R&D team and skilled salesmen in motor industry. Based on the professional, devoted and pragmatic spirit, it strives for guiding and advocating of the consumption of motor products. With the faith of tenacity and tolerance, practice and innovation, sustainable development and honesty, it tries to become a sustainable development and harmonious modern enterprise. It pursues pragmatic, innovational and precise conception. It is believed that the excelent quality and competive price of our products will bring you more benefits.

If you are interested in our products, please contact us without any hesitation via

Looking forward to hearring from you soon. Hoping we can be friendly partners and good friends in the near future.
