DC Planetary Motor (PG-42M775)

Name: DC Planetary Motor (PG-42M775)
Brand: all-electronics-online.com
SKU: 626822705
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PG42775 or PG42555
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
42mm Diameter:	Gearbox Length:31.8-77mm
Operation Mode:	Electric Motor
Operating Speed:	Adjust Speed
Application:	Car
Ventilation:	Closed
Structure:	Rotating Pole Type (',Armature Fixed)
Number Of Poles:	Single-Phase
Magnetic Structure:	Permanent Magnet

Product Description

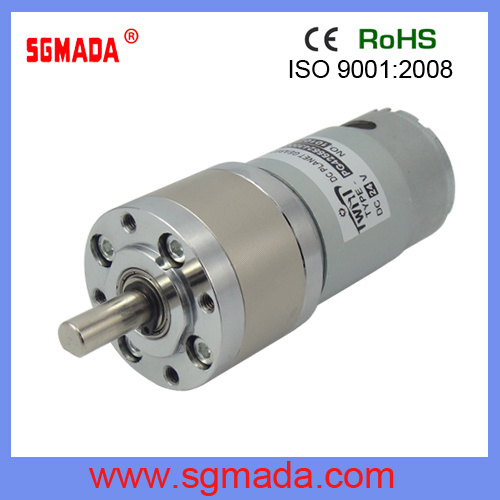

DC Planetary Motor (PG-42M775)
PG-42M555 and PG42775 planetary series

1. Voltage: 12V, 24V
2. Output speed: 0.8rpm-1000 rpm
3. Power: 3.2W

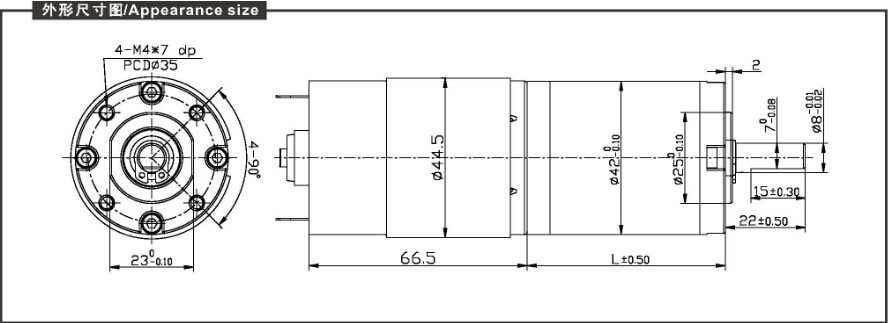

4. Motor dimensions: Dia. 36mm
5. Ratio: 1: 3.7, 1: 5.2, 1: 13.7, 1: 17, 1: 26.9, 1: 51, 1: 71, 1: 100, 1: 139, 1: 188, 1: 264, 1: 369, 1: 516, 1: 669, 1: 722, 1: 977, 1: 1367, 1: 1910, 1: 2671, 1: 3736
6. Package: 40PCS /carton, Carton Size: 28*26*22.5cm, N. W. 14KGS
7. Appliances: Automat, electrical controlled valve, robot, door locks, token, optical equipment, cordless power tool, ticket selling machinery, automatic energy saving bath, monitoring cameras, lighting

Ningbo Shengguang Motor Co., Ltd., established in 2001, is devoted to R&D, manufacturing and marketing of various of motors, such as DC geared motors, synchronous motors, planetary geared motors, shade pole geared motor, induction motors, worm geared motors and brushless motors, etc...Our products are widely used in household and office appliances, toys, roasters, vending, deposit, and arcade machines, timers, lamps, heaters, and many fields. Besides, we can research and develop new models as clients`request.

Shengguang has an experienced R&D team and skilled salesmen in motor industry. Based on the professional, devoted and pragmatic spirit, it strives for guiding and advocating of the consumption of motor products. With the faith of tenacity and tolerance, practice and innovation, sustainable development and honesty, it tries to become a sustainable development and harmonious modern enterprise. It pursues pragmatic, innovational and precise conception. It is believed that the excelent quality and competive price of our products will bring you more benefits.

If you are interested in our products, please contact us without any hesitation via

Looking forward to hearring from you soon. Hoping we can be friendly partners and good friends in the near future.
