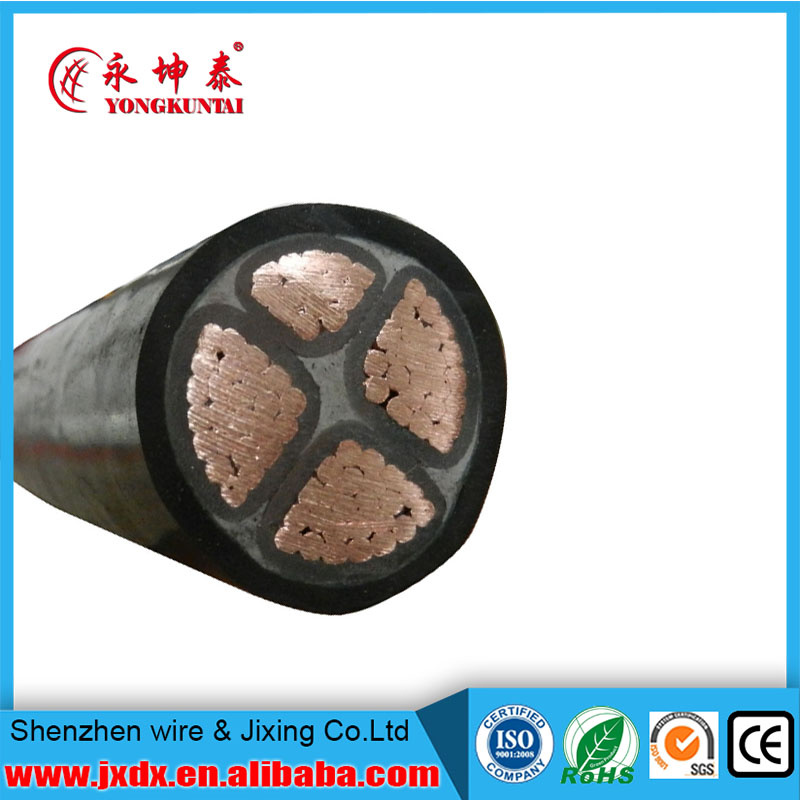

DC Power Cable with 105 XLPE Insulation, Electric /Power Cable in DC Type
| Price: |
Negotiable/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Paypal |
| Application: |
Construction |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
CE |
| Model: |
BV |
| Brand: |
Yongkuntai |
Product Description
DC power cable with 105 xlpe insulation , electric /power cable in DC type
Features:
1. Conductor: IEC 60228 tinned copper wire
2. Iosulation material: Double sheathed Flame retardant polyolefin
3. Covering: Anti-fire double rubber
4. Work enviroment: Photovoltaic Wire is able to be work under glare sun-light, Anti-high temperature, Anti-UV.
Sepc.
| Name | Packing | Weight/ M | Net Weight | Gross Weight |
2.5 square millimeter | 250 M/ roll | 0.065kg / meter | 16.5kg / roll | 17.2kg |
Description
| Details | 2.5 square millimeter photovoltaic wire for solar photovoltaic power station | Scetion | 2.5 square millimeter |
| Rated current | 31A | Core | Single No. 1 |
| Conductor | Copper wire No./mm 56/0.30 | Conductor outer diameter | 2.02mm |
| Iosultation Min thikness | 0.5mm | Iosulation Max. Thikness | 0.5mm |
| Wire outer diameter | 5.45+/-0.1mm | Conductor resistance 20 ºC | ≤8.21Ω/km |
| Allowing Short circuit temparature | 200ºC 5S | Lifespan | >25 years |
| Rated Voltage | DC: 1.8KV AC U./ U:0.6/1KV | Work voltage | AC/DC (KV): 0.6 ~ 1.0/1.8 |
| Withstand Glare test | HD605/ A1 | Withstand Ozone layer test | EN50396 |
| Test Voltage Kv/min | 6.5/5 No breakdown | Rated temperature | -40 ~ 90ºC |
Company Information
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.

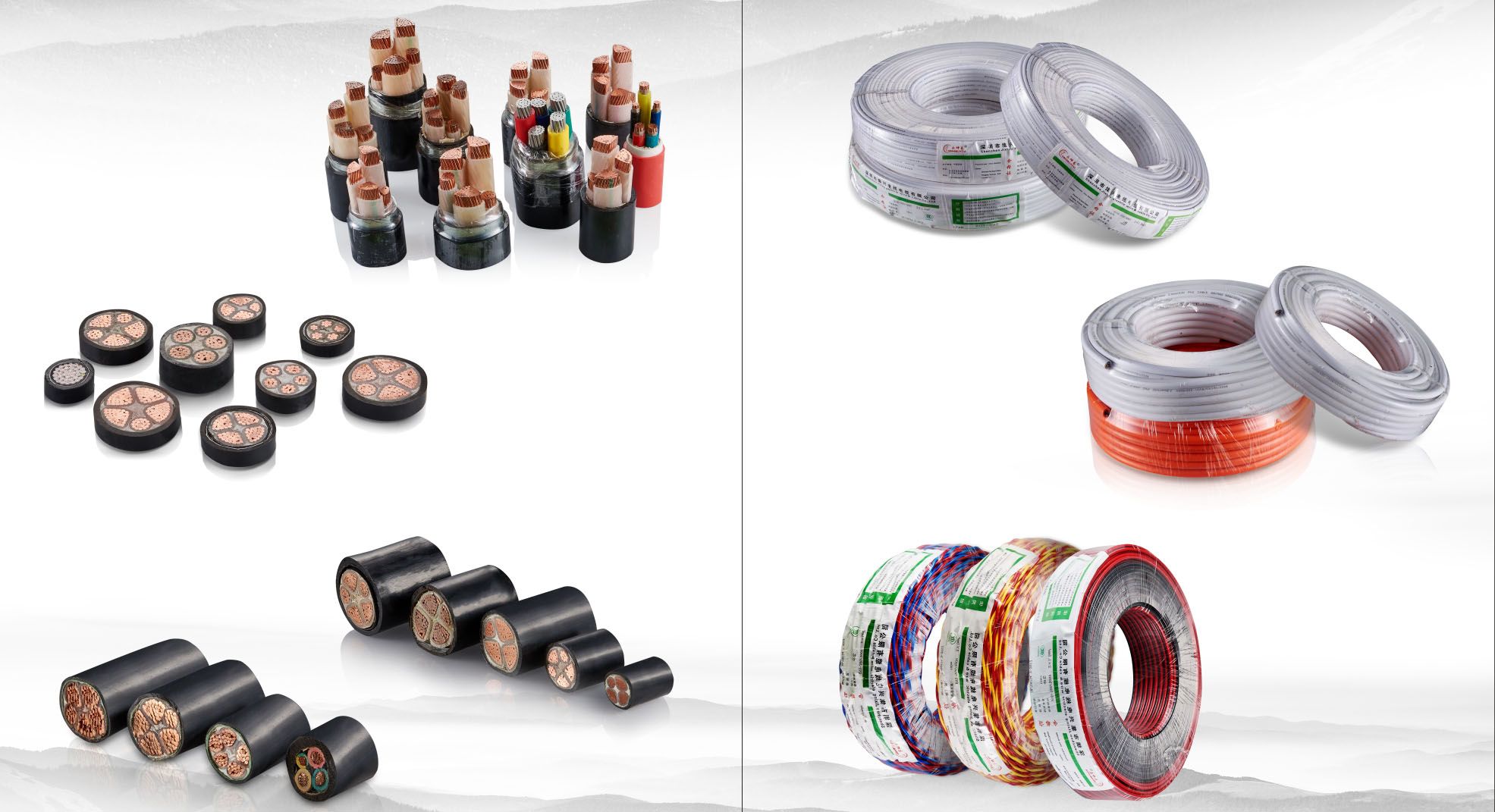

Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.
Packaging & Shipping
Price term: FOB,EXW, CNF,CIF
Shipping Method: DHL,TNT,FEDEX,UPS,BY AIR OR BY SEA
Delivery time: 3-7 workdays.
Shipping:
1. The order normally will be shipped within 3-7 working days upon the availability of the stock. If there is no enough stock, please check with us for the earliest shipment.
2. Din-tek usually ship orders by DHL/FedEx /TNT/ UPS. Other methods can be arranged upon request. Please bear that all the freight charge is on customer's account.
3. We will provide the tracking ID upon shipment, but Din-tek shall not take any responsibility for the delay or cancellation or any other event caused by the carriers.
4. we will try our utmost to do the proper package before shipment. However, we cannot avoid the rude handling and damage due to the carrier's negligence. Please check the package intact before signing and accept the goods. If the package is damaged, please contact us immediately and we will provide the proof of the intact package.
After-Sales Service
1.We are responsible for all the goods from us. If you have any questions about the goods, you can contact us freely in any time.
2.As add-valued service, we can help our customers arrange their goods combination shipment or other goods they want from here China. We also can help our customer pay to their many different suppliers here.
3.Anything you need us, we are just be here for you.
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.

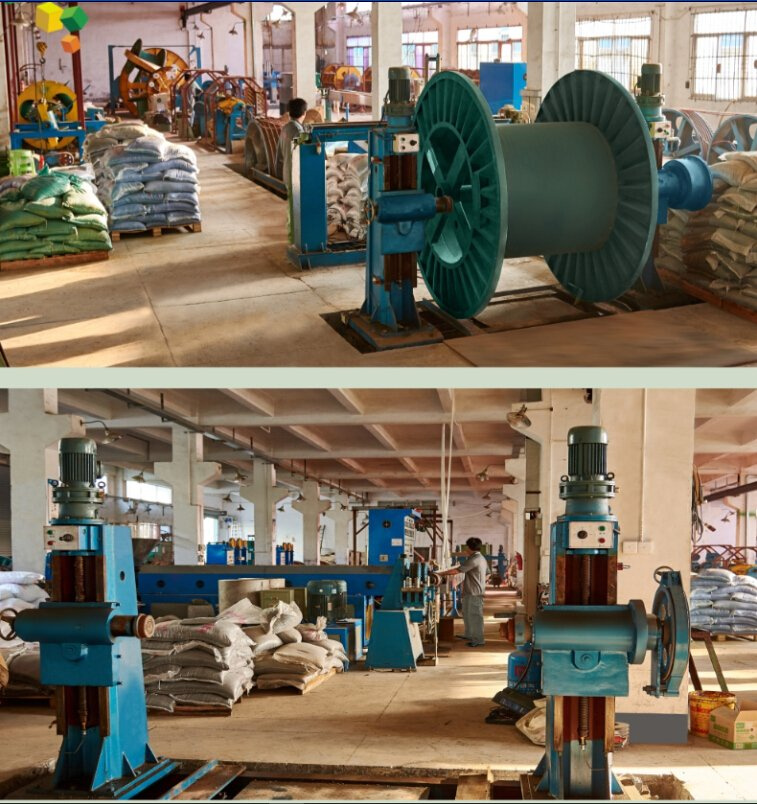

Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
