DC Power Supply-3

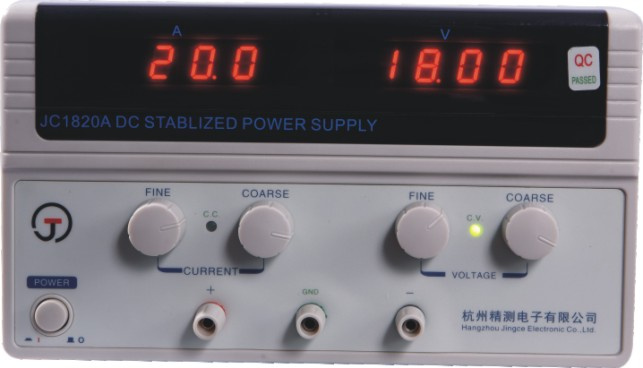

Name: DC Power Supply-3
Brand: all-electronics-online.com
SKU: 701165525
Availability: InStock
Rating: 5 (90 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe

Product Description

Adjustable voltage and current: Adjustable voltage and current from 1 to raing value
LED digital display: There are three digits to display voltage and current
Voltage display resolution ratio is 0.1V, and current is 0.1A
Constant pressure and constant flow function: When the output value exceed the setting value, the DC power supply will limit automatically to make it within setting value constantly. It indicate "CV" when it is constant pressure, and indicate "CC" when it is constant flow. The "CC" and "CV" will be changed automatically according setting value.
Overload, Short circuit protective: When it is overload, the output value is setted automatically within the limits; When it is short circuit, the output value is stopped immerdiately to protect the DC power supply
Current is more than 10A to be output from the back-end
Input voltage: AC220V± 10% 50Hz
Size: 155x255x450(mm)

Model		JC1820A	JC3020A	JC6010A	JC10005A
Rated Output Value	Voltage	18V	30V	60V	100V
	Current	20A	20A	10A	5A
	Power	360W	600W	600W	500W
Load Effect	Voltage	≤ 4.8mV	≤ 6mV	≤ 6mV	≤ 6mV
Load Effect	Current	≤ 43mA	≤ 7mA	≤ 9mA	≤ 9mA
Source Effect	Voltage	≤ 4.8mV	≤ 6mV	≤ 6mV	≤ 6mV
Source Effect	Current	≤ 43mA	≤ 7mA	≤ 9mA	≤ 9mA
Ripple (5Hz-1MHz)	CV pp	≤ 4mV	≤ 4mV	≤ 4mV	≤ 4mV
	CV rms	≤ 2mV	≤ 2mV	≤ 3mV	≤ 3mV
	CC rms	≤ 20mA	≤ 3mA	≤ 3mA	≤ 3mA
Read-back Accuracy	Voltage ± 1%+	20mv	20mv	20mv	200mv
Read-back Accuracy	Current ± 2%+	200mA	20mA	20mA	20mA
Input Voltage		AC220V± 10%
Size WHD(mm)		155255450
Net weight (kg)		13.6	13.7	13.6	13.5

Hangzhou Weibo Technology Co., Ltd was founded in 1999, which is a manufacturer specialized in the research, manufacture, sales and service of automatic doors, control systems engineering equipment and testing instruments. We have a prefessional team which consist of professors, doctors and masters, they are never stop to absorption and integration of advanced technology from Europe, United States and Japan, efforts to provide users with a "safety, environmental, intelligence and convenient" high quality automatic doors.

Company follows a strictly quality control and manufacturing process, successively passed ISO9001: 2000 quality management systems and CE certificate, sales network covering the whole country and more than 30 abroad countries and areas. Our new factory building cover 35000sqm area, which completed in 2013, let company development to a new level.

Our brand "DEMAX" offers a comprehensive range of products including

DS100/DS100A/DS200/DS300 automatic single/bi-parting sliding door,

DS-A100 automatic curved sliding door,

DS-S180 automatic swing door,

DS-T100 automatic telescopic sliding doors,

DS-M100 hermetic sealing door,

As well as some accessories etc, widely used in office buildings, shopping malls, supermarkets, hotels, schools, hospitals, factories workshop and goverments etc.

As a manufacturer, we can provide you:

High quality products

Reasonable price

Fast delivery time: 3-15days depends on order quantity

Warranty period: 2 years

Certificate: ISO9001&CE

After sales service
