DC Reactor for Frequency Converter out Put Reactor

Prod Model:	DCL-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Client Design
Color:	Grey
Package:	According to Client Requirement
Product Feature:	Electrical Harmonic Filter Reactor
Hand Sample Time:	Within 3-5 Days
Port:	Ningbo/Shanghai
Filter Series Reactor Function:	Filter Series Reactor Protect Power Capacitor
Filter Series Reactor Type:	Dry Type
OEM:	Accept
Filter Series Reactor Material:	Cold Roller Silicon Steel Sheet
Phase:	Three
Application:	Rectifier
Coil:	Core-type Transformer
Winding Type:	Separated Winding Transformer
Cooling Method:	Dry-type Transformer
Brand:	OEM

Product Description

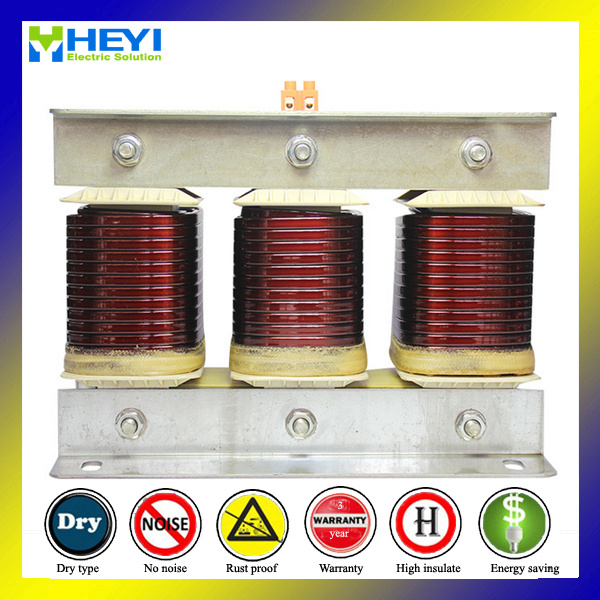

DC reactor for  Frequency converter out put reactor
1.Filter reactor low loss cold roller silicon steel sheet
2.anti corrosion exposed parts
3.low temperature rise, low loss

DC reactor for  Frequency converter out put reactor
 The coil and the iron core filter reactor assembled into a body after pre drying, vacuum impregnation, heat dryingcuring this process, using H grade varnish, make the reactor coil and core firmly together;

DC reactor for  Frequency converter out put reactor    specification

Type	Capacity kvar	Rated voltage	Rated current	Rated react %	SIZE 6%	Size 12%
CKDG-10/0.525-12	10	0.525	14.4	12	195*100*160	195*130*160
CKDG-15/0.525-12	15	0.525	21.7	12	195*120*160	240*135*185
CKDG-20/0.525-12	20	0.525	28.9	12	240*130*185	280*135*280
CKDG-25/0.525-12	25	0.525	36.1	12	240*135*185	280*150*280
CKDG-30/0.525-12	30	0.525	43.3	12	240*150*185	280*160*280
CKDG-35/0.525-12	35	0.525	50.5	12	240*170*185	310*160*280
CKDG-40/0.525-12	40	0.525	64.9	12	280*135*280	310*165*270
CKDG-50/0.525-12	50	0.525	79.3	12	280*150*280	320*175*275
CKDG-60/0.525-12	60	0.525	93.7	12	280*160*280	340*180*290
CKDG-80/0.525-12	80	0.525	122.5	12	340*180*290	350*200*300
CKDG-100/0.525-12	100	0.525	151.3	12	340*190*300	360*220*320

Specification	Detail data
Insulate construction	Dry type reactor
Is there iron core	Iron core reactor
Function	Filter reactor
Rated current	30~895 A
Match capacitor capacity	1~50000kvar
Insulate class	Class F and H 3kv
Humidity	More than 90%
Filter reactor noise	Less than 45db
Temperature limit for filter reactor body	Iron core less than 85k Electrical core less than 95k
Long working condition	1.35 time rated current within harmonic current
The reactance value linearity	Less than 0.95 between 1.8time rated current reactance and rated current value


DC reactor for  Frequency converter out put reactor  advantage
1.global leading profession manufacture of filter reactor
2.100% pure copper for inside core , iron steel instruction with anti rust
3.Monthly production : 100000pcs
4.Fast delivery : you will get the order when you need it
5.2000 square meter workroom for 100worker
6.OEM is warmly welcome
7.Convenient : 45 minutes to wenzhou airport

 DC reactor for  Frequency converter out put reactor   function
1 Improve voltage distribute on each line
2. Balance reactive power when overload circuit ,reduce power loss on the line
3.When the reactor neutral grounding via small reactor device,Also available small reactor compensation line and phase to ground capacitance,to accelerate the arc current automatically extinguished, easy to use

DC reactor for  Frequency converter out put reactor     Payment terms
1. 30% T/T advance , the balance against to the copy B/L
2. The other specific issues can negociate.
3. Pls confirm the details with us before do the prepayment.

DC reactor for  Frequency converter out put reactor  Packing information
1. Each with wooden pacakge
2.6pcs/ctn , flap into wooden  carton
3. G/N.W: 30/28kg
4. We can packing as your required

Why choose DC reactor for  Frequency converter out put reactor
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)2000 square meters work environment
