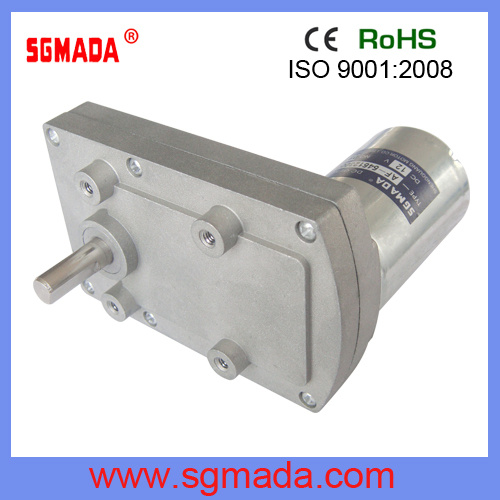

DC Square Gear Motor for Nut Vending Machines

Name: DC Square Gear Motor for Nut Vending Machines
Brand: all-electronics-online.com
SKU: 737463715
Availability: InStock
Rating: 4.3 (95 reviews)

Price:	US $ 7-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tt-545
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
60X95mm:	74mm Shaft
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	Ce
Brand:	Sgmada

Product Description

TT-545DC Gear Motor for office eqiupment
TT-545 SERIES
Voltage: 3VDC 6VDC 9VDC 12VDC 24VDC
Speed range: 3000-6000rpm
Power: 2.2-9.0w
Typical applications: Central air-conditioning valve, Amusement equipment, Coin
Refund devices, Grill, Oven, Peristaltic pumps, ATM bank
Automatic system, Robot, Medical equipment, Office
Equipment, Household appliances, Automatic actuator.
Weight: 450-500g/PCS(approx)
Packing details: CTN size: 55X35XH18cm 24PCS/CTN G. W. 13Kgs

Number of stages	3 stages reduction	4 stages reduction	5 stages reduction
Reduction ratio	36\66\94	149\196\211\277\394	624\830\1166
Max.Running torque	5Kgf @ cm	20Kgf @ cm	50Kgf @ cm
Max. Gear breaking torque	15Kgf @ cm	60Kgf @ cm	150Kgf @ cm
Max. Gearing efficiency	73%	65%	59%
Other reduction ratio please telephont or e-mail to out engineering department.

Motor name	Rated volt.v	No load		Load torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
		mA	r/min	mA	r/min	gf @ cm	W	gf @ cm	mA
RS-545123000	12	≤110	3000	≤450	2200	100	2.2	400	1800
RS-545124500	12	≤220	4500	≤800	3300	150	4.9	600	3000
RS-545126000	12	≤350	6000	≤1500	4500	200	9.0	800	5500
RS-545243000	24	≤60	3000	≤230	2200	100	2.2	400	900
RS-545244500	24	≤110	4500	≤400	3300	150	4.9	600	1500
RS-545246000	24	≤150	6000	≤750	4500	200	9.0	800	3000
1\This table lists some motors parameters, others please refer to specific parameters of rs-545.htm . 2\Afier connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed / reduction ratio.
