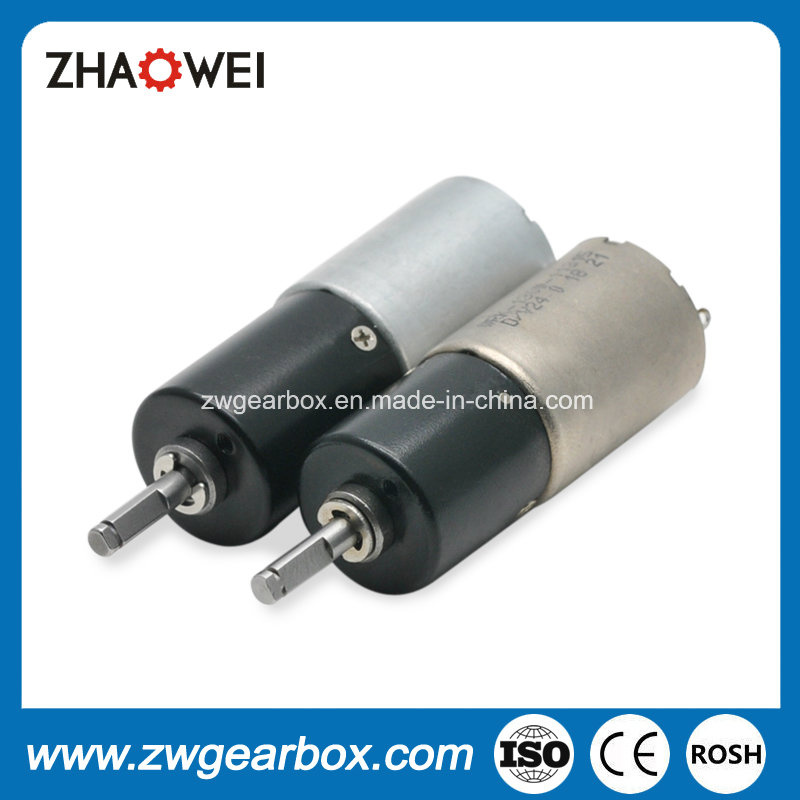

DC Supr Gear Motor for Intelligent Sanitary Ware

Prod Model:	ZWMD016017-144
Voltage:	9.0V
Gearbox Diameter:	16mm
No Load Speed:	51 Pm
No Load Current:	115 Ma(Max)
Load Speed:	45 Rpm
Load Current:	165 Ma(Max)
Load Torque:	304 GF.Cm
Gear Ratio:	144:1
Power Output:	0.1-2.0W Customized
Motor Type:	DC Supr Gear Motor
Application:	Intelligent Sanitary Ware
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-Proof
Number Of Poles:	Customize
Type:	Supr Gear Motor
Certification:	RoHS
Brand:	Zhaowei

Product Description

DC Supr Gear Motor for Intelligent Sanitary Ware

Product Description
1)Specification
Rated Voltage: 9V
No-load speed: 51rpm
Load Torque: 304g.cm
We have standard items as following:

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWMD016017-36	9.0	204	105	181	165	115	11.3	37.5	2000	10000	36	14.8
ZWMD016017-64	9.0	115	115	102	165	135	13.2	40.8	3500	10000	64	18.1
ZWMD016017-96	9.0	77	115	68	165	203	19.9		3500	10000	96
ZWMD016017-144	9.0	51	115	45	165	304	29.8		3500	10000	144
ZWMD016017-216	9.0	34	115	30	165	456	44.7		3000	10000	216
ZWMD016017-256	9.0	29	115	25	170	405	39.7	44.1	5000	10000	256	21.4
ZWMD016017-384	9.0	19	115	17	170	608	60		5000	10000	384
ZWMD016017-576	9.0	13	115	11	170	911	89		5000	10000	576
ZWMD016017-864	9.0	9	115	8	170	1367	134		5000	10000	864

above specifications just for reference and customizable according to requirements.

2)Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk
Office automation equipments	CD-ROM, OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, automatic vending machine
Toys and models	radio control model, automatic cruise control, ride-on toy
Medical equipments	blood pressure meter, breath machine
Industrials	air freshener, display, flow control valves
Electric power tools	electric drill, screwdriver
Precision instruments	monitor, optics instruments

Our Services
ODM & OEM
Gearbox design and development
Related technology support

Packaging & Shipping
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.

Company Information
Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
1) Competitive Advantages
18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D , ODM &OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted
Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
2) Main Products
Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.

Certifications
We Have passed to hold ISO9001, ISO14001 and TS16949.
and more...

FAQ
1. Can you make the gearbox with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
Please send an inquiry .
