| Prod Model: |
1kw-6kw(EP3000) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DC AC Inverter: |
PWM Power Invertion Tech with Low Frequency Design |
| AC Nominal: |
220VAC 110VAC |
| DC Nominal: |
12VDC,24VDC,48VDC |
| AC Input Range: |
155-285VAC (100-127VAC) |
| AC Range When Battery In Priority Design: |
180-265VAC |
| Max Charge Current: |
70AMP |
| Charge Method: |
3-Stage Chage Control |
| Battery Protection: |
Over-Charge/Discharge |
| AC In Priority Design: |
155-285VAC with Adjustable Charge Current |
| Optional Communication: |
RS232 + Winpower |
| Type: |
DC/AC Inverters |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Output Power: |
1kw - 6kw |
Product Description
DC to AC Inverter 1kw-6kw lcd display
1. dc to ac inverter in large battery charge current, 70amp max for fast compensate battery discharge
and 3-stage intelligent charge control
full battery protection: over-charge, over-discharge
externally connected SLA battery provide solution via dc-ac inverter when ac blackouts
2. power-saving home power inverter with wide input ac voltage range 155-285v, solving ac-brownout
problem better and avoiding frequently transfer to battery discharge(battery-mode), extending battery
service time
3. Advanced adjustable charge current designed Dc to Ac inverter helps to protect battery better to avoid
unexpected damage from too large charger current.
4. Optional battery in priority design: home inverter in a little narrow input range of 180-265vac
secure home electronics power solution from home inverter power supply
5. Dc to Ac inverter optional RS232 communication interface and winpower software cd finish inverter
communication conveniently, and easily.
RS232 display inverter load status, Ac power status, battery remaining capacity, battery voltage
clearly
6. Dc to Ac inverter optional remote On/Off design finish inverter Turn-on/off conveniently and easily
via a 10 meters effective length data-cable.

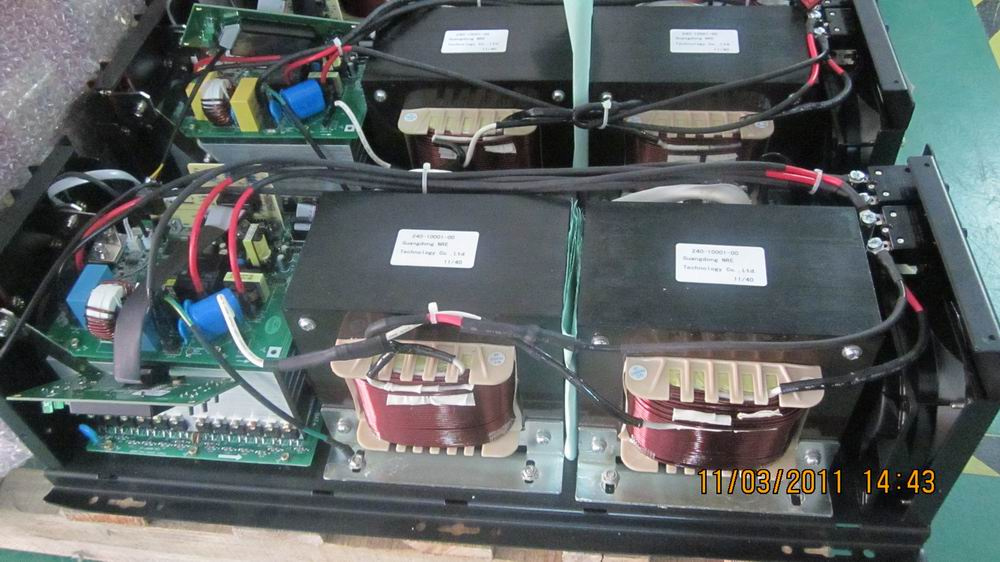

dc to ac inverter 1kw to 3kw electrical view:
home power inverter 4-6kw:
sine wave power inverter Led panel
|
dc to ac inverter |
EP3000 Model |
|
1012E |
1024E |
2012E |
2024E |
3024E |
4048E |
5048E |
6048E |
|
Line Mode Specifications: |
|
Input Voltage Waveform |
Sinusoidal (utility or generator) |
|
Nominal Input Voltage |
230Vac(120VAC selectable) |
|
Low Line Disconnect |
184Vac±4% |
|
Low Line Re-connect |
194Vac ±4% |
|
High Line Disconnect |
265Vac±4% |
|
High Line Re-connect |
255Vac±4% |
|
Max AC Input Voltage |
270Vrms |
|
Nominal Input Frequency |
50Hz/ 60Hz (Auto detection) |
|
Low Line Frequency Re-connect |
58+0.3Hz for 60Hz;48+0.3Hz for 50Hz; |
|
Low Line Frequency Disconnect |
57+0.3Hz for 60Hz;47+0.3Hz for 50Hz; |
|
High Line Frequency Re-connect |
64+0.3Hz for 60Hz;54+0.3Hz for 50Hz; |
|
High Line Frequency Disconnect |
65+0.3Hz for 60Hz;55+0.3Hz for 50Hz; |
|
Output Voltage Waveform |
As same as Input Waveform |
|
Over-Load Protection(SMPSload) |
Circuit breaker |
|
Output Short Circuit Protection |
Circuit breaker |
|
Efficiency (Line Mode) |
>95% |
|
Transfer Switch Rating |
30A |
|
Transfer Time (Ac to Dc) |
10ms (typical) |
|
Transfer Time (Dc to Ac) |
10ms (typical) |
|
Pass through without Battery |
Yes |
|
Max Bypass Overload Current |
30A |
|
Invert Mode Specifications: |
|
Output Voltage Waveform |
Sine wave |
|
Rated Output Power (VA) |
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
|
Rated Output Power (W) |
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
|
Power Factor |
0~1.0 |
|
Nominal Output Voltage (V) |
230Vac |
|
Nominal Output Frequency (Hz) |
50Hz ± 0.3Hz |
|
Auto tracking Main Frequency(Hz) |
Yes (Following Main first connection)50Hz @48-54Hz ;60Hz @58-64Hz |
|
Output Voltage Regulation |
±10% rms |
|
Nominal Efficiency |
>80% |
Over-Load Protection
(SMPS load) |
(110% 150% ±10%: Fault (shutdown output) after 20s; |
|
Surge rating (10s) |
3000VA |
6000VA |
9000VA |
12000VA |
15000 VA |
18000VA |
|
Capable of starting electric motor |
1 HP |
1 HP |
2 HP |
3 HP |
|
Output Short Circuit Protection |
Current limit (Fault after 10s) |
|
Inverter overload Breaker Size |
30A |
30A |
30A |
35A |
50A |
|
Nominal DC Input Voltage |
12V |
24V |
12V |
24V |
24V |
48V |
48V |
|
Min DC start voltage |
10V/20V/40V |
|
Low Battery Alarm |
10.5Vdc ± 0.3Vdc for 12V battery;21.0Vdc ± 0.6Vdc for 24V battery;42.0Vdc ± 0.6Vdc for 48V battery |
|
Low DC input Shut-down |
10.0Vdc ± 0.3Vdc for 12V battery;20.0vdc± 0.6Vdc for 24V battery;40.0Vdc± 0.6Vdc for 48V battery |
|
High DC input Alarm & Fault |
16Vdc ± 0.3Vdc for 12V battery;32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery |
|
High DC input Recovery |
15.5Vdc ± 0.3Vdc for 12V battery;31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery |
|
Power saver |
Load ≤25W (Enabled on "P/S auto" setting of Remote control) |
|
Charge Mode Specifications: |
|
Nominal Input Voltage |
230Vac |
|
Input Voltage Range |
196~243Vac |
|
Nominal Output Voltage |
According to the battery type |
|
Nominal Charge Current |
35A |
35A |
65A |
35A |
45A |
35A |
40A |
50A |
|
Charge Current Regulation |
± 5Adc |
|
Battery initial voltage |
0 –15.7 Vdc (can operate with 0V battery) |
|
Charger Short Circuit Protection |
Circuit breaker |
|
Over Charge Protection |
Bat. V ≥15.7Vdc/31.4Vdc,beeps 0.5s every 1s & fault after 60s |
|
General Specifications |
|
Safety Certification |
CE(EN62040-1) |
|
EMC Classification |
EN62040-2,C2 |
|
Operating Temperature Range |
0°C to 40°C |
|
Storage temperature |
15°C below zero to 60°C |
|
Operation humidity |
5% to 95% |
|
Audible Noise |
60dB max |
|
Cooling |
Forced air, variable speed fan |
|
Size |
1012E/1024E2012/2024E/2048E:381mm*217mm*179mm
3012/3024E/3048E/5024E/5048E/6024E/6048E:461 mm*217mm*179mm |
