| Prod Model: |
EP2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection: |
Discharge, Overcharge, Overload |
| Capacity: |
300W-10000W |
| AC: |
220V/230V |
| DC: |
12V/24V/48V |
| Power Source: |
Electric Power |
| Application: |
Home Theater |
| Phase: |
Single Phase |
| Brand: |
Must |
Product Description

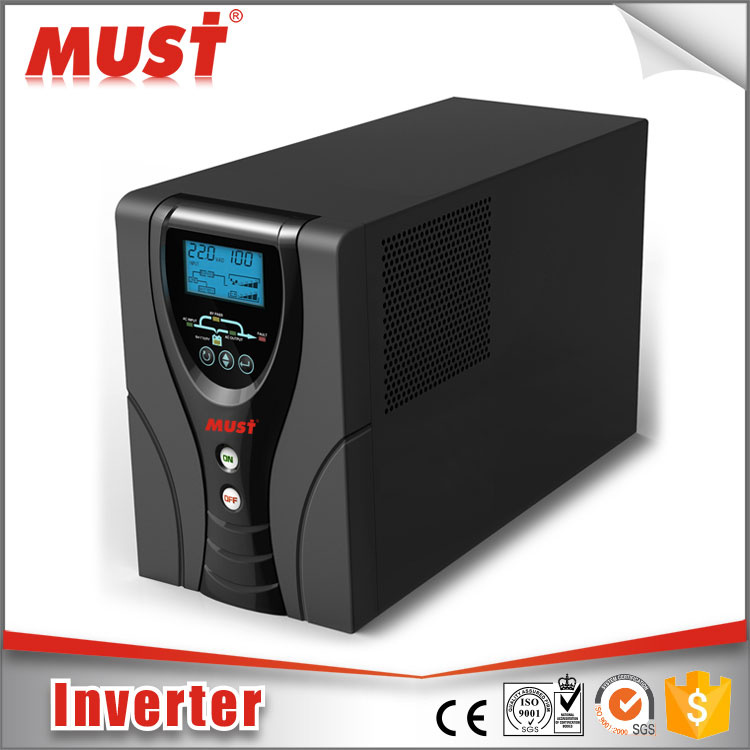

MUST brand Pure Sine Wave Power Inverter 1000W 24V for Personal use
1. Product DetailsFeatures of power inverter EP2000 pro series:
1. Pure sine wave output
2. Low Frequency inverter
3. Wide input voltage range
4. Built in
AVR function 5. With grid charing switch
6. Built-in
Super transformer 7.
Overload and short circuit protection 8. Battery reverse protection (option)

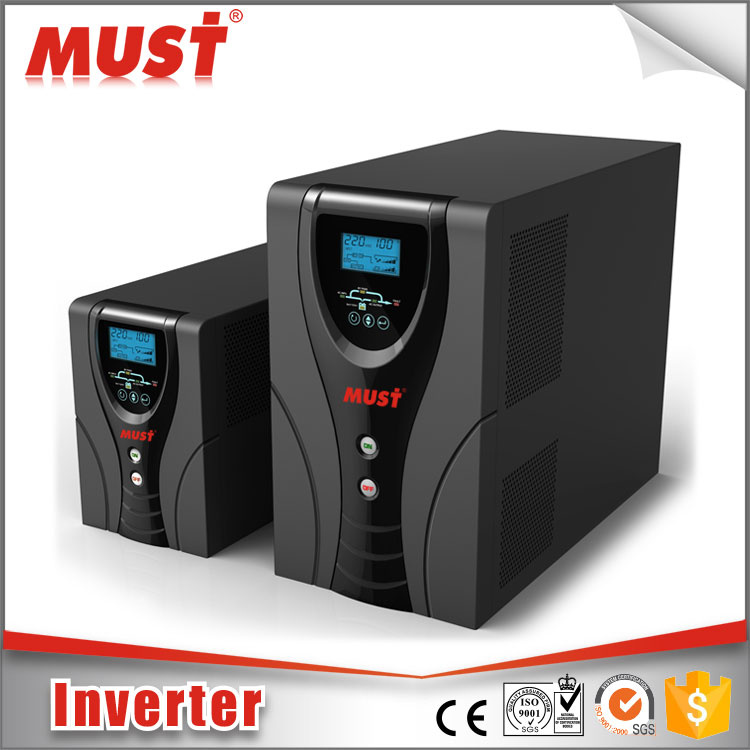

Design of power inverter EP2000 pro series:

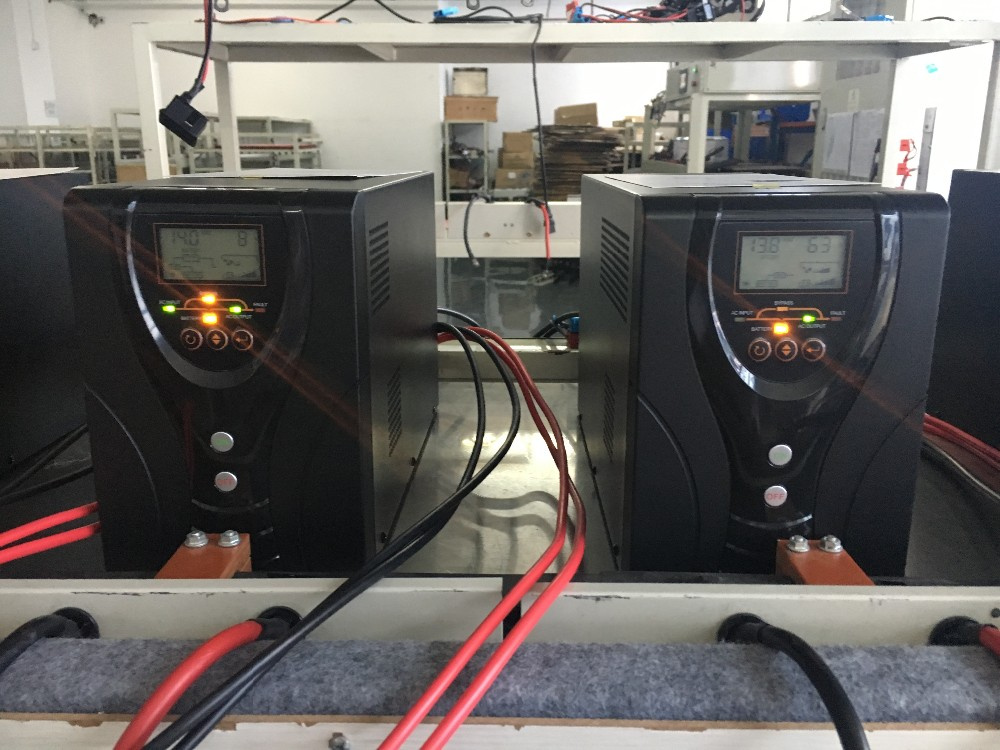

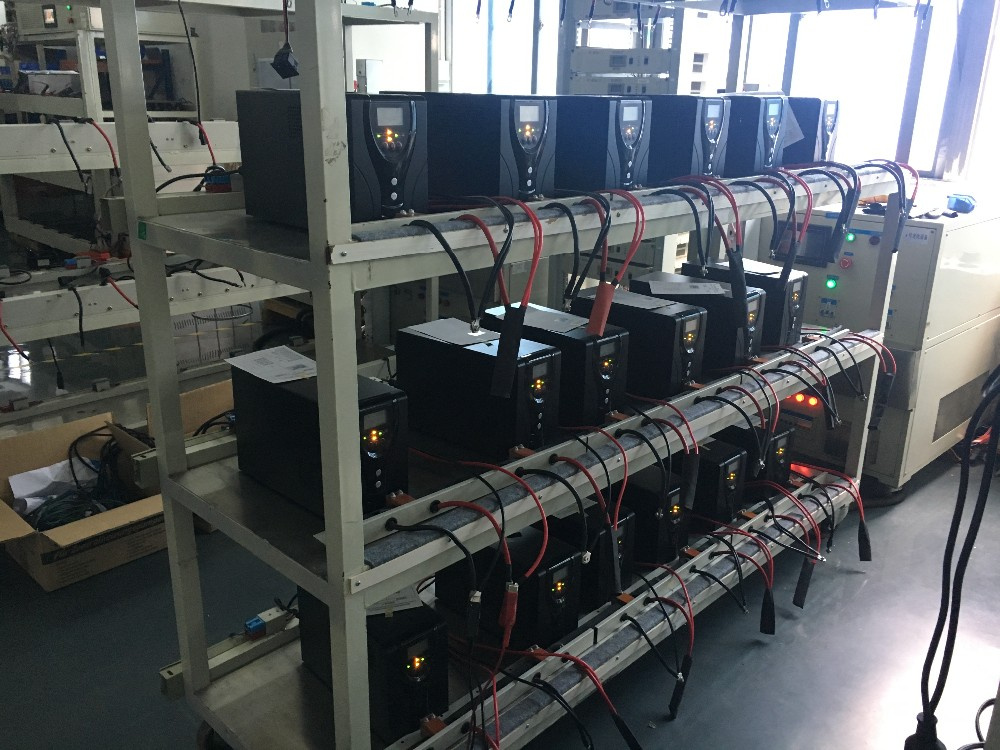

Testing of power inverter EP2000 pro series:
Product Parameters| Model | EP20-0312 Pro | EP20-0612 Pro | EP20-0812 Pro | EP20-1012 Pro | EP20-0324 Pro | EP20-0624 Pro | EP20-0824 Pro | EP20-1024 Pro |
|---|
| Default Battery System Voltage | 12VDC | 24VDC |
| INVERTER OUTPUT |
| Rated Power | 300W | 600W | 800W | 1000W | 300W | 600W | 800W | 1000W |
| Surge Rating(20ms) | 900W | 1800W | 2400W | 3000W | 900W | 1800W | 2400W | 3000W |
| Waveform | Pure Sine Wave |
| Rated Output Voltage | Inverter:230VAC(+/-2% RMS), AVR:195VAC-245VAC |
| Output Frequency | 50Hz/60Hz +/-0.2Hz |
| Inverter Efficiency(Peak) | >75% | >81% |
| Bypass Efficiency | >95% |
| Output Transfer Time | Typical:6ms 10ms(max) |
| AC INPUT |
| Voltage | 220/230/240VAC |
| Selectable Voltage Range | 140~280VAC+/-2% |
| Low Battery Alarm | 140VAC+/-2% |
| Low Voltage Recover | 150VAC+/-2% |
| High Battery Alarm | 280VAC+/-2% |
| High Voltage Recover | 270VAC+/-2% |
| Low Frequency Alarm | 45+/-0.2Hz |
| Low Frequency Recover | 46+/-0.2Hz |
| High Frequency Alarm | 65+/-0.2Hz |
| High Frequency Recover | 64+/-0.2Hz |
| Norminal Input Range | 50Hz/60Hz +/-0.2Hz |
| AC Auto Restart | YES |
| BATTERY |
| Minimum Start Voltage | Low Battery Voltage Cutoff+0.5V | Low Battery Voltage Cutoff+0.5V |
| Low Battery Alarm | Low Battery Voltage Cutoff+0.5V | Low Battery Voltage Cutoff+1.0V |
| Low Battery Cutoff | 10-12.0VDC | 20.0-24.0VDC |
| High Battery Cutoff | Nominal Voltage+0.5V | Nominal Voltage+1.0V |
| AC CHARGE |
| Floating Voltage | 13.5 /13.6/ 13.7VDC | 27.0/ 27.2 /27.4VDC |
| Nominal Voltage | 13.8~14.5V | 27.6~29V |
| Maximum Charge Current | 300W | 600W | 800W | 1000W | 300W | 600W | 800W | 1000W |
| 10A | 20A | 25A | 30A | 5A | 10A | 15A | 15A |
| BYPASS & PROTECTION |
| Input Waveform | Pure Sine Wave |
| Input Frequency | 50Hz or 60Hz |
| Low Frequency Trip | 45+/-0.2Hz |
| Low Frequency Trip | 65+/-0.2Hz |
| Overload Protection | 110%~125%R Load fault after 30S; 125% ~150%R Load fault after 3s ;>150%R Load fault after 500ms |
| Over Temperature Protection | >90ºC |
| Bypass Output Protection | 10A 250VAC |
| Output Circuit protection | YES |
| Battery Reverse Protection | Optional |
| Battery Low Voltage Protection | YES |
| Battery High Voltage Protection | YES |
| Bypass Breaker Rating | 10A |
| Maximum Bypass Current | 10 |
Company Introduction
FAQFrequency Asked Questions:
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
