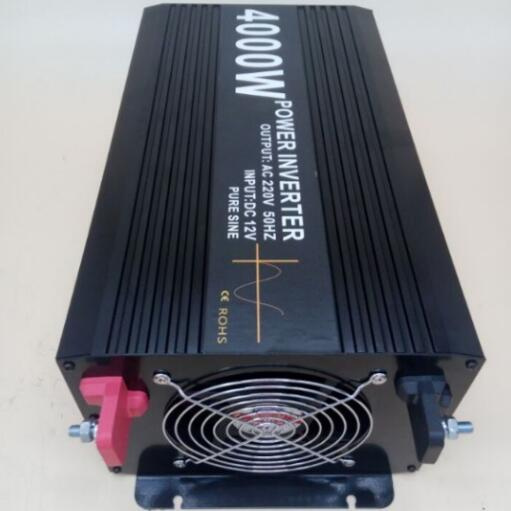

DC to AC Pure & Modified Sine Wave Inverter (4000W-12-220V)

Name: DC to AC Pure & Modified Sine Wave Inverter (4000W-12-220V)
Brand: all-electronics-online.com
SKU: 733307832
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	US $ 230-366/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	4000W-12-220V
Input Voltage:	DC 12V
Output Voltage:	AC220
OEM:	Available

Product Description

High quality DC-AC pure Modified Sine Wave Power Inverter

Items	Pure sine 4000W-12V	Modified sine 4000W-12V
Work voltage range	10-15VDC	10-15VDC
No-load input current	<=1A	<=1A
Low voltage alarm range	10.5±0.5VDC	10.5±0.5VDC
Low voltage close range	10±0.5VDC	10±0.5VDC
Output voltage	220VAC	220VAC
Rated power	4000W	4000W
Peak power	8000W	8000W
Output waveform	PURE Sine Wave Inverter	Modified Sine Wave Inverter
(THD)Distoration rate	<=3%	<=3%
Output voltage range	240VAC±0.5Hz	240VAC±0.5Hz
Output frequency range	50HZ±0.5Hz	50HZ±0.5Hz
Input stage reverse	FUSE	FUSE
Output stage short circuit	YES	YES
Output overload range	110%~120% of rated power	110%~120% of rated power
Product over temperature	75~85ºC	75~85ºC
Input and output grade	Completely isolated	Completely isolated
Full load work efficiency	>=90%	>=90%
temperature	+25ºC/environmental temperat	+25ºC/environmental temperat
On/off mode	Manual I/O switch	Manual I/O switch
Cooling mode	Load control auto cooling fan	Load control auto cooling fan
Work temperature	'-10~+50ºC	'-10~+50ºC
Safety approval	CE/ROHS	CE/ROHS
Size	400200150mm	28016585mm(**)
(N.W)	10KG	3.5KG
(G.W)	12KG	4.5kg
