DC to AC Single Phase SSR Solid State Relays (SSR-40AA)

Name: DC to AC Single Phase SSR Solid State Relays (SSR-40AA)
Brand: all-electronics-online.com
SKU: 729115242
Availability: InStock
Rating: 4.8 (85 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NM-1-DA48 10-120(SSR-DA)

Product Description

Solid State Relay Model No. : XSSR-DA
Input and output electro-optic isolation or transformer isolation;
input constant current control and LED display , contril signal and TTL & CMOS logic is compatible;
Bidirectional controlled sillion or unidirectional controllable counter-parallel output , zero electric current shutdown;
Power solid state uses the SCR chip counter-parallel output and working is stable ;
Buit-in resistance-capacitance absorbing ciruit, dead zone voltage between the input output and l;edger wall's;
Small volume,small input power , non-contact , sparkless , noiseless , non-machinery wear , anti-vibration and the long life

Control voltage	3-32VDC	80-250VAC
Control vurrent	6-25mA	5-25mA
Reverse voltage	32VDC	/
Guarantee colse voltage	1VDC	30VAC
Guarantee open voltage	3VDC	80VAC
Load voltage	24-240VAC 70-480VAC
Load max current	10-100A
Load min current	0.05A
Breakover voltage	≤2VAC
Output leakage current	≤5mA
Medium with stand voltage	≥2500VAC
Insulating resistance	≥100MΩ
Switching time	≤10ms
freuquency range	50-60Hz
Operating temperature	-20-70ºC
load current safety factor	Resistive load 50-60%
	Inductive load30-40%

FAQ

: Are you manufacturer?
A: Yes, we are manufacturer and produce diode, thyristor, power modules, bridge rectifier and heatsink with best quality and competitive price.

Q: Can I customize products as our requirement from your company?
A: Certainly, we have our own design team, they are willing to do it for you

Q: Could I put my own logo on it?
A: Sure, as long as you are willing to offer it.

Q: Could I buy 1 pc or small quantities order?
A: Of course. We support 1 pc or small quantities order, especially for new customers.

Q: How much for the sample?
A: Some samples can be for free, but shipping cost should discuss with each other.

Q: What's the payment terms?
A: We can accept T/T, Western Union and Paypal.

Q: How long is your delivery time?
A: In general, about 6-8 working days after received your payment.

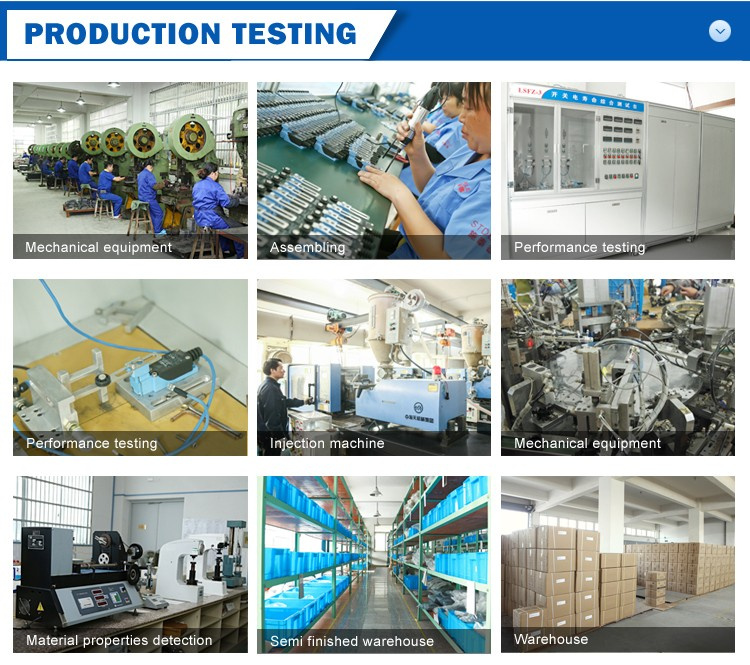

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
