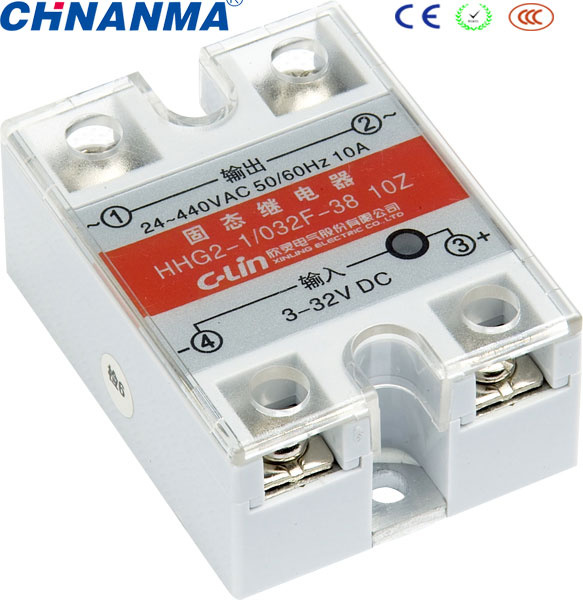

DC to AC Solid State Relay 220VAC 10A

Name: DC to AC Solid State Relay 220VAC 10A
Brand: all-electronics-online.com
SKU: 769302255
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	US $ 2.0-3.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHG2-1/250F-38 10-80A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operational Current:	10 to 40 AMPS
Operational Voltage:	240V or 440V
Color:	White
Dielectric Strength:	1500VAC
Control Current:	6-35mA
Ambient Temp.:	-30centigrade~+80 Centigr
Warranty Period:	1 and Half Year

Product Description

DC to ACSolid State Relay 220VAC 10A

Products Introduction:

1. Single phase

2. Removable protection cover available

3. AC Control voltage

4. Full range load current from 10A to 100A

5. High reliability
Relay widely used in the fast switching of small AC areas, with a high dielectric strength of 2500V.

Technical Specification:

1. VR: 470Kohm/2W, output 380VAC 60A

2. Size: 58mm*45mm*28mm

3. High reliability

Product Description
LSSR Series is one phase industrial solid state relay widely used in many industrial areas, the input control voltage is 4-32VDC or 90VAC-280VAC, with full range rated load current from 10A to 100A and multiple load voltage 240VDC, 380VDC, 480VDC or 600VDC.
Model Ordering Information
Load Current	10A	15A	20A	25A	40A
DC:4-32V	LSSR-D380A10Z	LSSR-D380A15Z	LSSR-D380A20Z	LSSR-D380A25Z	LSSR-D380A40Z
AC:90-280V	LSSR-A380A10Z	LSSR-A380A15Z	LSSR-A380A20Z	LSSR-A380A25Z	LSSR-A380A40Z
Load Current	50A	60A	70A	80A	100A
DC:4-32V	LSSR-D380A50Z	LSSR-D380A60Z	LSSR-D380A70Z	LSSR-D380A80Z	LSSR-D380A100Z
AC:90-280V	LSSR-A380A50Z	LSSR-A380A60Z	LSSR-A380A70Z	LSSR-A380A80Z	LSSR-A380A100Z
Technical Specification
Input Data
Input Voltage Type		DC Input		AC Input
Control Voltage Range		4-32VDC		90-280VAC
Minimum Turn-On Voltage		4VDC		90VAC
Minimum Turn-Off Voltage		1VDC		10VAC
Maximum Control Current		25mA		10mA
Control Method			Zero cross trigger
Output Data
Input Voltage Type		DC Input		AC Input
Load Voltage Range			48-440VAC
Frequency Range			47Hz to 63Hz
Maximum Turn-On Time		1/2AC Cycle + 1mS		20mS

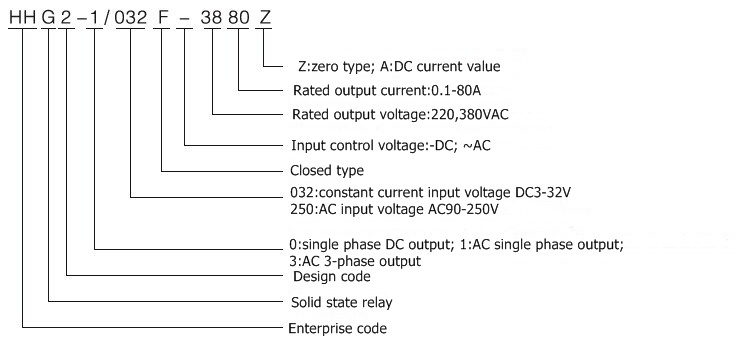

Model Explanation

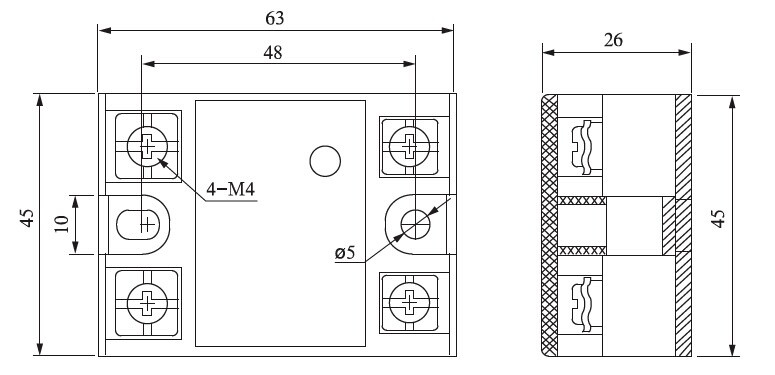

Outline Dimension

Notes for Inquiry

Please specify the control voltage, load voltage, and load current so that we can quote for you soon.
