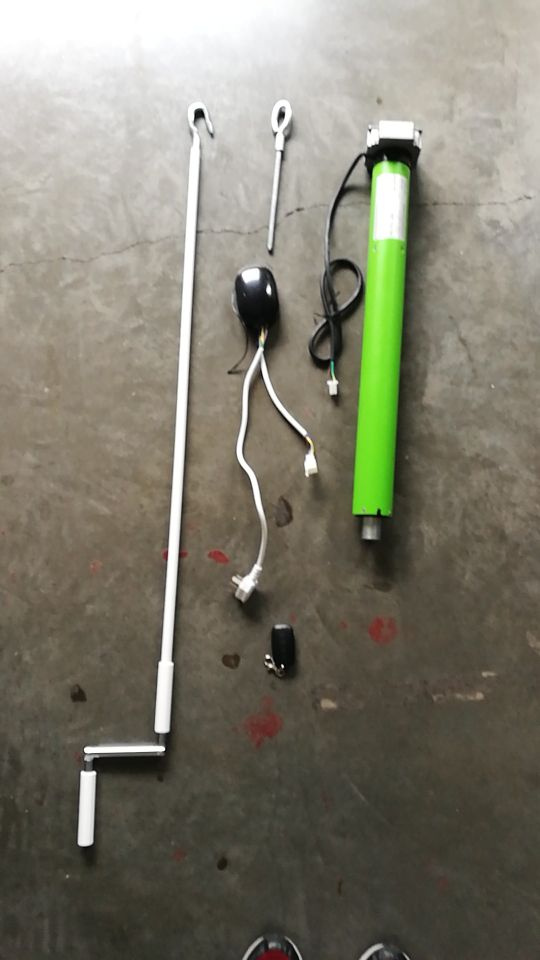

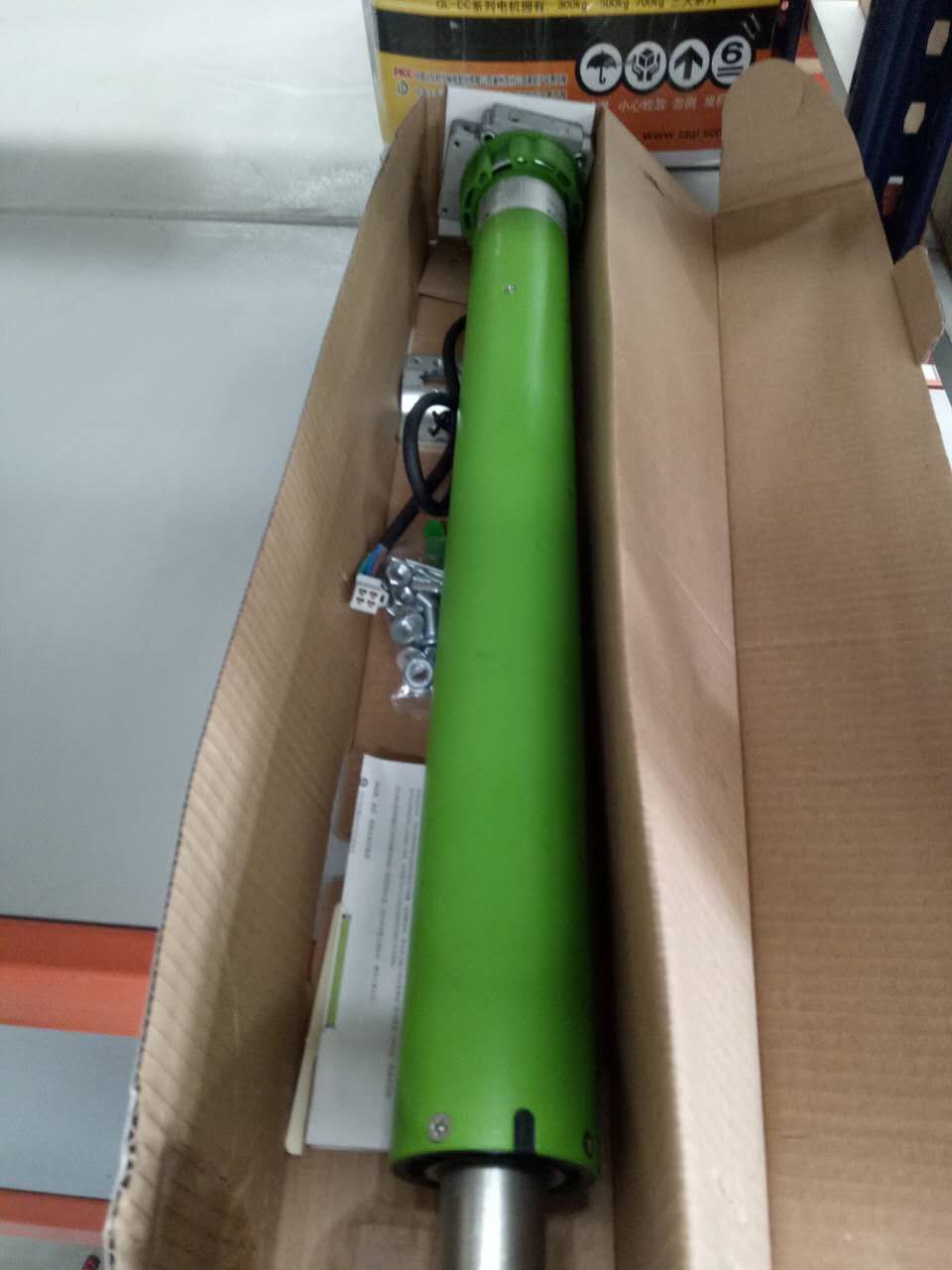

DC Tubular Motor with Mechanic Limit

DC Tubular Motor with Mechanic Limit
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: SM25DS
Color: White,Green,Grey
Application: Household Appliances
Operating Speed: Low Speed
Structure And Working Principle: Wired
Brand: Shinilion

Product Description

Specification of DC Tubular Motor with  Mechanic Limit/Standard:
DC motor is allowed to work for longer time without thermal protection limit
Technical Data:
ModelSM25DS
TypeDC Electronic Radio
Rated Torque0.7 N.m
Rated Speed34rpm

Tube Diameter25mm
Rate Voltage12V/24V
Rated Power9W
Rated Current0.76A
Degree of ProtectionIP44
Max Number of Turns25 turn
L1/L2283/273mm


Use for Roller Shutter
Techinique: battery system & solor energy system
Product Certificate: CE, RoHS,CCC, ISO9001
Suitable Adapter: DC212(12V motor); DC214(24V motor)
                             input: 100-240V AC 0.5A 50/60Hz
                             output: 12V-1.2A (12V motor)
                                           24V-0.5A (24V motor)
Standard Configuration: 12V/24V~ White Wire & Blue/White Wire











No. 1 Professional roller shutters and tubular motors manufacturer in China!

No. 1 Professional roller shutters, rolling doors and tubular motors factory in China!

Ten Years experience in roller shutters and tubular motors!

Established in 2001, Hunan Shinilion Science & Technology Co., Ltd. is a private enterprise specializes in aluminium roller shutters and rolling doors.

As an all-around enterprise with the import & export right in China, we professionally produce and sell the following products:

1) Aluminium roller shutters, roller doors

2) Roller shutters and roller doors aluminum profiles (extrusion)

3) Tubular motors & other door operators

4) Sectional garage door & other automatic doors

5) Awnings (sunshades)

6) Construction hardware (locks, hinges, handles etc. )

7) Remote contorl for roller shutter door and window, awnings.

Covering an area of more than 50, 000 square meters, we now have about 500 employees. We have passed the the test of ISO9001: 2008 qualification certification and ISO14001: 2004 management certification, and our motors are CE, TUV, CB, RoHS, CCC approved.

With market as leading directions, high quality products, fine processing, perfect technology supporting and excellent service, we are making great effort to improve city building levels and create wonderful life together with our vast users.

If you are interested in any of our products, please feel free to contact us for more details. We hope to establish business relationships with both domestic and overseas clients in the near future. We are looking forward to receiving your inquiries.
