| Prod Model: |
DC100-12 |
| Color: |
Red |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar Power System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

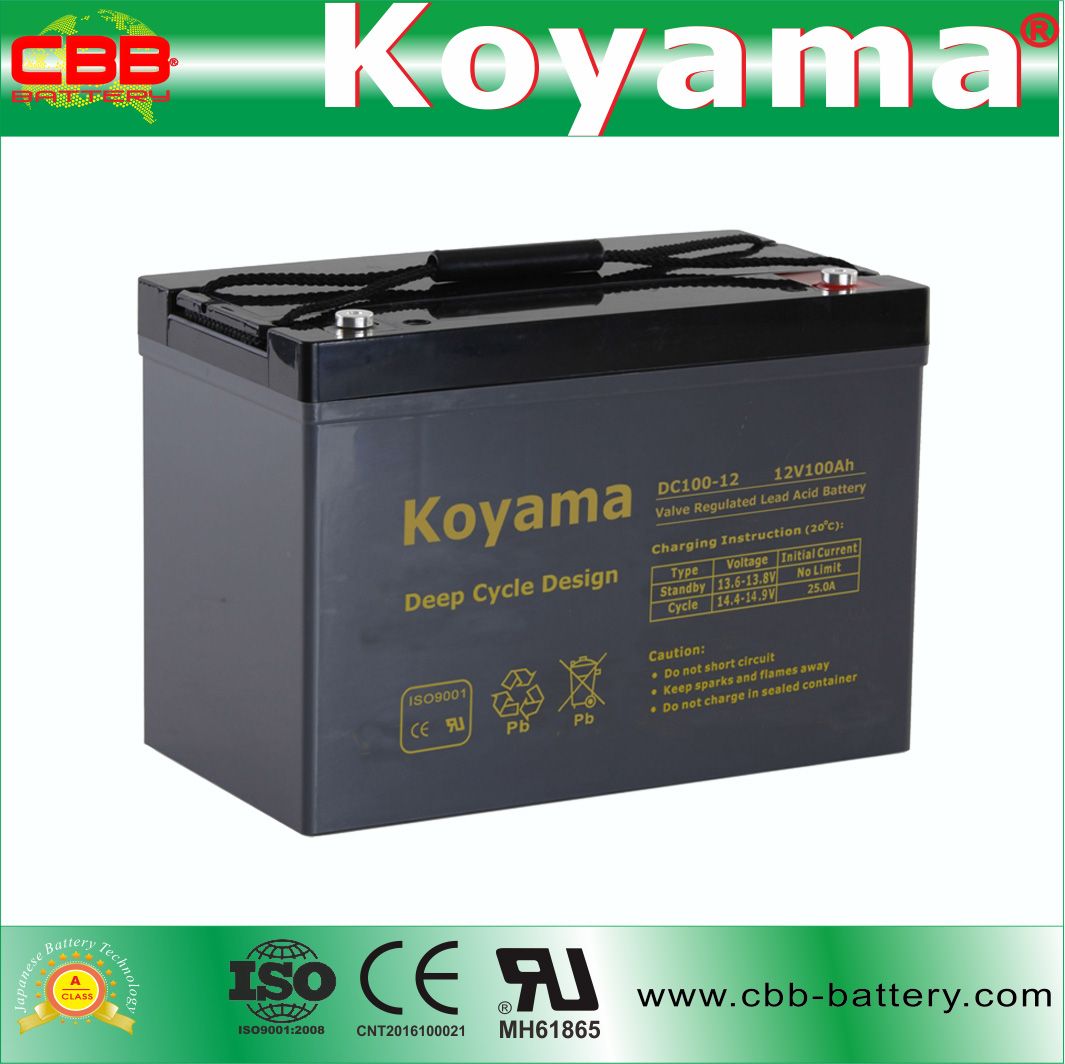

100ah 12V AGM deep cycle battery
100ah 12V marine battery
100ah 12V motor home battery
100ah electric vehicle battery
100ah 12V golf cart battery
Specifications
Deep cycle battery
Supper deep cycle design
-Superior Deep Cycle Design
-High Power Density
DC100-12---100ah, 12V
Model No: DC100-12
Rated Voltage(V) 12
Capacity (Ah) 100
Dimension: 307*169*211*216 mm
Weight: 30.5 kg
Terminal T3
Koyama DC Series Deep Cycle AGM Batteriesare specifically designed with revolutionary heavy duty plate AGM technology with high percentage tin alloyed. Batteries are ideal for applications that require sealed batteries with heavy duty cyclic capability or for backup power & storage. They are recommended for motive power applications.
EXTRA FEATURES
-Superior Deep Cycle Design
-High Power Density
-Thick Plates and High-density
-Active Material
DEEP CYCLE APPLICATIONS
- Golf/NEV/Utility Vehicles
-Aerial Work Platforms/Access
- Floor Machine
- Material Handings
-Renewable Energy Systems
-Backup power
Lead time: 20-30day after getting payment
Warranty: 2 years
Design life: 8-10years
Certificates: ISO, CE, UL
We are one of the leading manufacturers of Deep Cycle batteries for more than 20 years in Guangdong, China. All batteries are excellent quality, well recognizing worldwide and with reasonable Prices. Any inquiries or query would be replied at the earliest date.
| DC Series-AGM Batteries for Deep Cycle Services | | |
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg |
| mm | mm | mm | mm |
| DC200-6 | 6 | 200 | 306 | 168 | 220 | 222 | 30.5 | T5 |
| DC210-6 | 6 | 210 | 260 | 180 | 247 | 249 | 30 | T5 |
| DC220-6 | 6 | 220 | 306 | 168 | 220 | 222 | 32.0 | T5 |
| DC225-6 | 6 | 225 | 243 | 187 | 275 | 275 | 31.5 | T5 |
| DC310-6 | 6 | 310 | 295 | 178 | 354 | 360 | 46.0 | T5/T6 |
| DC330-6 | 6 | 310 | 295 | 178 | 354 | 360 | 46.6 | T5/T6 |
| DC380-6 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 | T5/T6 |
| DC420-6 | 6 | 420 | 295 | 178 | 404 | 410 | 57 | T5/T6 |
| DC200-8 | 8 | 200 | 260 | 182 | 295 | 301 | 39.5 | T5 |
| DC14-12 | 12 | 14 | 152 | 99 | 96 | 102 | 4.1 | F1/F2 |
| DC20-12 | 12 | 20 | 181 | 77 | 167 | 167 | 6.1 | T1/L1 |
| DC24-12 | 12 | 24 | 166 | 175 | 126 | 126 | 8.5 | T1 |
| DC26-12 | 12 | 26 | 165 | 126 | 174 | 174 | 9.0 | T2 |
| DC35-12 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 | T3 |
| DC40-12 | 12 | 40 | 198 | 166 | 174 | 174 | 14.5 | T3 |
| DC55-12 | 12 | 55 | 229 | 138 | 208 | 212 | 16.8 | T3 |
| DC70-12 | 12 | 70 | 350 | 167 | 178 | 178 | 23.5 | T3 |
| DC75-12 | 12 | 75 | 260 | 169 | 211 | 215 | 25 | T3 |
| DC85-12 | 12 | 85 | 260 | 169 | 211 | 215 | 26.1 | T3 |
| DC90-12 | 12 | 90 | 307 | 169 | 211 | 216 | 28.5 | T3 |
| DC100-12 | 12 | 100 | 307 | 169 | 211 | 216 | 30.5 | T3 |
| DC110-12 | 12 | 110 | 331 | 174 | 214 | 220 | 33.5 | T4 |
| DC120-12 | 12 | 120 | 407 | 173 | 210 | 233 | 39.5 | T5 |
| DC135-12 | 12 | 135 | 341 | 173 | 283 | 289 | 41.5 | T5 |
| DC150-12 | 12 | 150 | 484 | 171 | 241 | 241 | 46.0 | T4 |
| DC180-12 | 12 | 180 | 532 | 206 | 216 | 222 | 56 | T4 |
| DC200-12 | 12 | 200 | 532 | 206 | 216 | 222 | 58.8 | T4 |
| DC210-12 | 12 | 210 | 522 | 240 | 219 | 225 | 66 | T5 |
| DC240-12 | 12 | 240 | 520 | 269 | 203 | 209 | 71.0 | T5 |
| DC260-12 | 12 | 260 | 520 | 268 | 220 | 226 | 77 | T5
|
